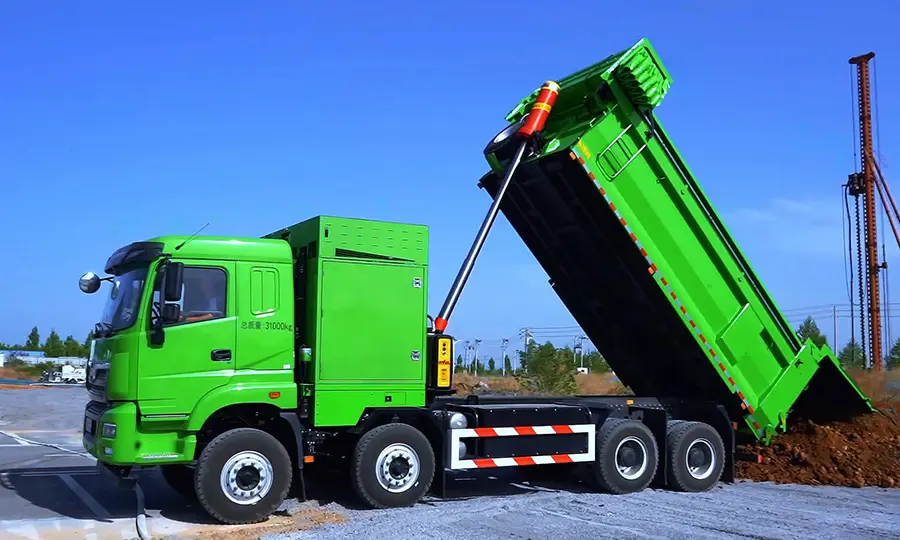

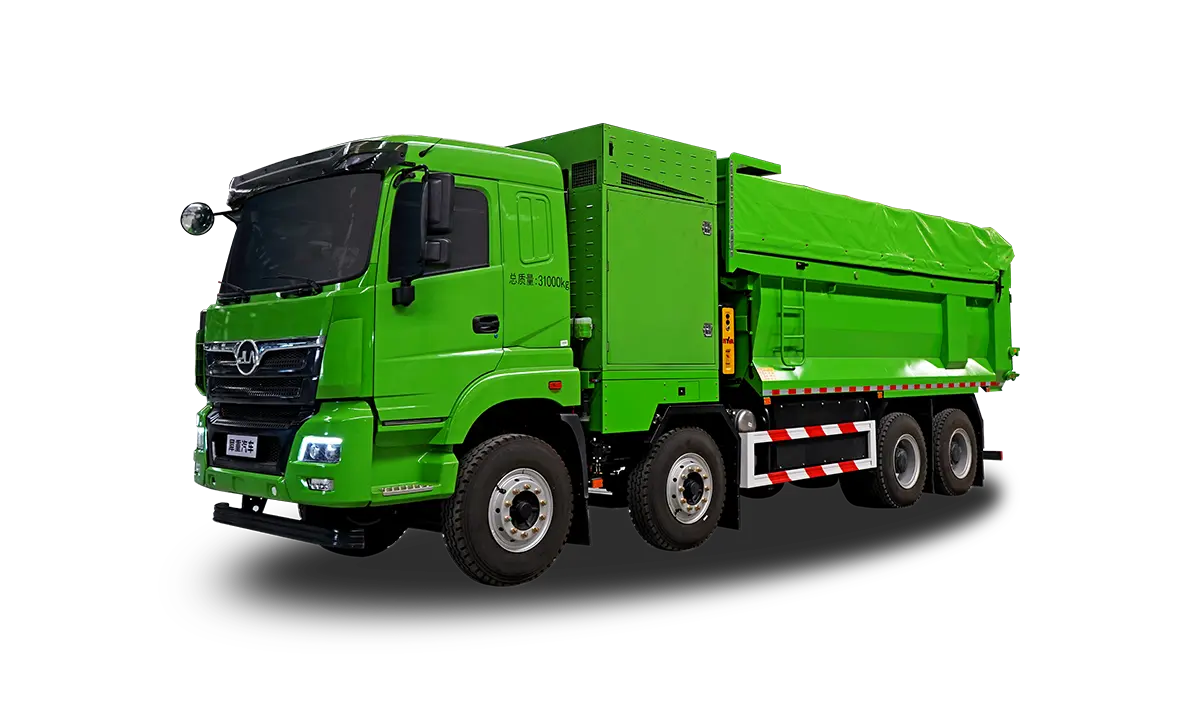

31T Hydrogen Fuel Dump Truck

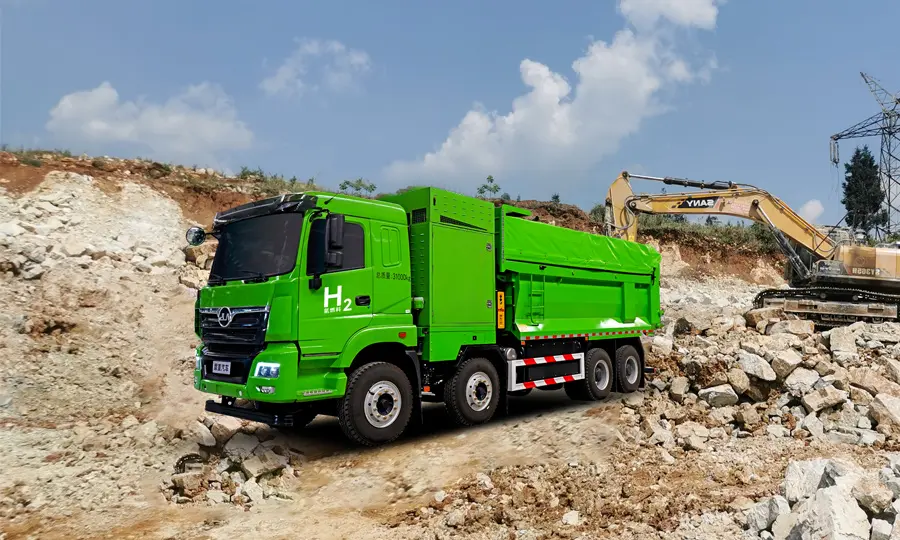

The Seazon Motor’s hydrogen fuel cell dump trucks can be widely used in urban construction muck, highway sand and gravel and other scene conditions.
-
Dual circuit pneumatic braking
Brake system
-
5600x2350x1500/1200/1000/800
Container size
-

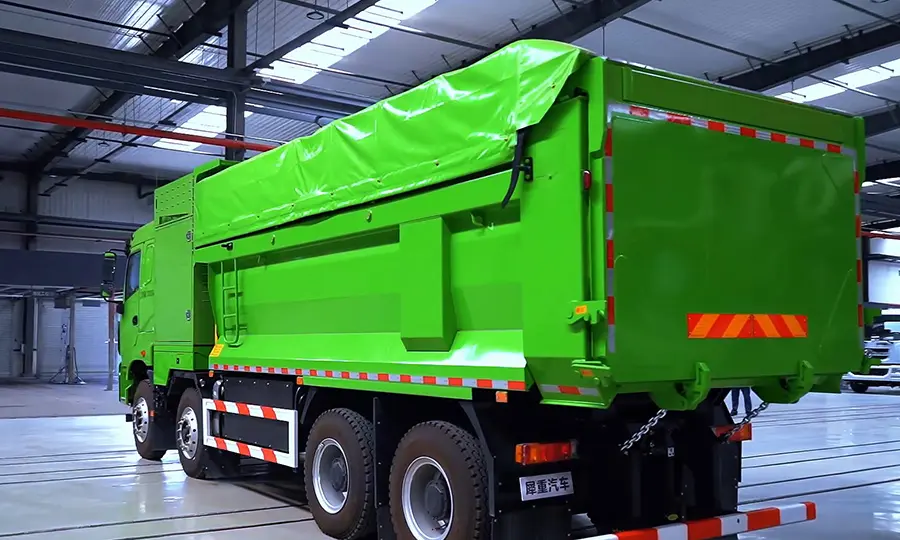

Electric arch bar retractable truck cover
Top cover form

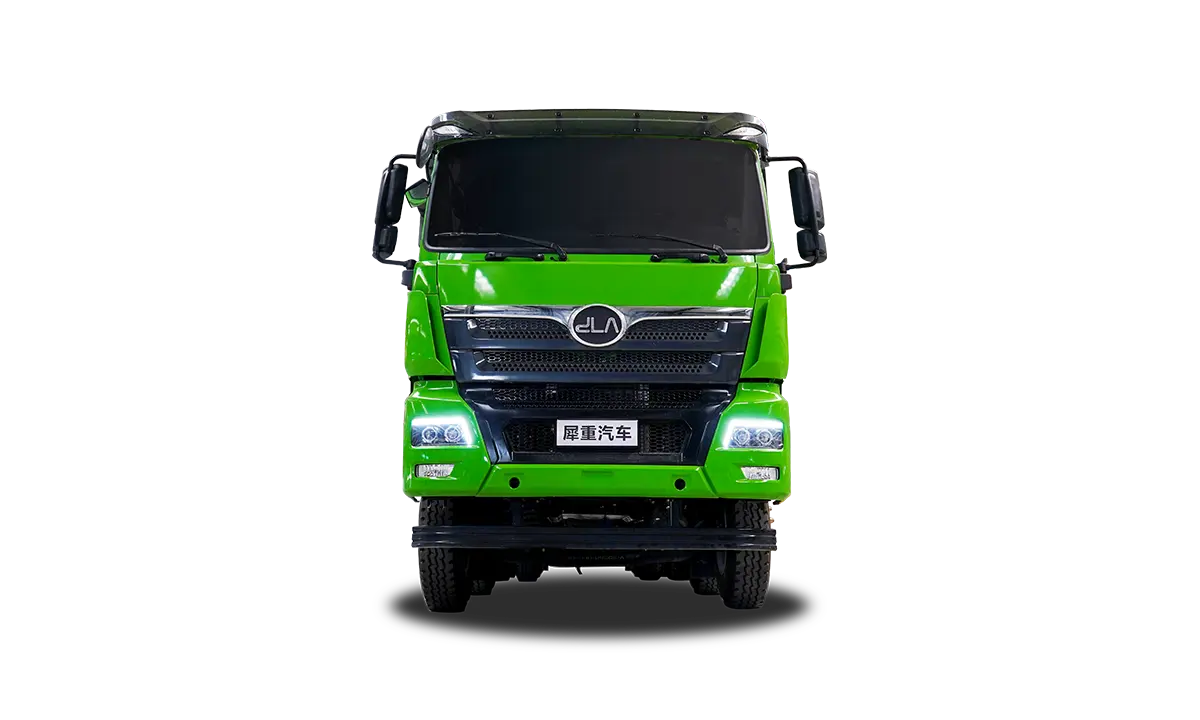

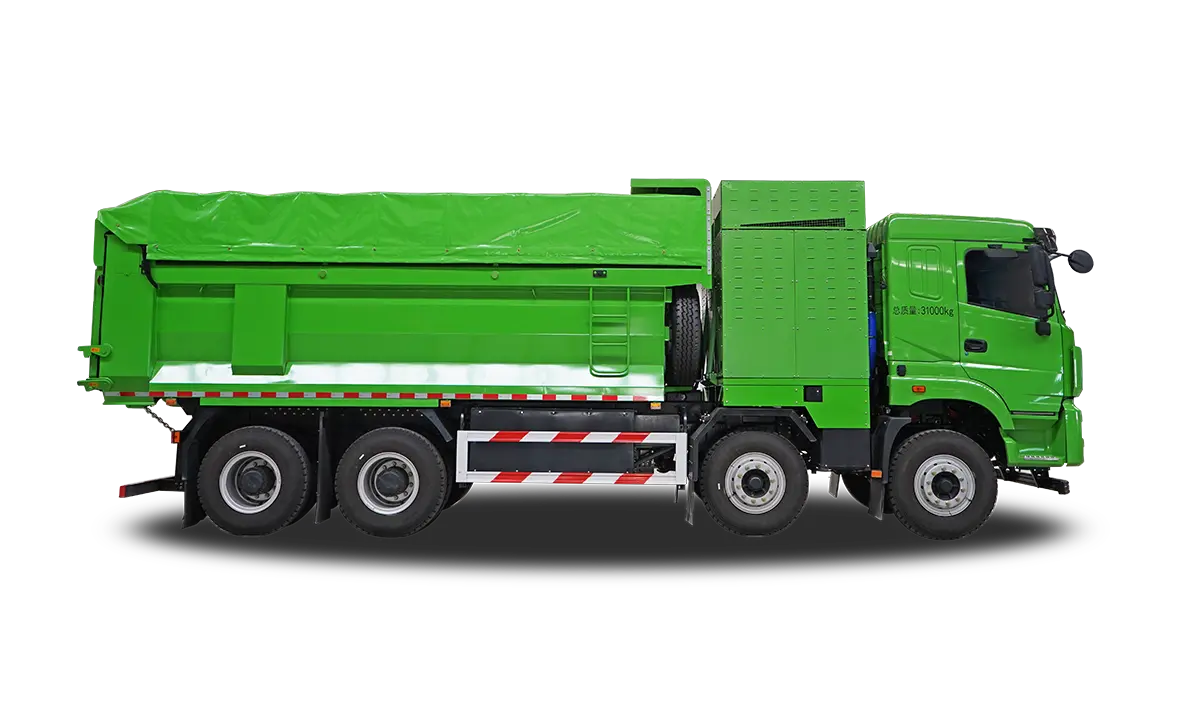

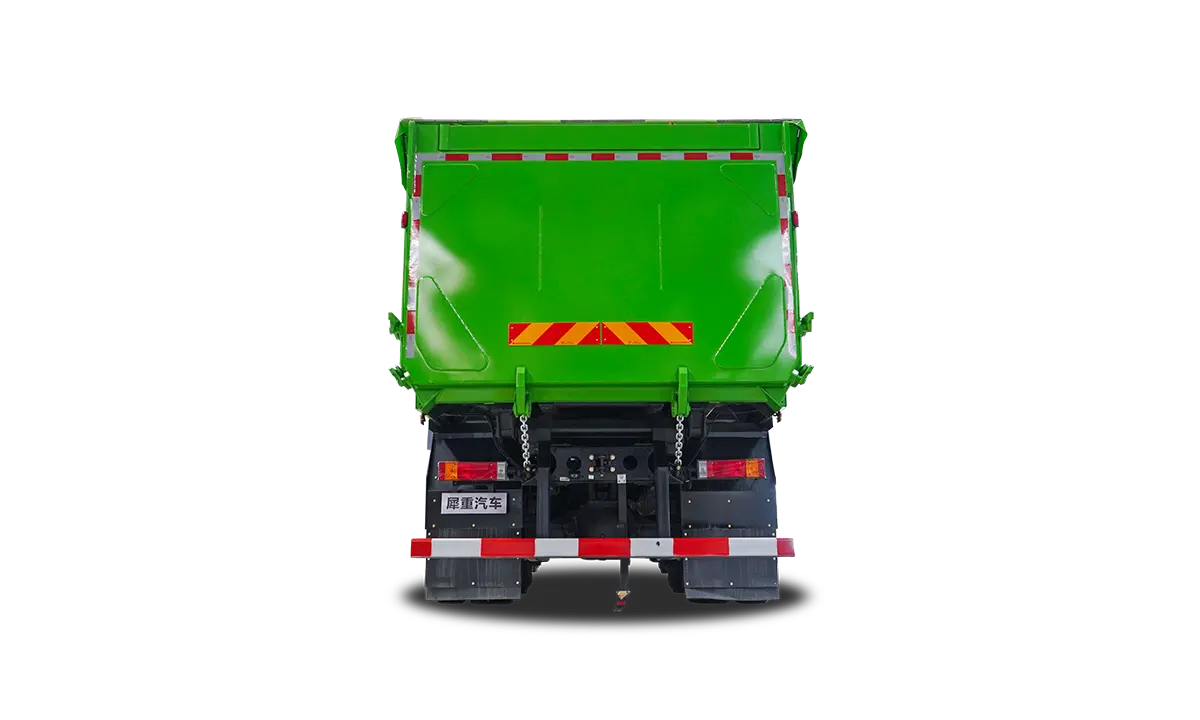

Vehicle appearance
Product introduction
The Seazon Motor’s hydrogen fuel cell dump trucks can be widely used in urban construction muck, highway sand and gravel and other scene conditions.
Product features
-
Energy-efficient and long-lasting battery life
The measured battery life is 50%-100% higher than that of battery vehicles of the same type.
-
Artificial intelligence and comfort driving
Seazon Motor’s feature of Internet of Vehicles can monitor vehicle status in real time and has remote fault diagnosis functions.
-
Safe and reliable operation without worry
Intelligent configurations such as anti-collision warning and lane departure warning effectively ensure driving safety.
-
High load bearing and large loading capacity
The container is made of NM450 wear-resistant steel, which is capable of heavy load.
Configuration parameters
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 10000x2550x3550 |
| Wheelbase (mm) | 1850+3600+1350 |
| Maximum/curb weight (kg) | 31000/19000 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥40 |
| Endurance mileage (km) | 350 |
| Power system | |
|---|---|
| Power battery (kWh) | 117.46 |
| Hydrogen capacity | 9x210 |
| Hydrogen fuel cell power | 130 |
| Motor rated/peak power (kW) | 220/400 |
| Transmission | AMT |
| Operating ability | |
|---|---|
| Brake system | Dual circuit pneumatic braking |
| Container size | 5600x2350x1500/1200/1000/800 |
| Top cover form | Electric arch bar retractable truck cover |
| Drive system | Central direct drive |
| Minimum turning diameter (m) | ≤10.6 |
| Minimum ground clearance (mm) | 255 |
Note: The product introduction should be as detailed as possible on the basis of available information. Seazon Motor Co., Ltd. reserves the right to modify and adjust the product parameters, configurations, materials, colors, and other information on the model at any time. Therefore, the product introduction is for reference purposes only, and the appearance, configuration, color, and other specifics of actual vehicles sold may vary.
If you need to purchase a vehicle, please contact us.
