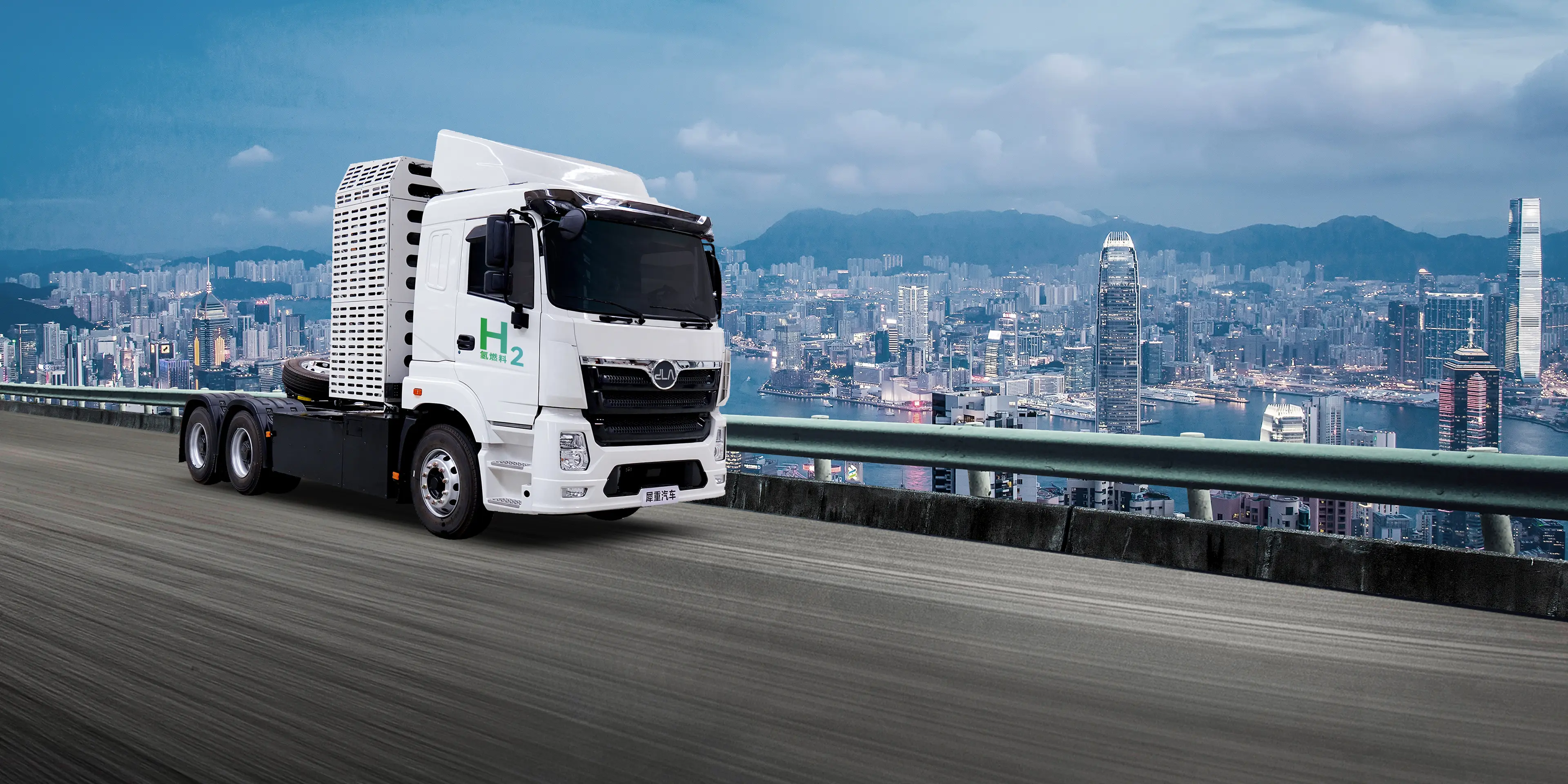

25T Hydrogen Fuel Tow Tractor
The Seazon Motor’s hydrogen fuel cell tow tractors can be widely used for bulk material transportation within or between cities.
-
Dual circuit pneumatic braking
Brake system
-
250
Minimum ground clearance (mm)
-
integrated electric drive axle
Drive axle

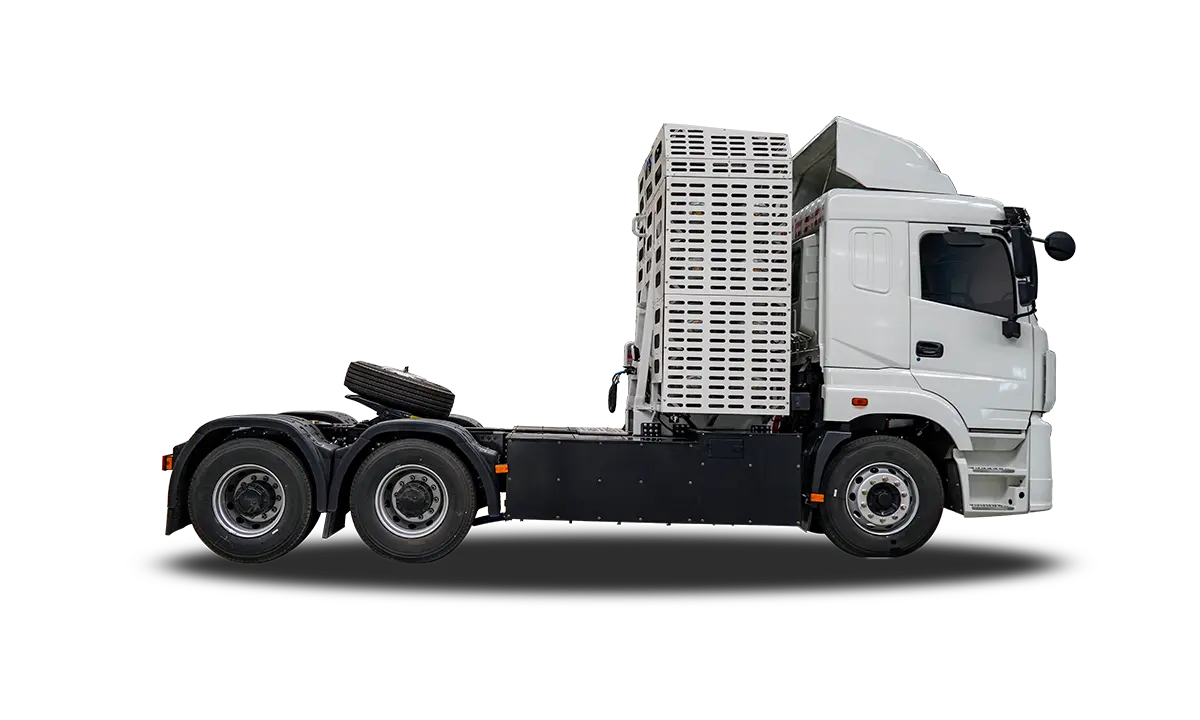

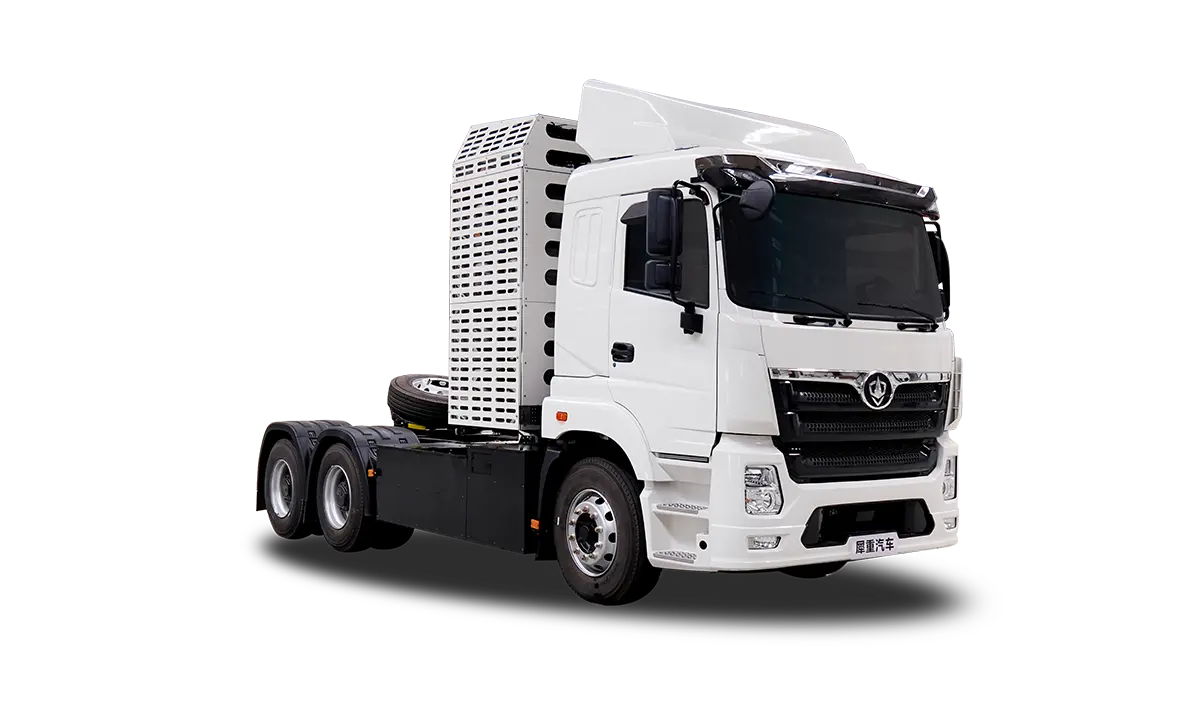

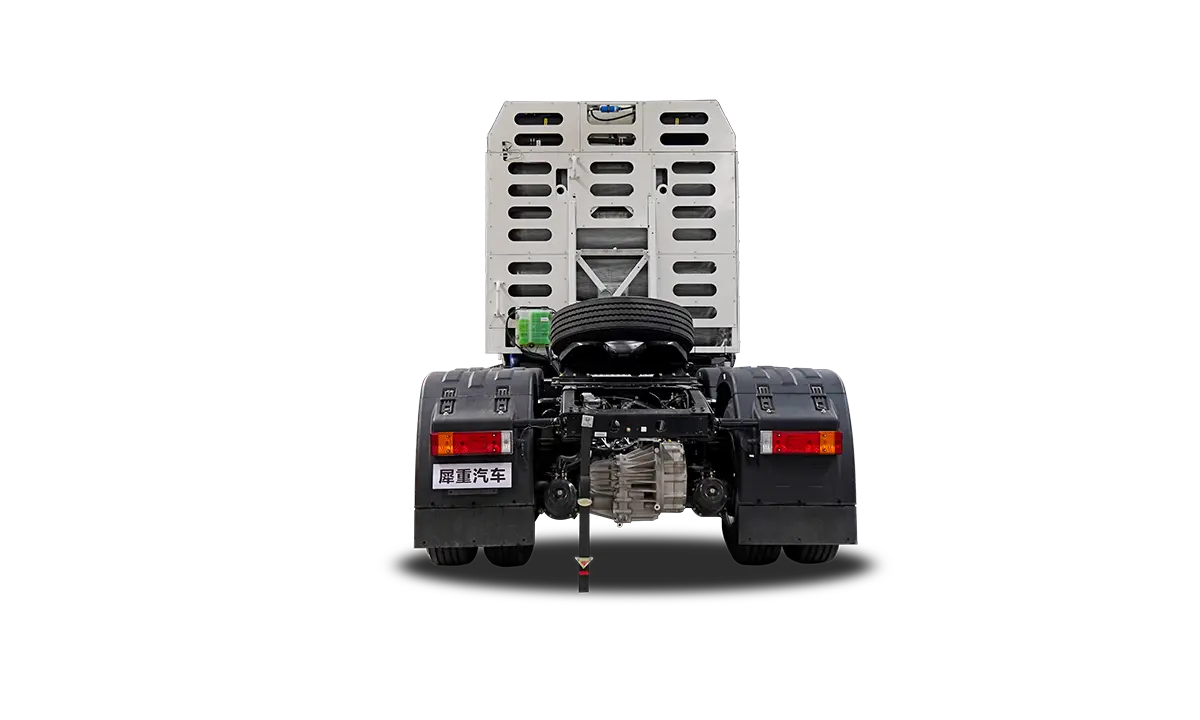

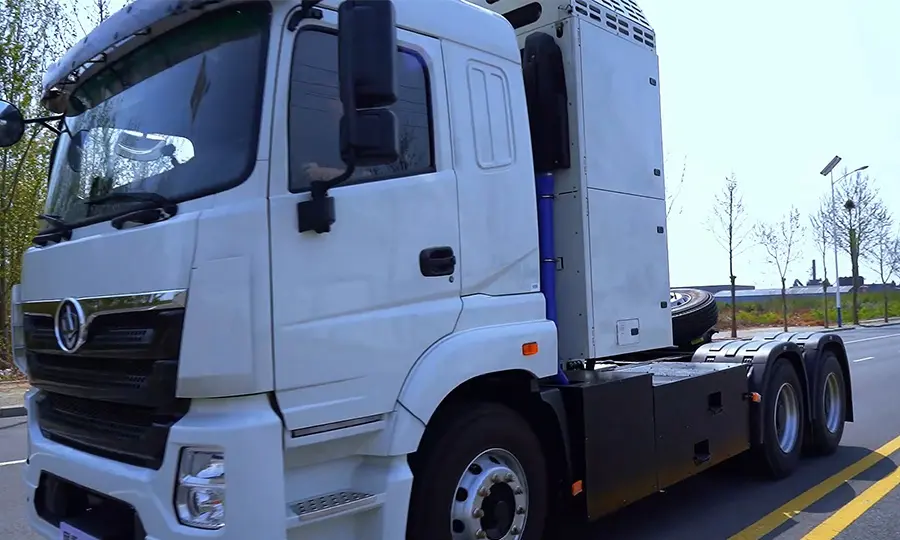

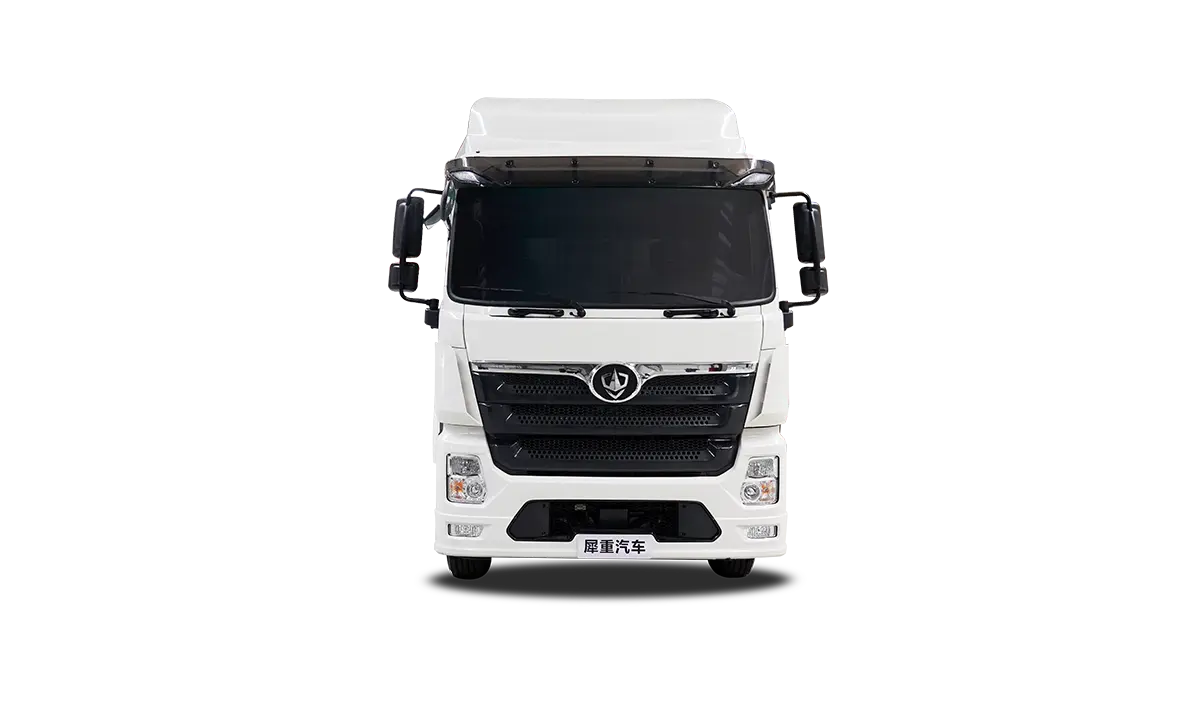

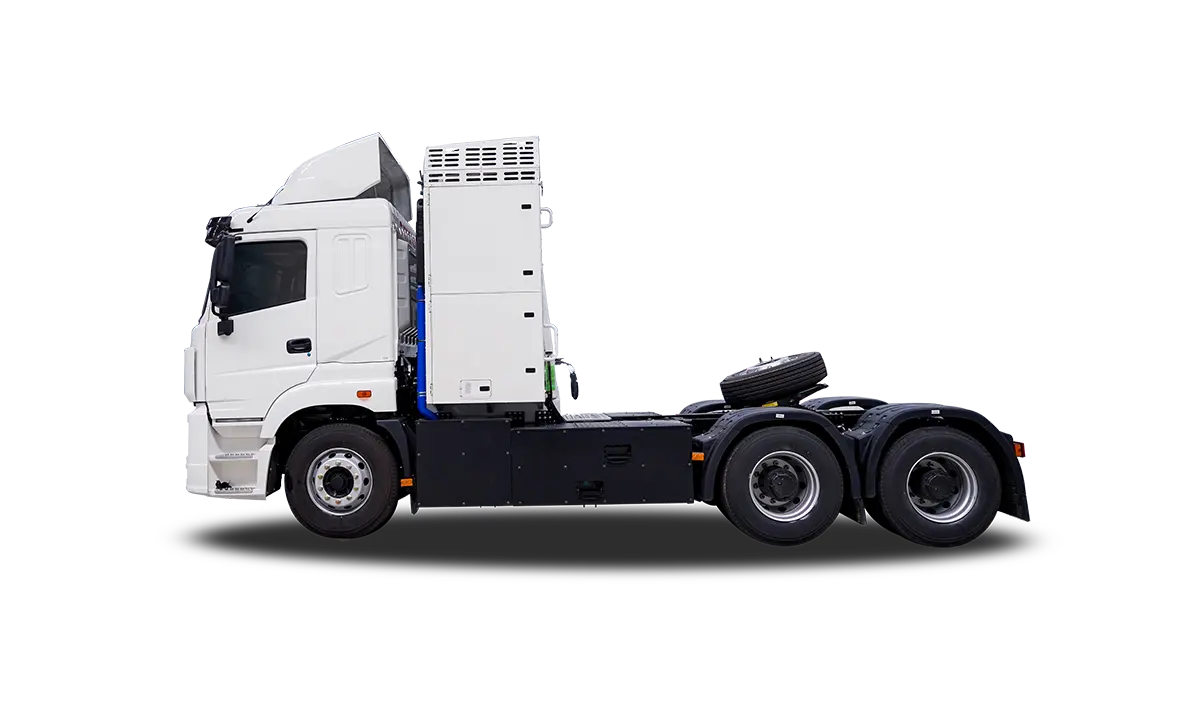

Vehicle appearance
Product introduction
The Seazon Motor’s hydrogen fuel cell tow tractors can be widely used for bulk material transportation within or between cities.
Product features
-
Energy-efficient and long-lasting battery life

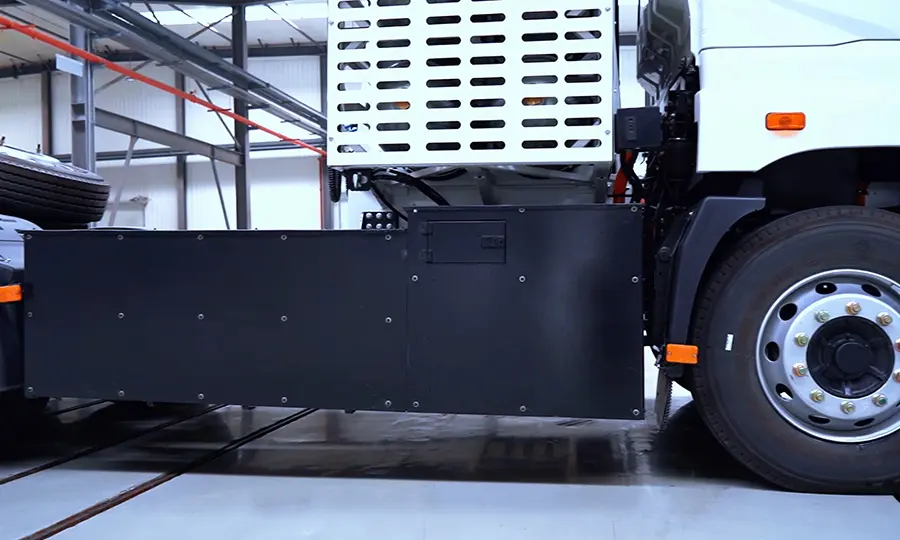

The integrated electric drive axle structure eliminates the need for transmission shafts and other components. The wheel end transmission efficiency is as high as 95.4%, and the kinetic energy recovery capacity is double that of traditional axles.
-
Both hydrogen and battery available with energy saving and high efficiency
The vehicle offers two power modes: battery mode and hydrogen-electric hybrid mode. Users can choose between these modes flexibly. Additionally, selecting battery mode during short-distance transportation helps reduce operating costs.
-
Artificial intelligence and comfort driving

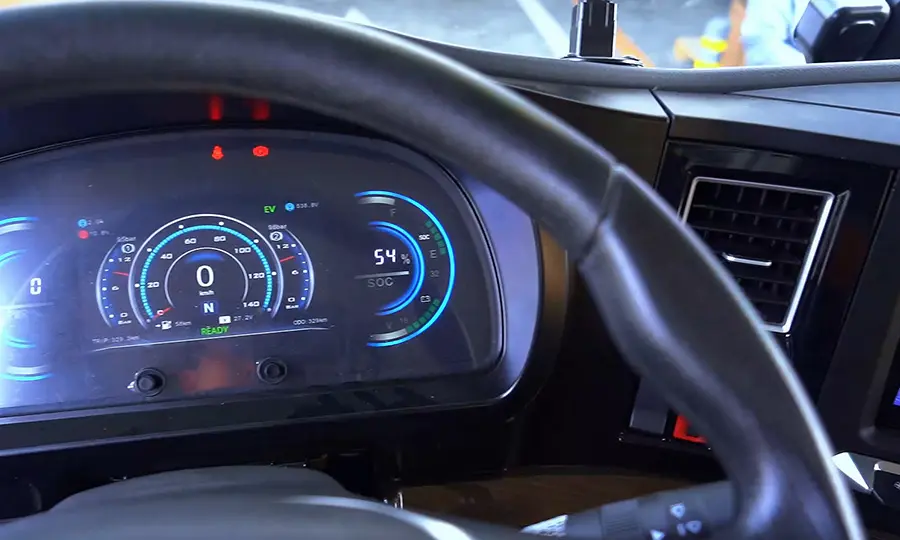

The vehicle status can be displayed on the 7-inch LCD instrument panel in real-time, which is efficient and intelligent.
-
Strong power and smooth shifting
The vehicle is driven by double 220 kW motors with strong power and fast speeding up.
Configuration parameters
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 7510x2550x3720（Standard version）/7900x2550x3720（Long range version） |
| Wheelbase (mm) | 3850+1350（Standard version）/4100+1350（Long range version） |
| Maximum/curb weight (kg) | 11000（Standard version）/12000（Long range version） |
| Vehicle performance | |
|---|---|
| Endurance mileage (km) | 400（Standard version）/600（Long range version） |
| Power system | |
|---|---|
| Power battery (kWh) | 100.91（Standard version）/117.7（Long range version） |
| Hydrogen capacity | 8x213（Standard version）/6x410（Long range version） |
| Hydrogen fuel cell power | 130 |
| Motor rated/peak power (kW) | 220/440 |
| Transmission | 3AMT manumatic transmission |
| Operating ability | |
|---|---|
| Brake system | Dual circuit pneumatic braking |
| Minimum ground clearance (mm) | 250 |
| Drive axle | integrated electric drive axle |
Note: The product introduction should be as detailed as possible on the basis of available information. Seazon Motor Co., Ltd. reserves the right to modify and adjust the product parameters, configurations, materials, colors, and other information on the model at any time. Therefore, the product introduction is for reference purposes only, and the appearance, configuration, color, and other specifics of actual vehicles sold may vary.
If you need to purchase a vehicle, please contact us.
