31T Mixer Truck (charging version)
The vehicle, with electric drive axle integration, is tested by Seazon Motor Research Institute. The maximum efficiency of the system is greater than 96%.

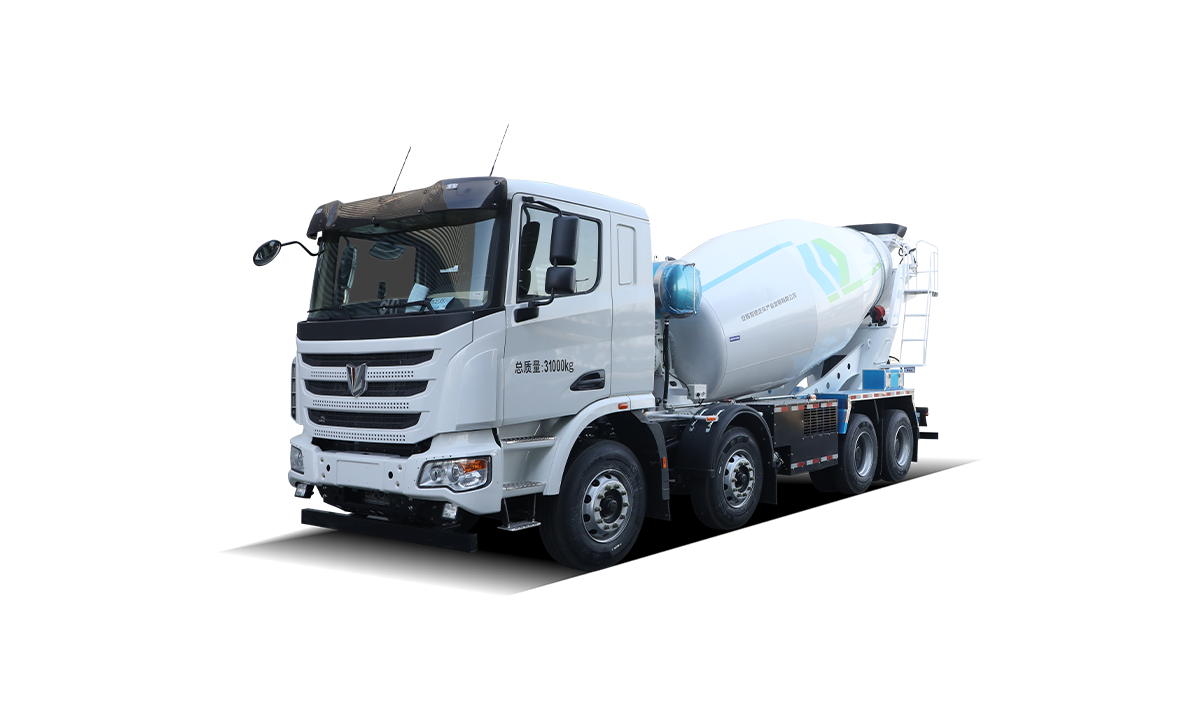

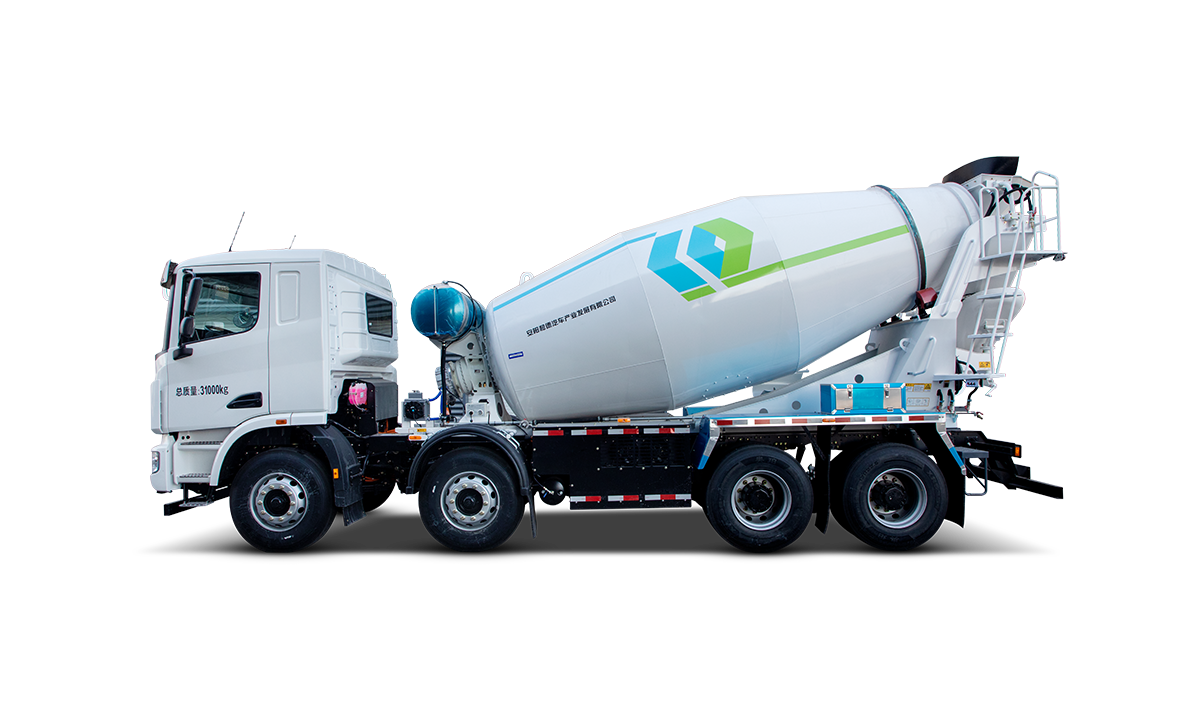

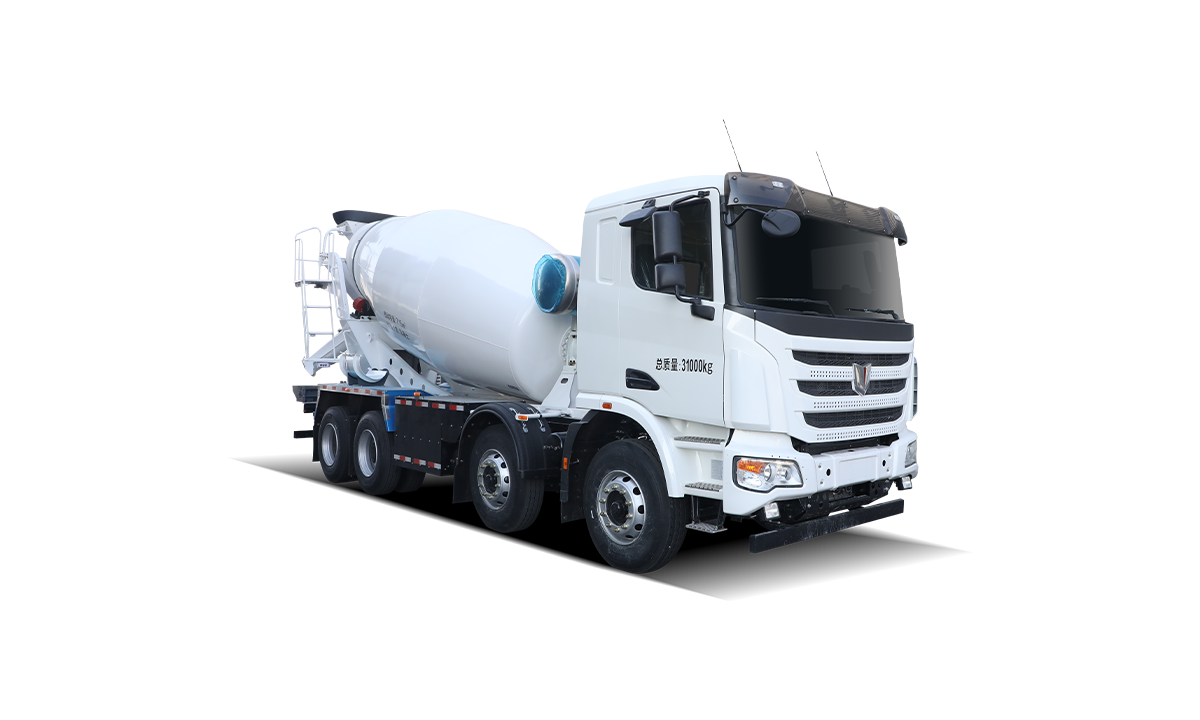

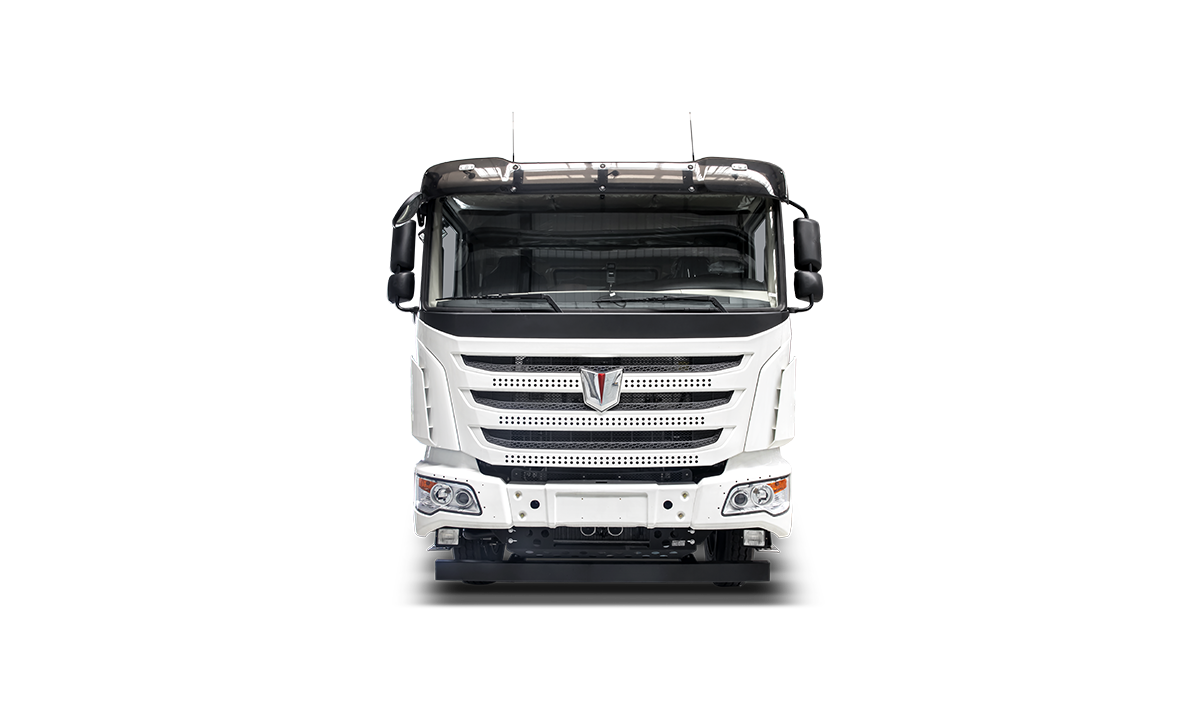

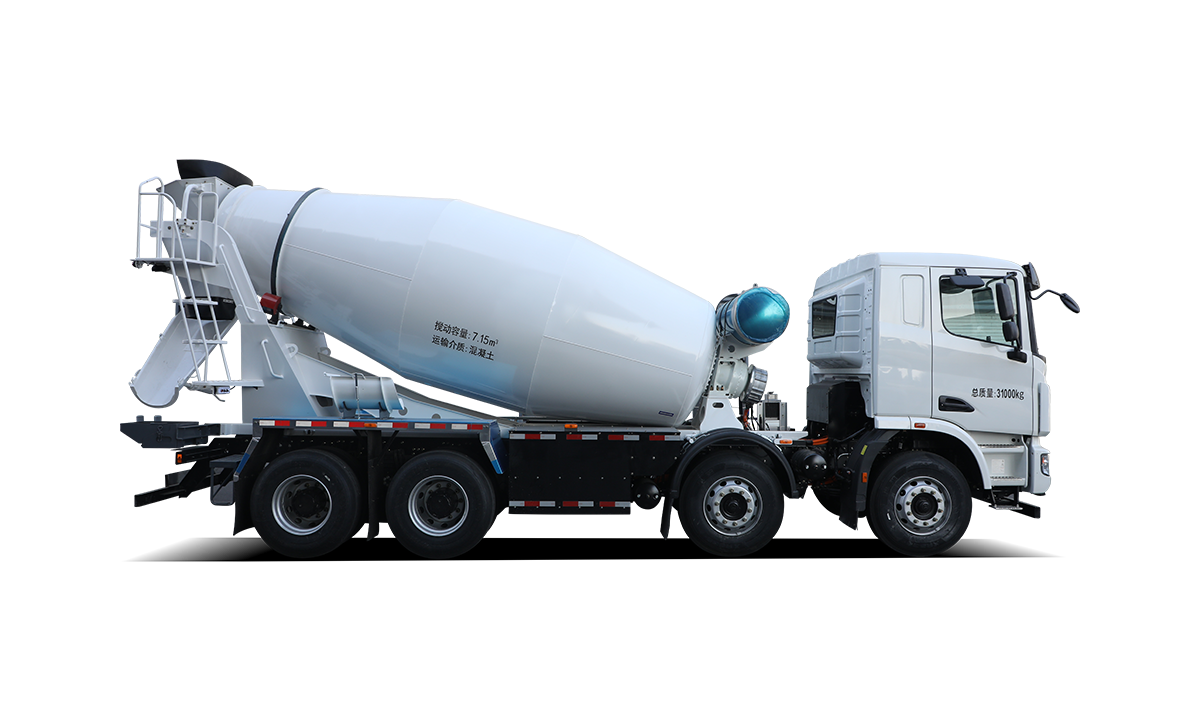

Vehicle appearance
Product introduction
The vehicle, with electric drive axle integration, is tested by Seazon Motor Research Institute. The maximum efficiency of the system is greater than 96%.
Product features
-
Excellent driving comfort

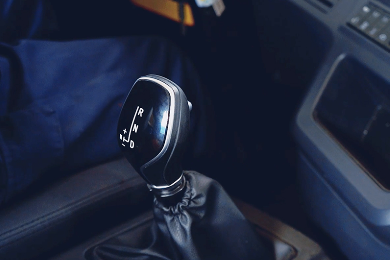

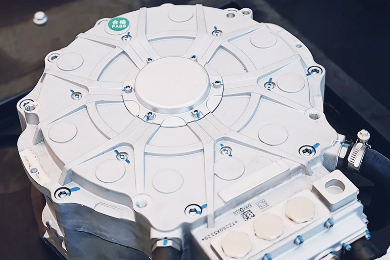

The vehicle is equipped with motor, transmission, axle integration and dual mode shift, solving the problem of single motor power output shift interruption.
-

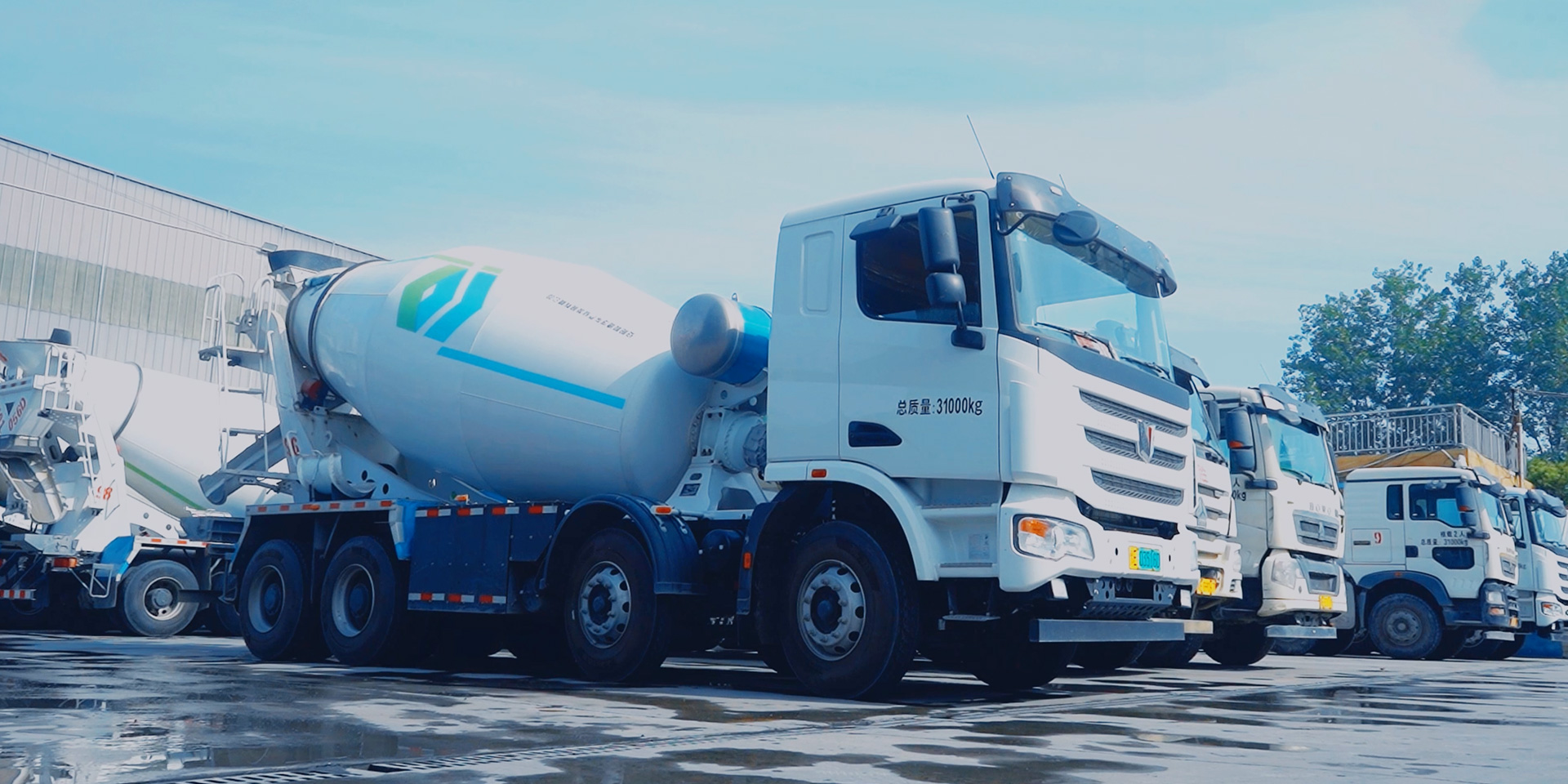

Large loading capacity
The vehicle, with lightweight design and stronger overload capacity, is tested by Seazon Motor Research Institute, carrying another 0.6 m³ under standard load.
-

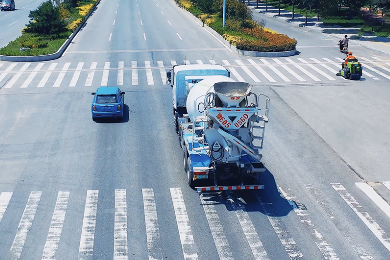

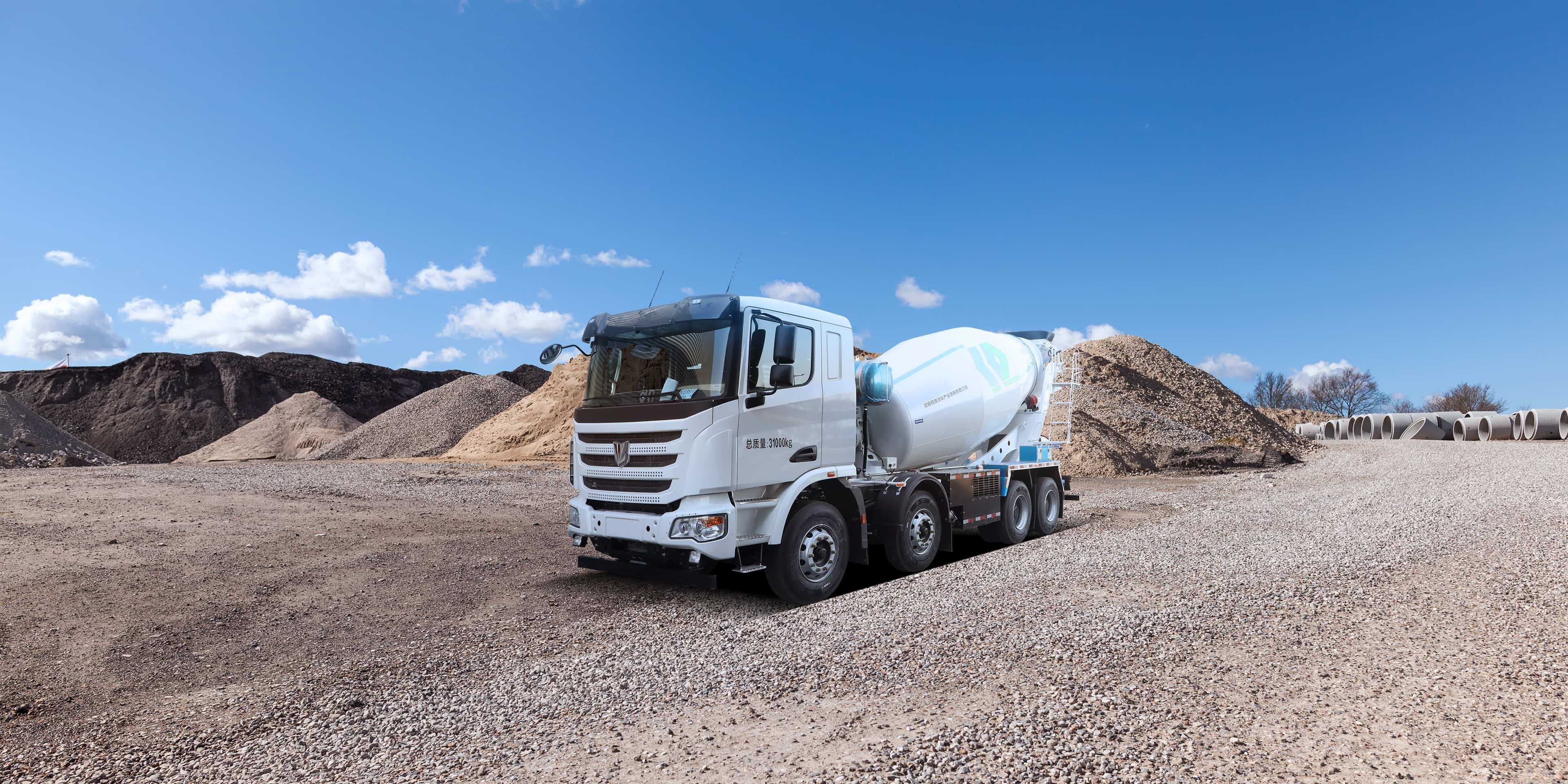

Powerful passability
The vehicle has a wheelbase of 6200 mm, identical to that of the fuel-powered version, meeting the new national standard and ensuring powerful passability.
-

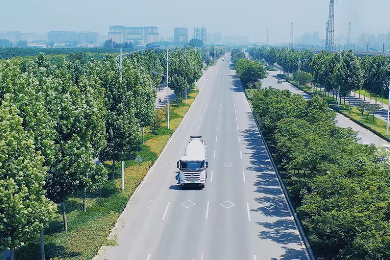

Good economy
The vehicle, with electric drive axle integration, is tested by Seazon Motor Research Institute. The maximum efficiency of the system is greater than 96%. The mixing tank has been changed to motor direct drive, which improves efficiency by approximately 30% compared to hydraulic transmission and eliminates maintenance costs, making it more economical.
Configuration parameters
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 9890×2550×3935 |
| Wheelbase (mm) | 1950+2900+1350 |
| Maximum/curb weight (kg) | 31000/15270 |
| Maximum gradient | ≥50 |
| Upperstructure configuration | |
|---|---|
| Tank stirring capacity (m³) | 7.15 |
| Actual loading capacity (m³) | 11 |
| Chassis configuration | |
|---|---|
| Suspension system | Leaf spring suspension |
| Brake system | Front and rear drum pneumatic dual circuit service brake /ABS |
| Drive axle | Disc hub/integrated electric drive axle |
| Front axle | HanDe Axle/rigid axle |
| Power configuration | |
|---|---|
| Motor rated/peak power (kW) | 2*125/230 |
| Power battery (kWh) | CATL/350.08 |
| Transmission | AMT Transmission |
Note: The product introduction should be as detailed as possible on the basis of available information. Seazon Motor Co., Ltd. reserves the right to modify and adjust the product parameters, configurations, materials, colors, and other information on the model at any time. Therefore, the product introduction is for reference purposes only, and the appearance, configuration, color, and other specifics of actual vehicles sold may vary.
