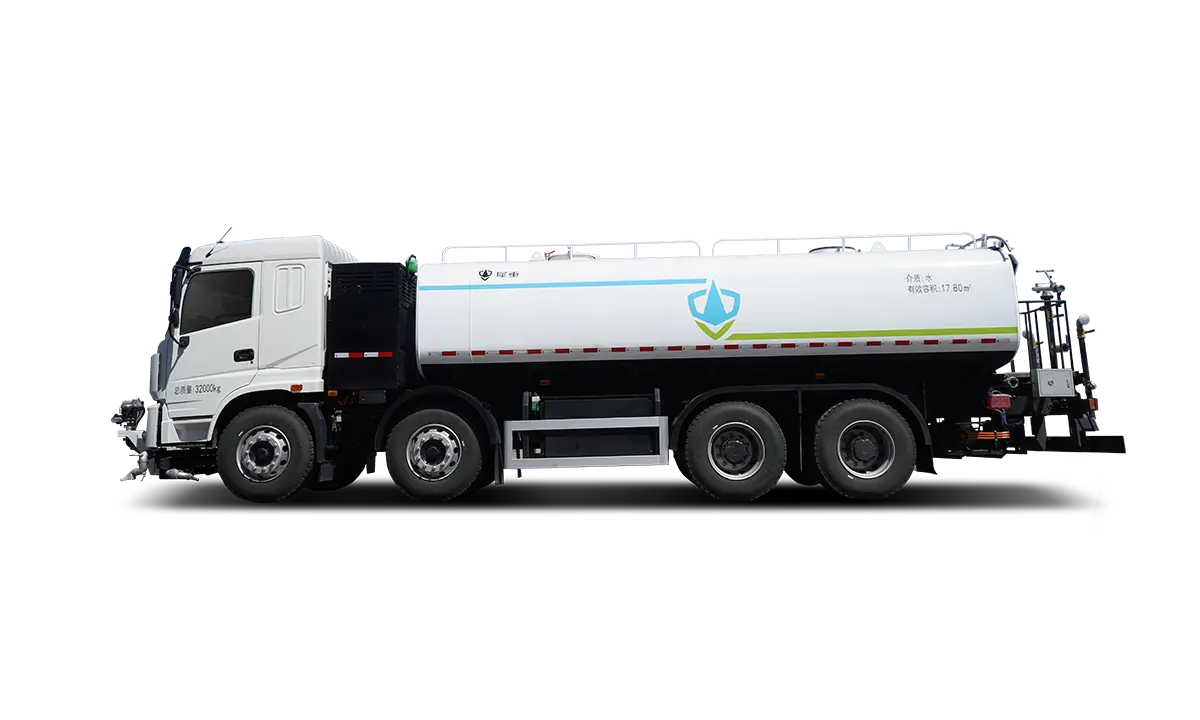

It is suitable for road maintenance, road flushing, dust reduction through water sprinkling, and green belt watering in urban roads (main roads), highways, expressways, bridges, squares, tunnels, airports, docks, residential communities and other places. It is also suitable for dust reduction and water sprinkling in construction sites, factories, and coal yards.
Face-to-face flushing width (m)
Sprinkling width (m)
Effective volume of the water tank (m³)
It is suitable for road maintenance, road flushing, dust reduction through water sprinkling, and green belt watering in urban roads (main roads), highways, expressways, bridges, squares, tunnels, airports, docks, residential communities and other places. It is also suitable for dust reduction and water sprinkling in construction sites, factories, and coal yards.
With an exceptionally large battery capacity, it can meet the demands of high-intensity operations throughout the day after charging.
The extra large tank volume is greater than that of similar models, making the operation time longer after adding water once.

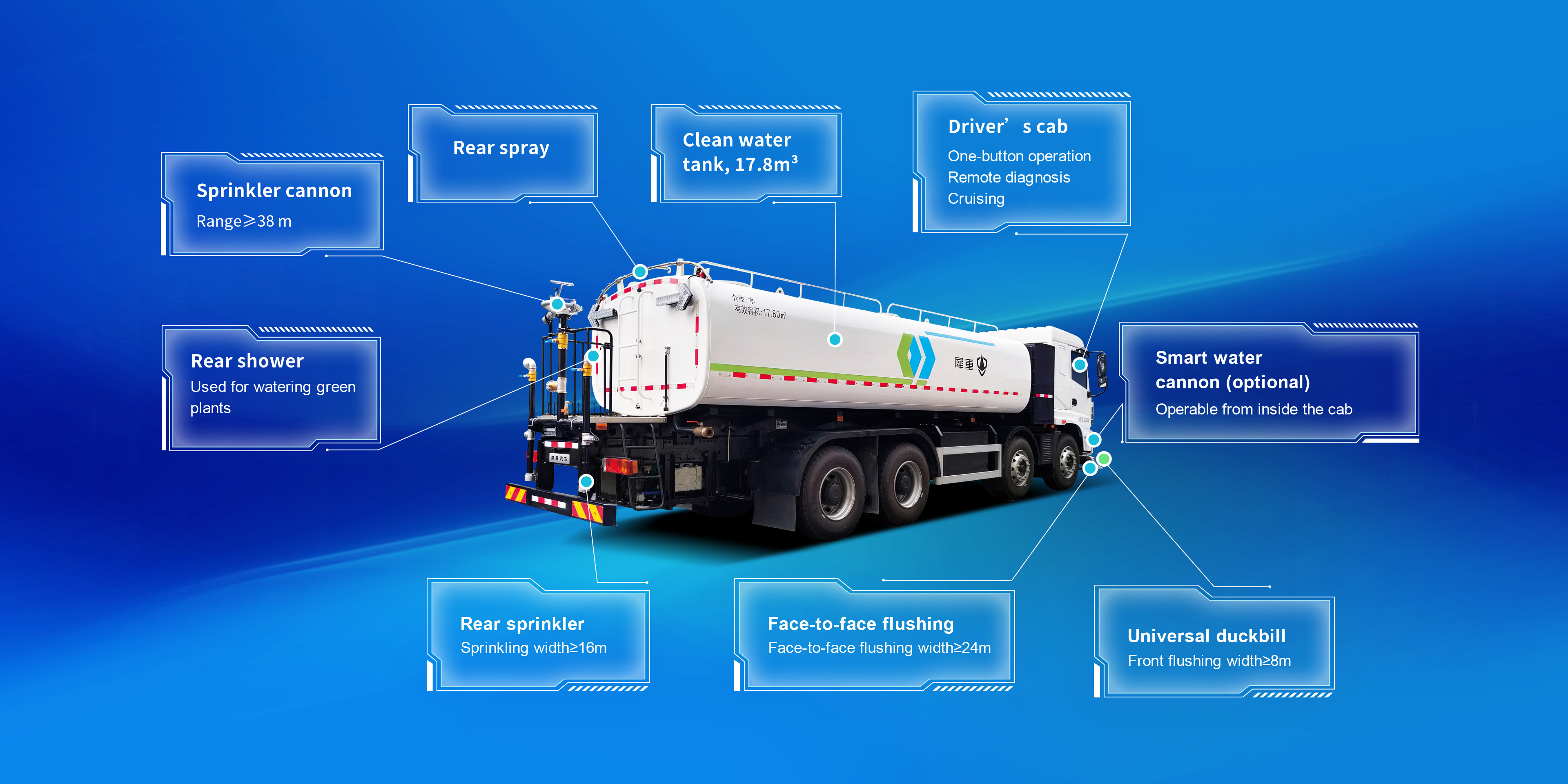

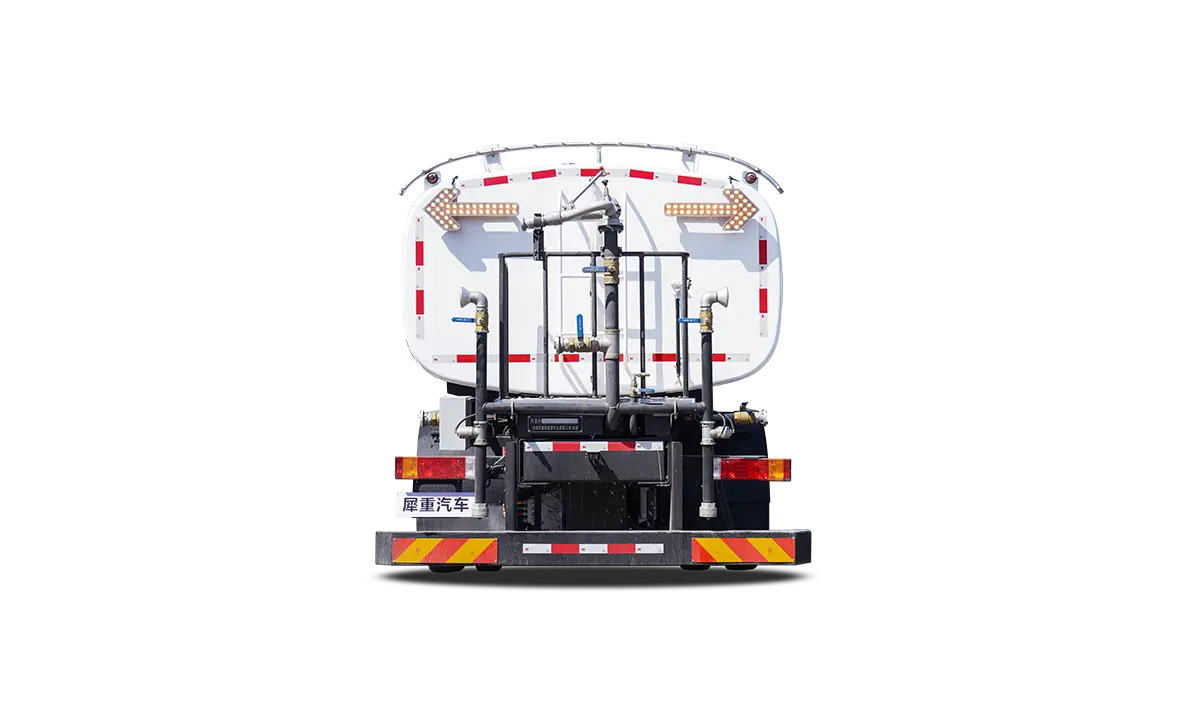

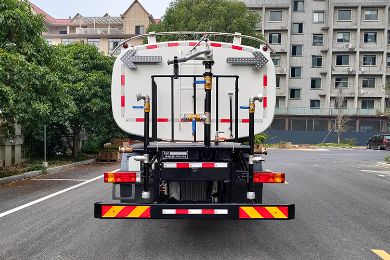

The low-pressure water system has the functions of “front flushing + middle spray + rear sprinkler + rear spray + rear water cannon”, which can cope with complex road conditions when used in combination; it is also equipped with a front smart water cannon, which has functions such as garden watering, fixed-point dredging, and fire-fighting.
Electricity, hydraulics and gas are controlled centrally by touch screen switches. All operation steps can be completed in the cab to provide easy and flexible operation.
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 11200,10660×2550×3000,3050,3100 |
| Maximum/curb weight (kg) | 32000/14000 |
| Chassis brand | TRI-RING SITOM |
| Operating ability | |
|---|---|
| Face-to-face flushing width (m) | ≥24 |
| Sprinkling width (m) | ≥16 |
| Effective volume of the water tank (m³) | 17.8 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥30% |
| Endurance mileage (km) | 253（equivalent speed method） |
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 2*125/230 |
| Motor rated/peak torque (N·m) | 2*450/900 |
| Battery brand/capacity (kWh) | CATL/350.07 |
