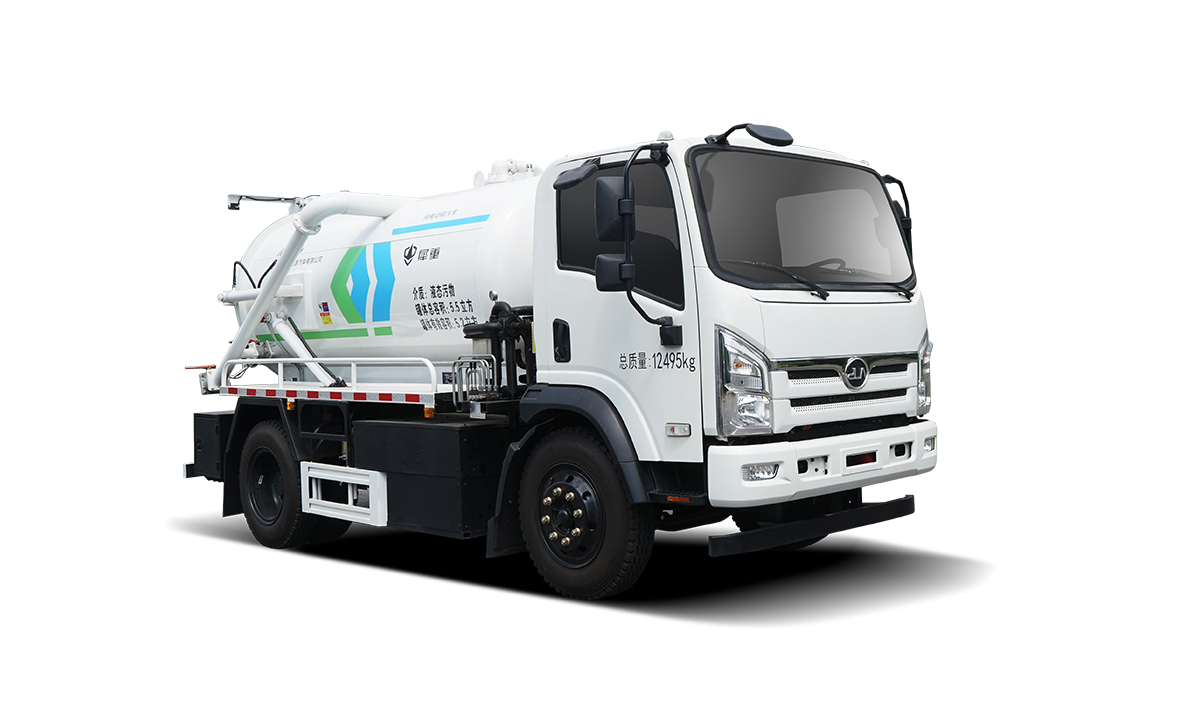

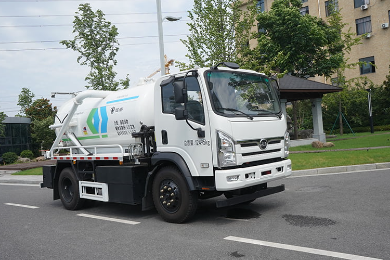

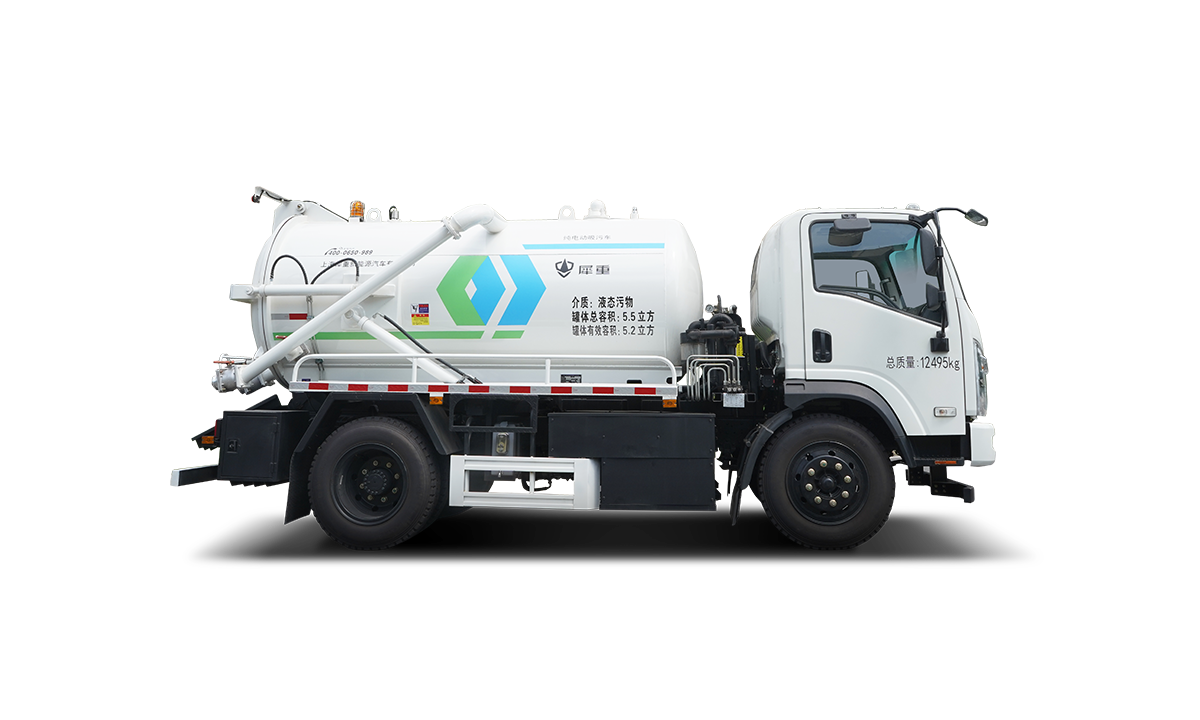

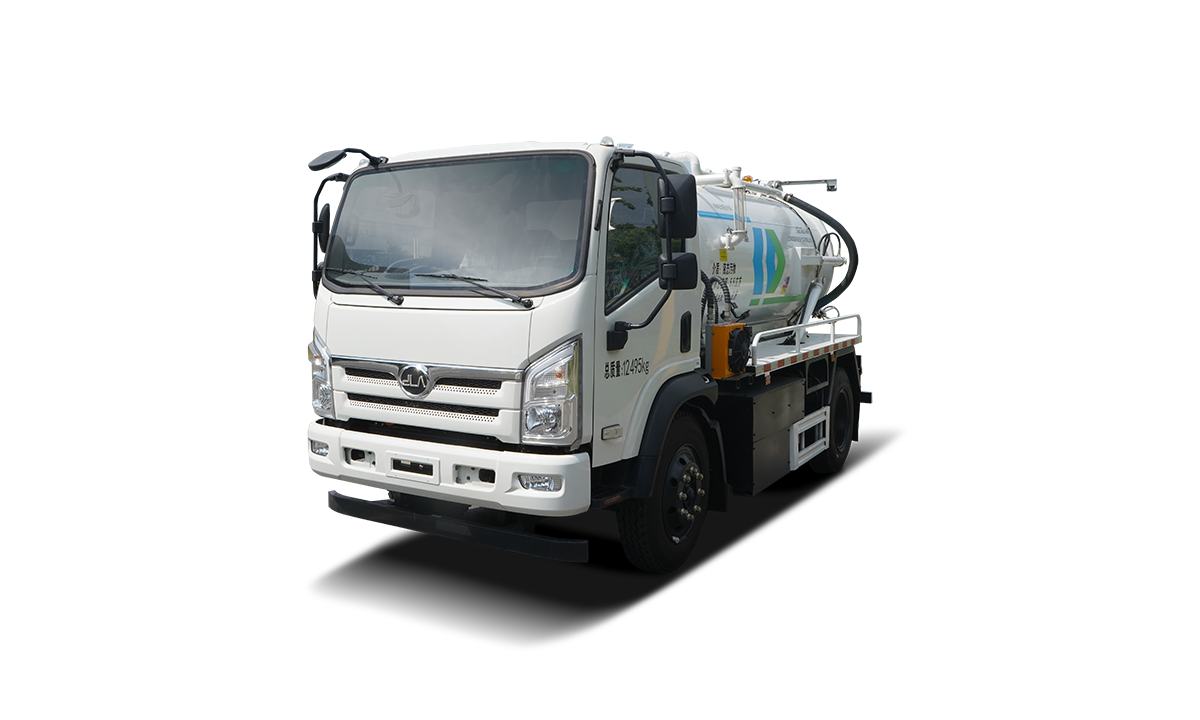

Sewage suction trucks are mainly used to clean sediments in urban sewers and pipelines, and to clear dead corners of mud ditches. They can also be used to clean industrial drainage pipes, walls, etc. and for sprinkling, transporting water and flushing roads as well as emergency firefighting.
Inner diameter of suction pipe (mm)
Time to pump a full tank (min)
Total volume of tank (m³)
Sewage suction trucks are mainly used to clean sediments in urban sewers and pipelines, and to clear dead corners of mud ditches. They can also be used to clean industrial drainage pipes, walls, etc. and for sprinkling, transporting water and flushing roads as well as emergency firefighting.
The vehicle has a minimum turning radius of only 7 m, offering better passability and strong geographical adaptability.

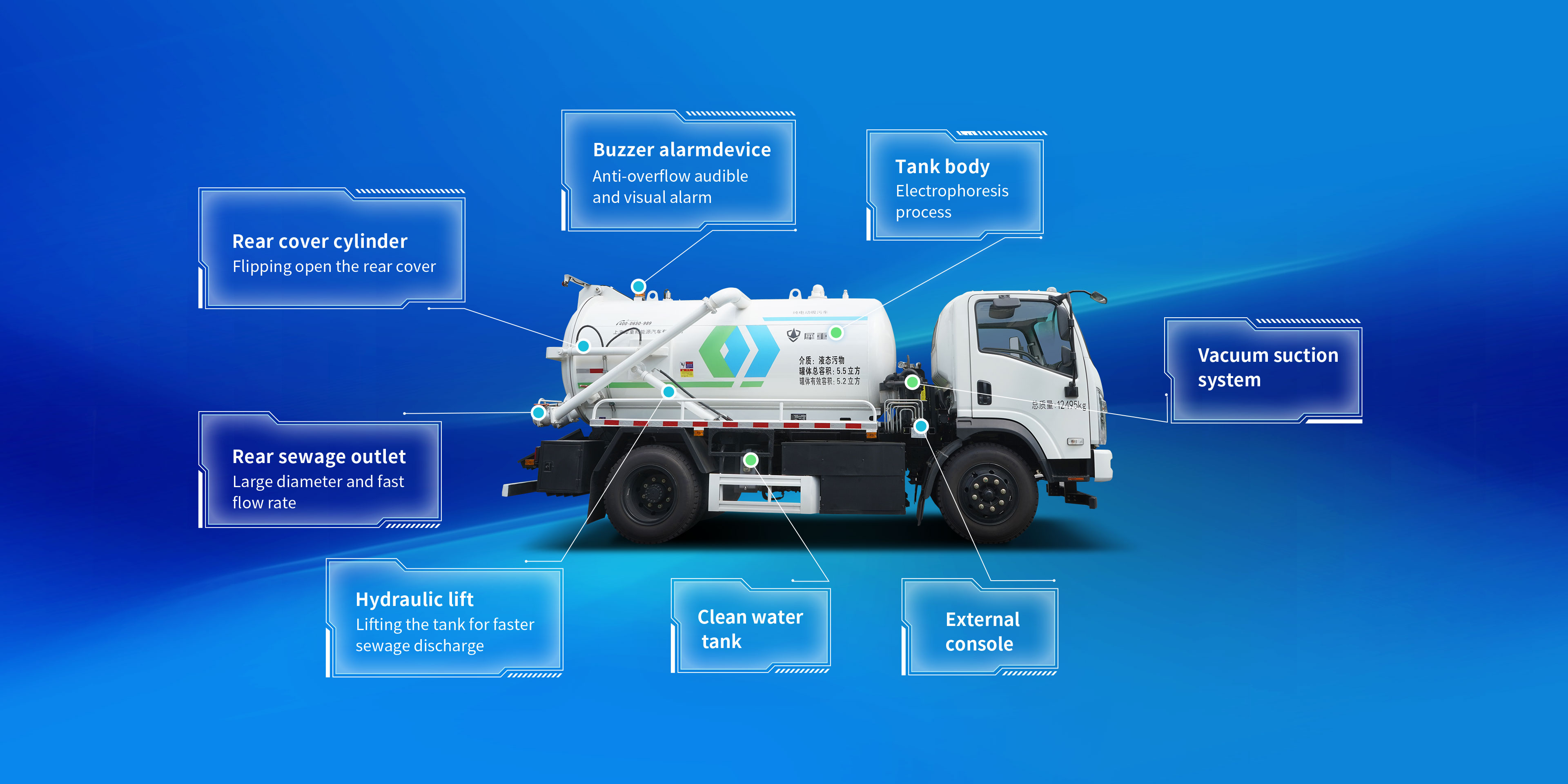

Key parts of the tank are made of high-strength steel with electrophoresis anti-corrosion to improve safety and service life.
The vehicle adopts rear axle drive, with a peak power of 230kw, meeting the power demand.

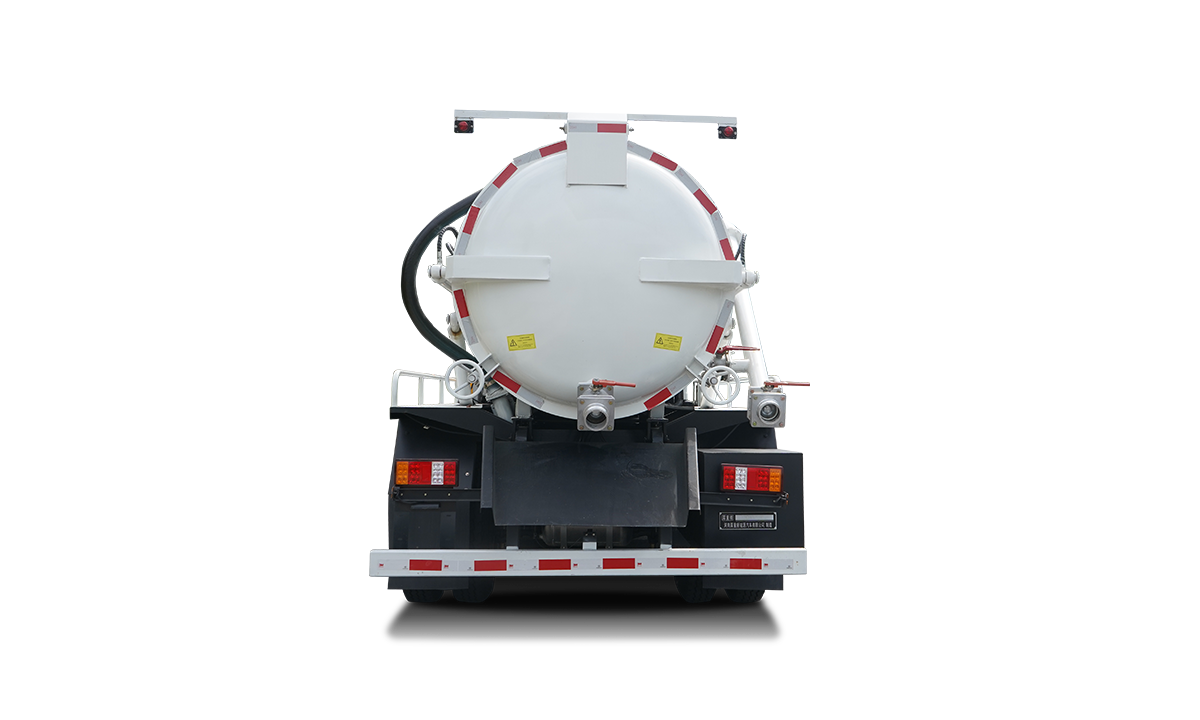

The time it takes to pump a full tank is less than 5 minutes, and the suction depth is up to 8 meters. The tank can be lifted to discharge the waste quickly and cleanly.
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 6280×2300×2880 |
| Maximum/curb weight (kg) | 12495 / 6700 |
| Chassis brand | Seazon special chassis |
| Operating ability | |
|---|---|
| Inner diameter of suction pipe (mm) | 100 |
| Time to pump a full tank (min) | ≤5 |
| Total volume of tank (m³) | 5.5 |
| Pumping depth (m) | ≥8 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | 270（(mode-test） |
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 125 / 230 |
| Motor rated/peak torque (N·m) | 450 / 900 |
| Battery brand/capacity (kWh) | CATL / 121.1 |
