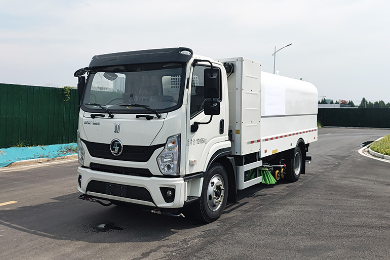

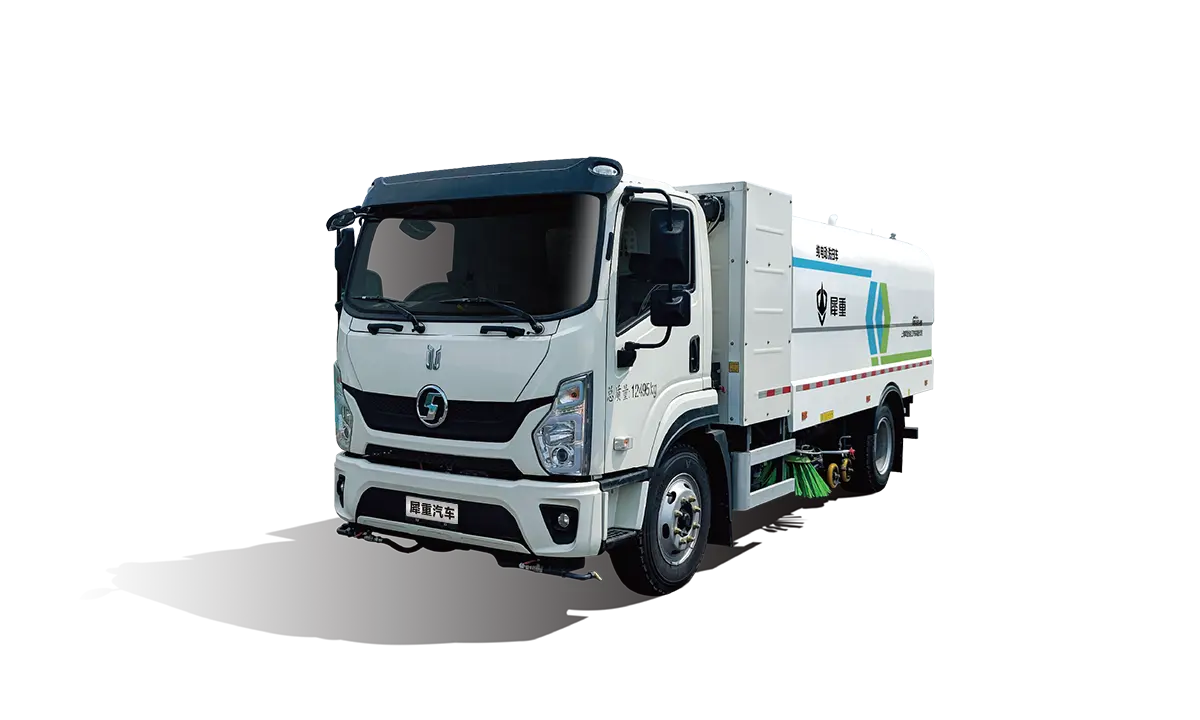

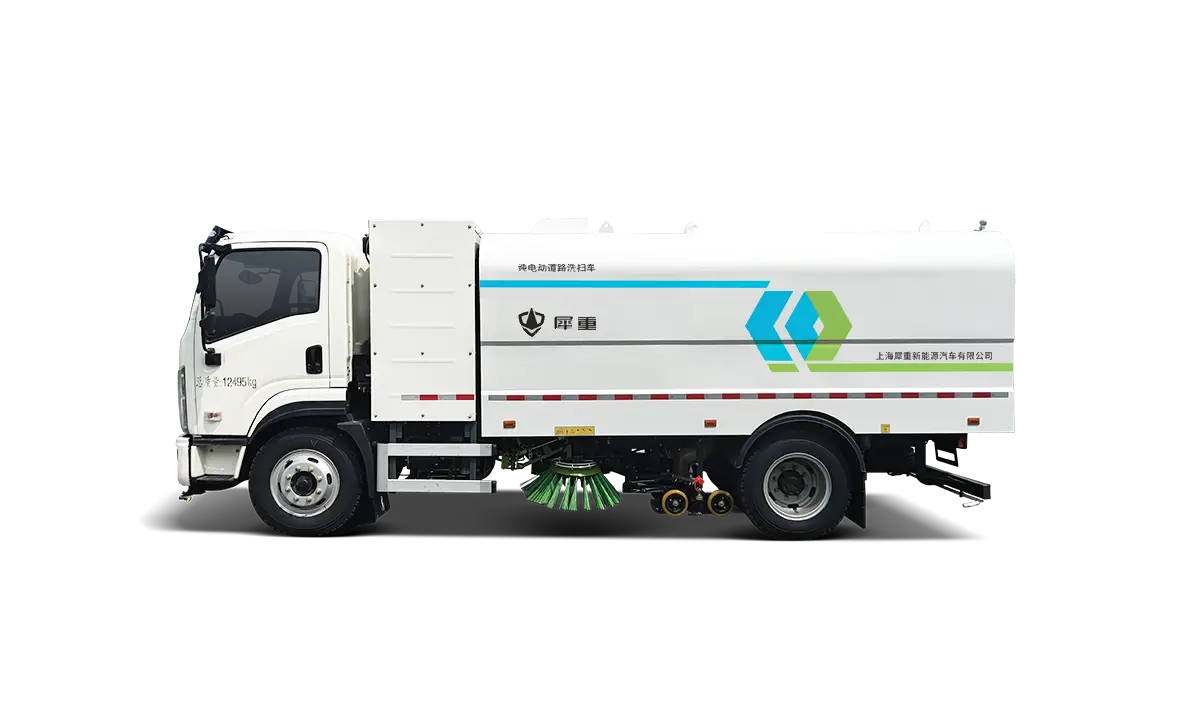

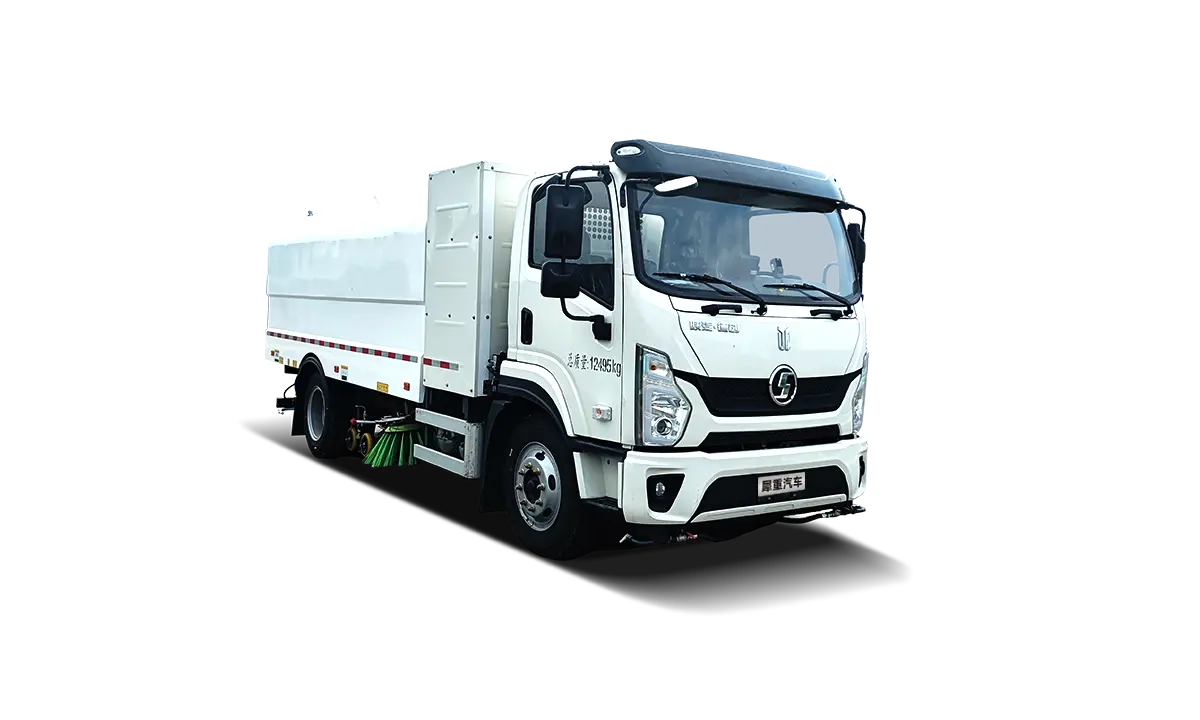

The vehicle model primarily serves multiple functions such as road flushing, road sweeping, garbage collection, curb and curb facade washing, high-pressure spray gun, dust suppression spraying, corner spray, dump container cleaning, etc.
Water tank volume (m³)
Sweeping width (m)
Comprehensive operating time (h)
The vehicle model primarily serves multiple functions such as road flushing, road sweeping, garbage collection, curb and curb facade washing, high-pressure spray gun, dust suppression spraying, corner spray, dump container cleaning, etc.
The clean water tank has a super large volume, which is higher than similar products and can effectively extend the operation time after a single water addition.

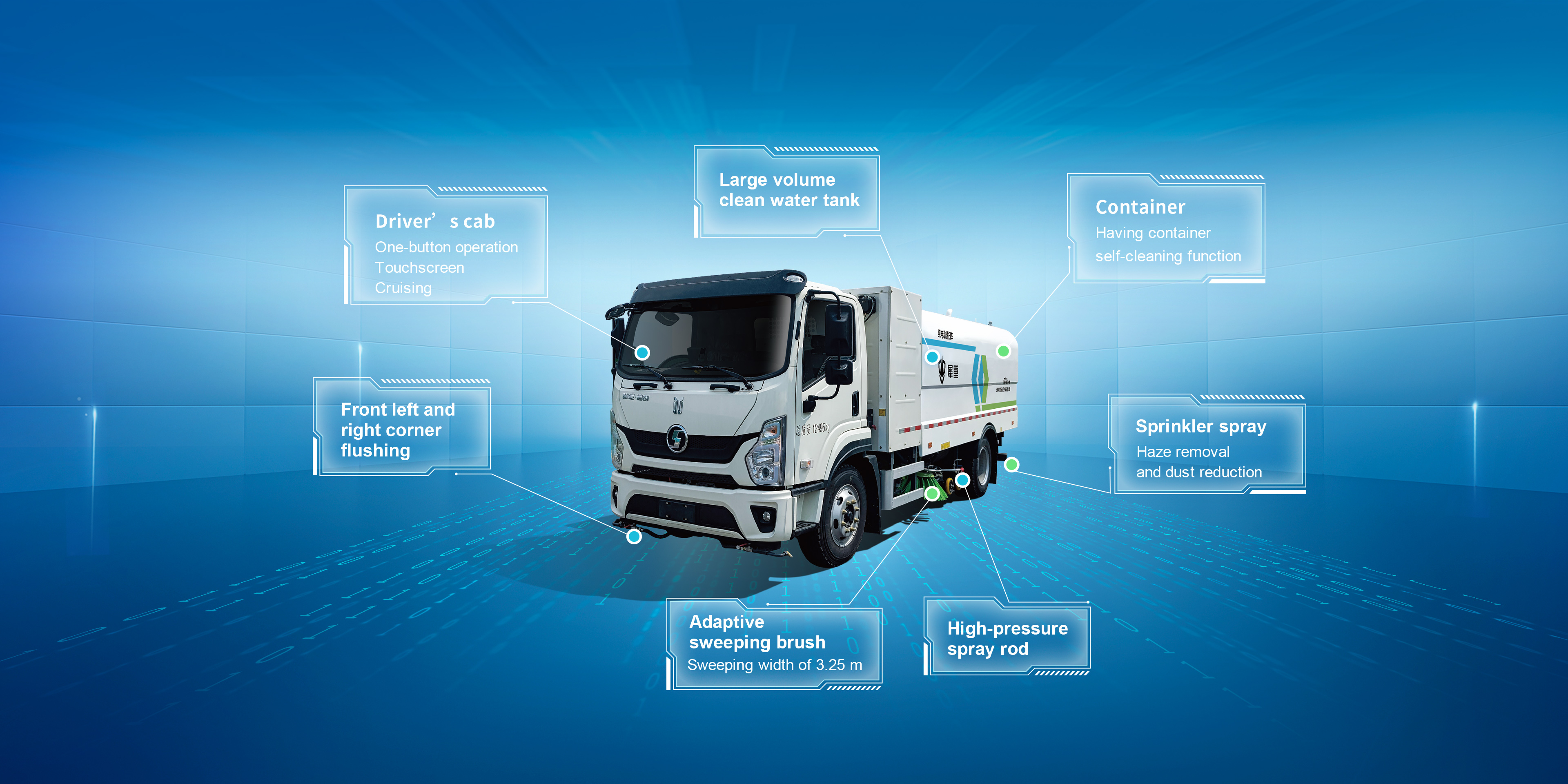

Common operating modes can be operated with one button in the cab, and are equipped with a voice alarm function. The working camera can monitor the operation conditions and operation results in real time, and the central control screen can display the road and pedestrian conditions around the vehicle.

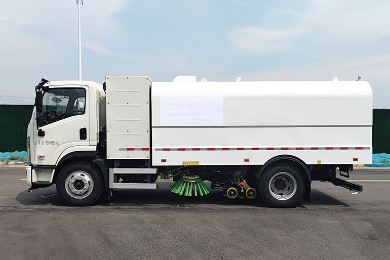

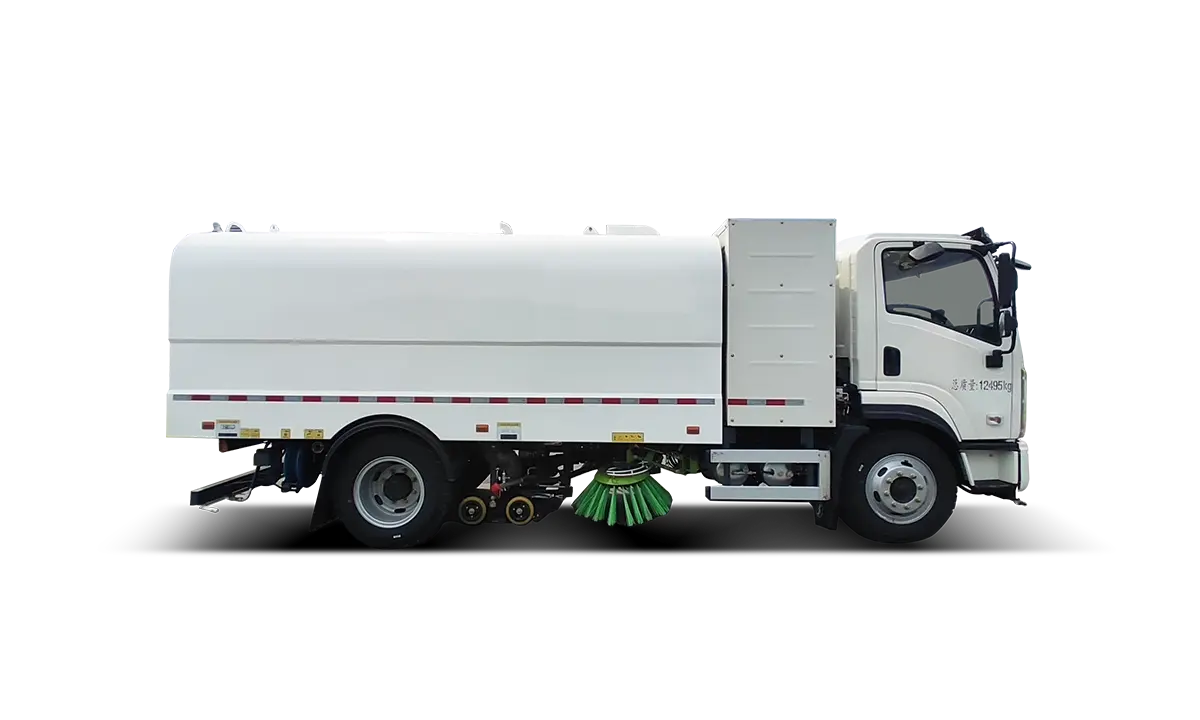

It adopts the layout of “middle two sweeping disks + middle wide suction nozzle + V-shaped spray rod”, offering road sweeping, cleaning, curb brushing, dust suppression spraying, corner spray, hand-held spray gun operation and other functions.

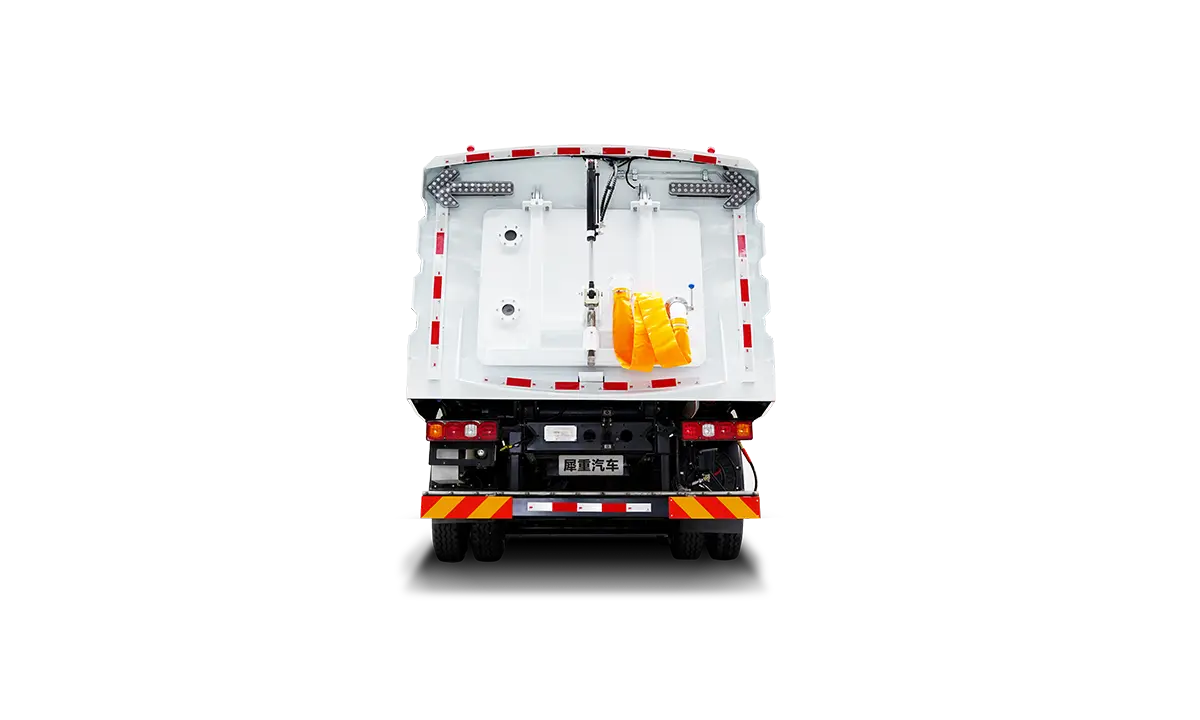

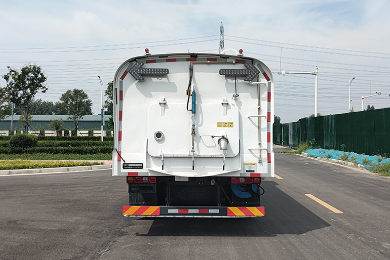

The interior of the container is made of 304 stainless steel, which provides high corrosion resistance and excellent sealing.
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 7425×2350×2845 |
| Maximum/curb weight (kg) | 12495/8750 |
| Chassis brand | Shaanxi Automobile |
| Operating ability | |
|---|---|
| Water tank volume (m³) | 6 |
| Sweeping width (m) | 3.25 |
| Comprehensive operating time (h) | ≥8 |
| Volume of container (m³) | 3.5 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | 400(equivalent speed method) |
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 105/160 |
| Motor rated/peak torque (N·m) | 500/1050 |
| Battery brand/capacity (kWh) | CATL/175.03 |
