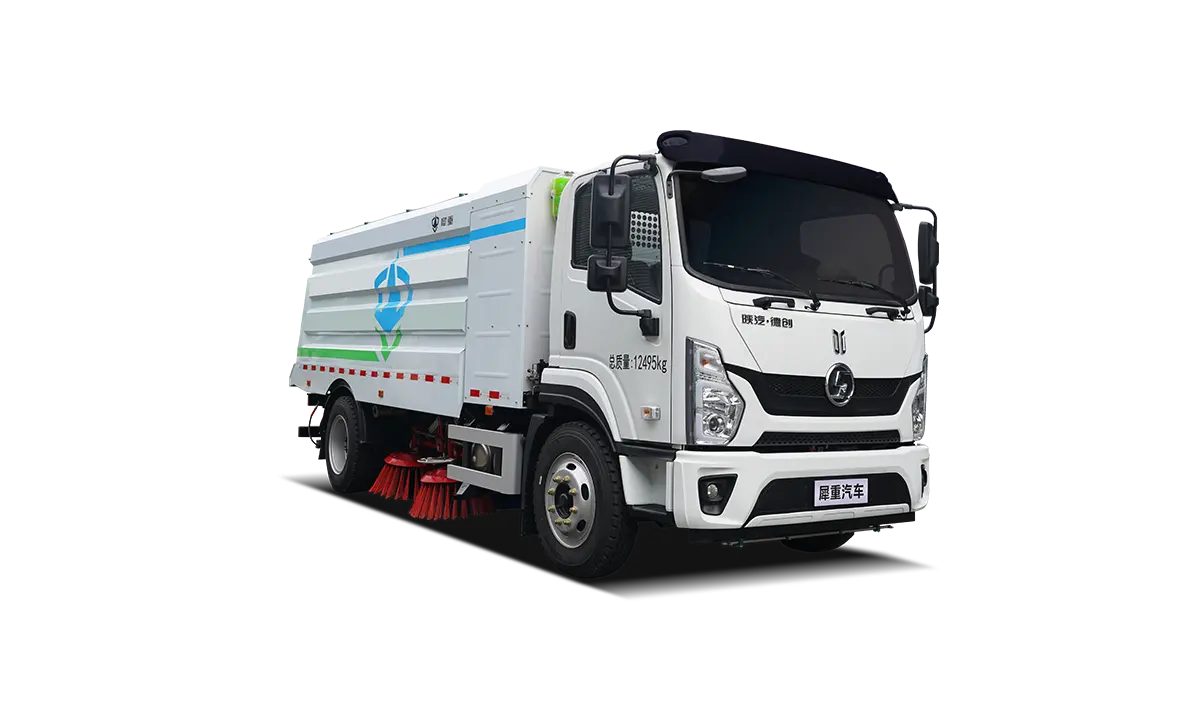

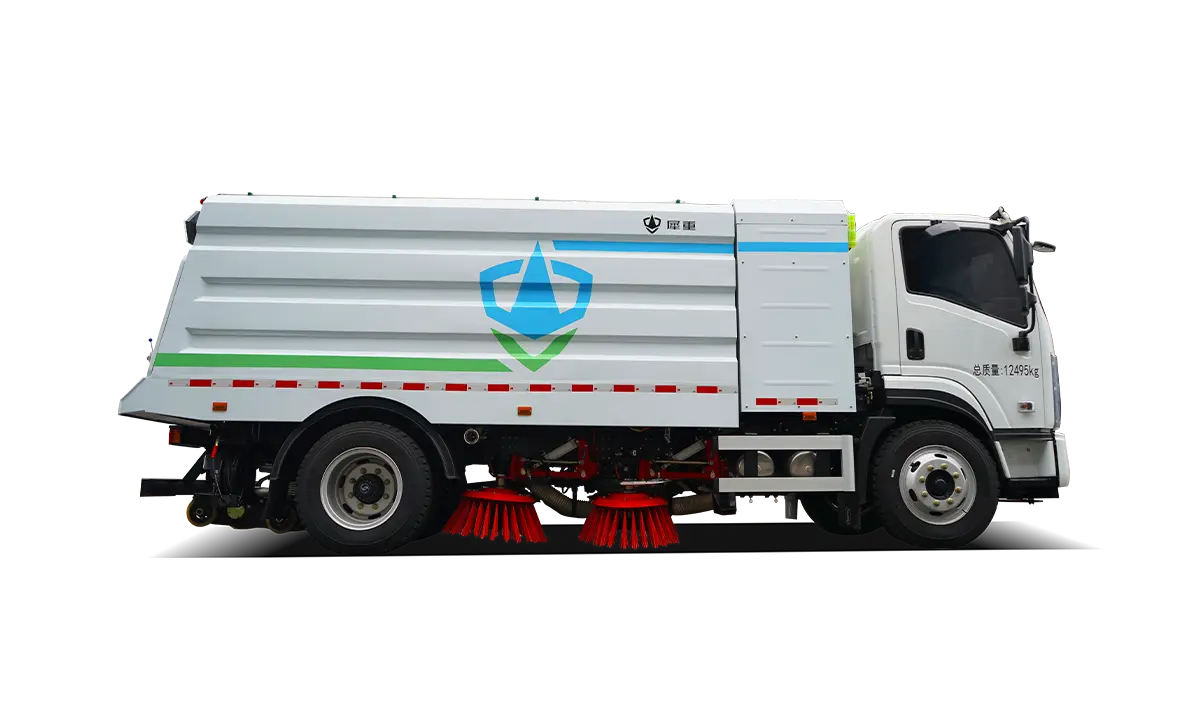

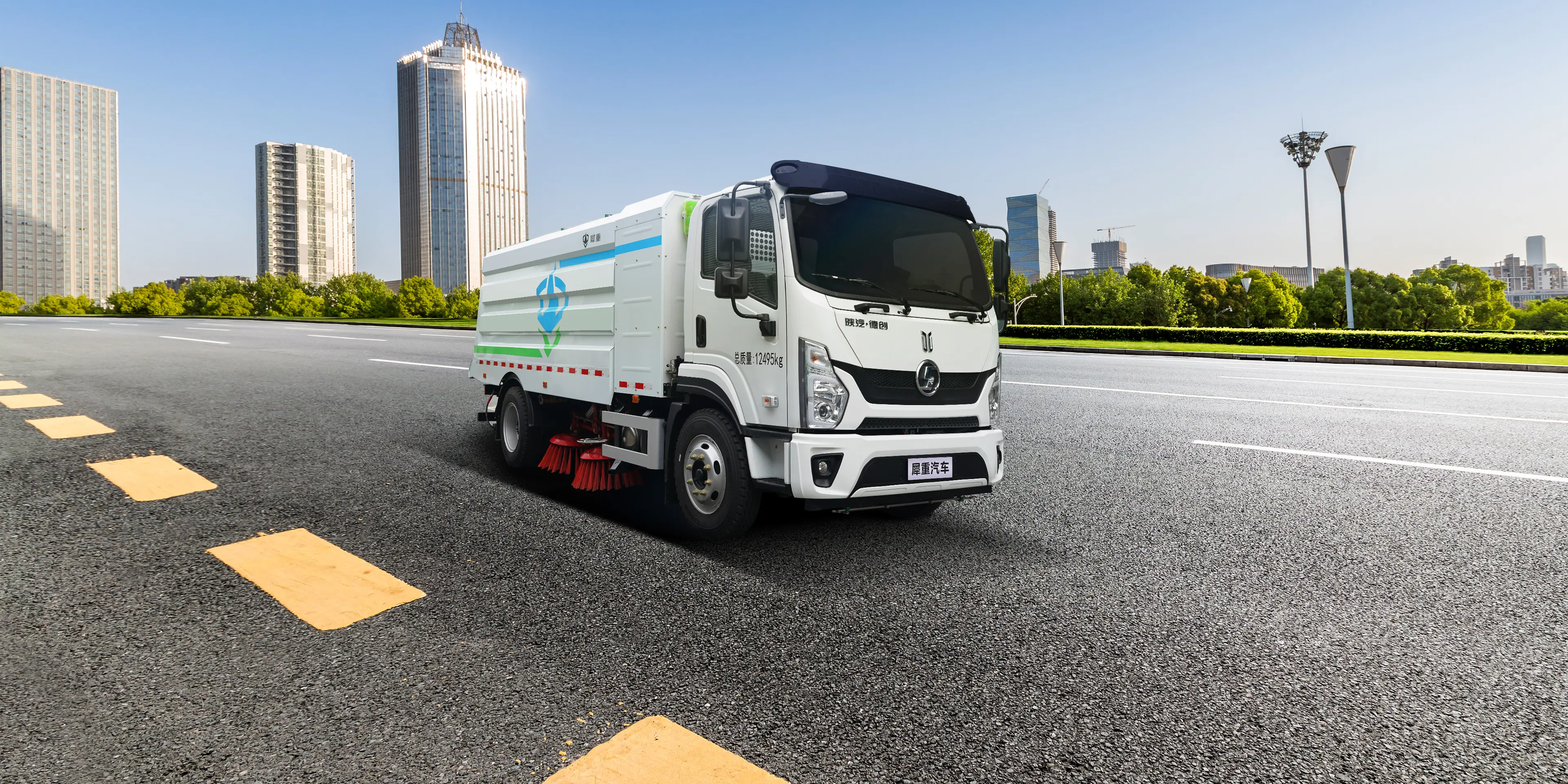

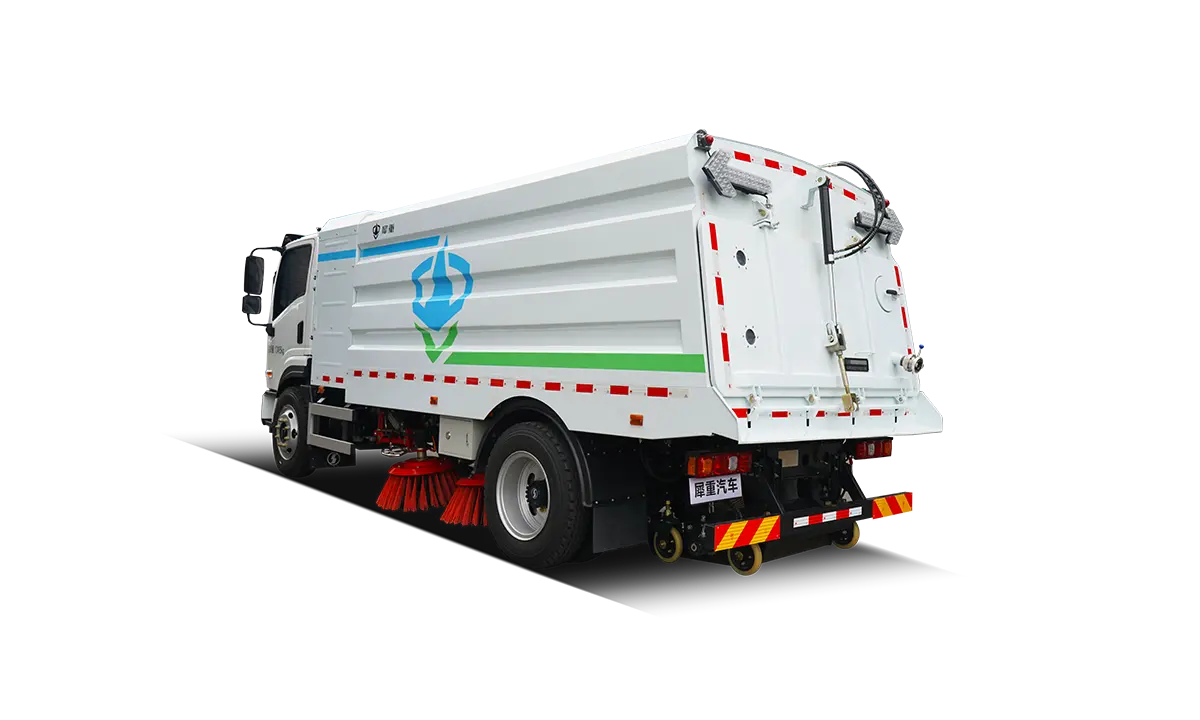

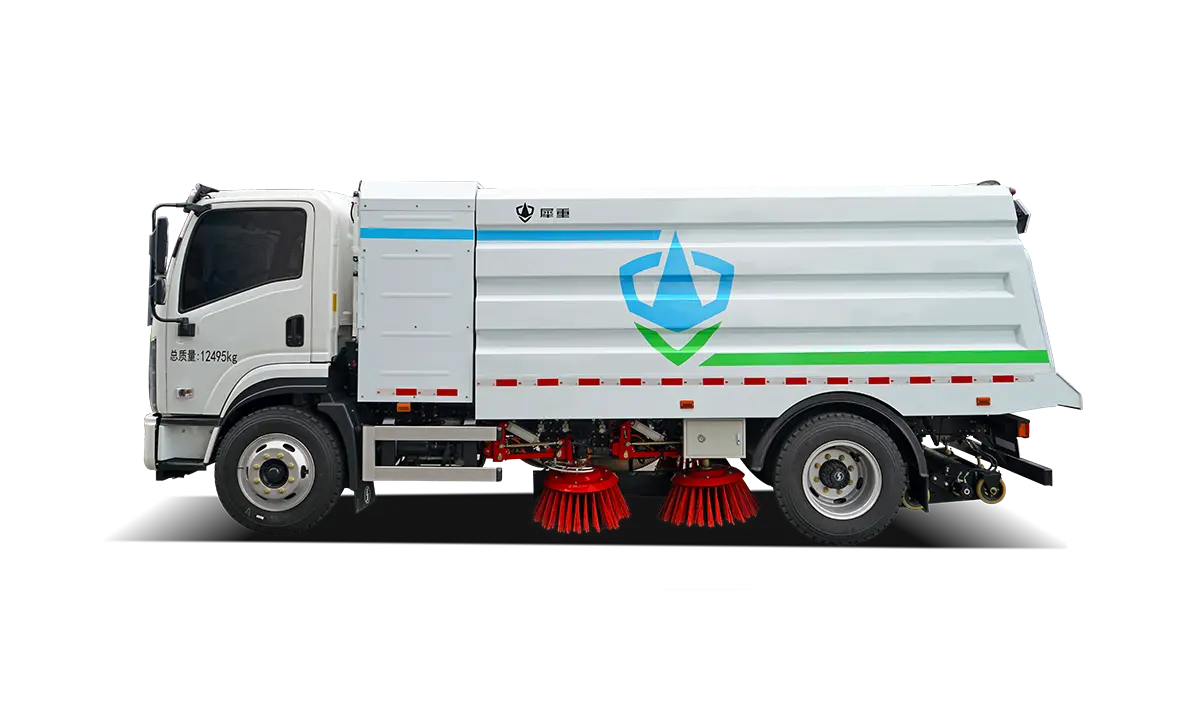

The vehicle boasts a diverse array of functions including suction sweeping, wet sweeping, dust removal, and garbage recovery. It finds extensive application in mechanized cleaning operations across highways, urban roads, viaducts, squares, docks, tunnels, bridges, and various other settings.
Water tank volume (m³)
Sweeping width (m)
Comprehensive operating time (h)
The vehicle boasts a diverse array of functions including suction sweeping, wet sweeping, dust removal, and garbage recovery. It finds extensive application in mechanized cleaning operations across highways, urban roads, viaducts, squares, docks, tunnels, bridges, and various other settings.
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 7150×2350×2790 |
| Maximum/curb weight (kg) | 12495/8810,8600,8100 |
| Chassis brand | Shaanxi Automobile |
| Operating ability | |
|---|---|

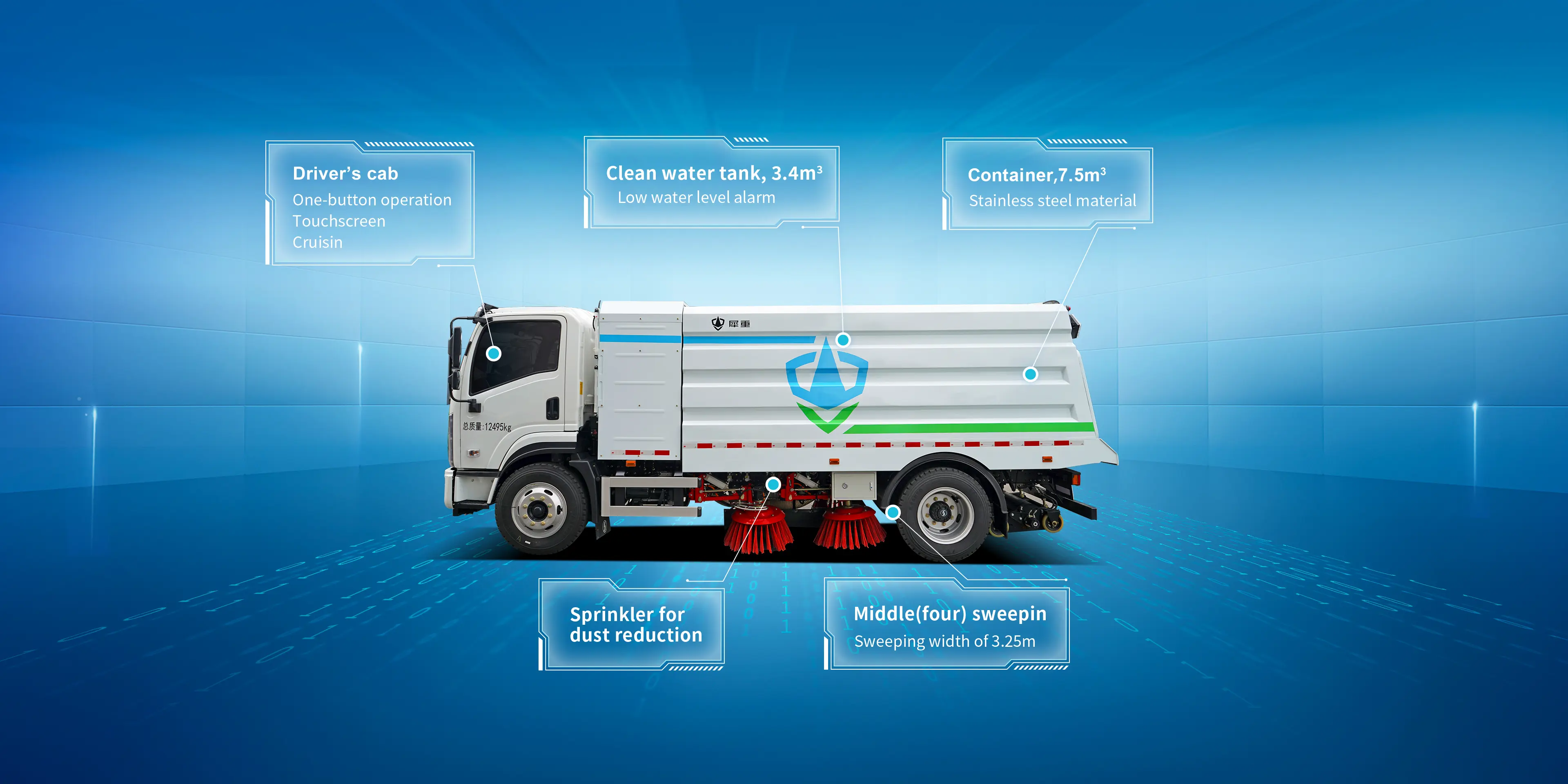

| Water tank volume (m³) | 3.4 |
| Sweeping width (m) | 3.25 |
| Comprehensive operating time (h) | ≥8 |
| Volume of container (m³) | 7.5 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | 400(equivalent speed method) |
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 105/160 |
| Motor rated/peak torque (N·m) | 500/1050 |
| Battery brand/capacity (kWh) | CATL/175.03 |
