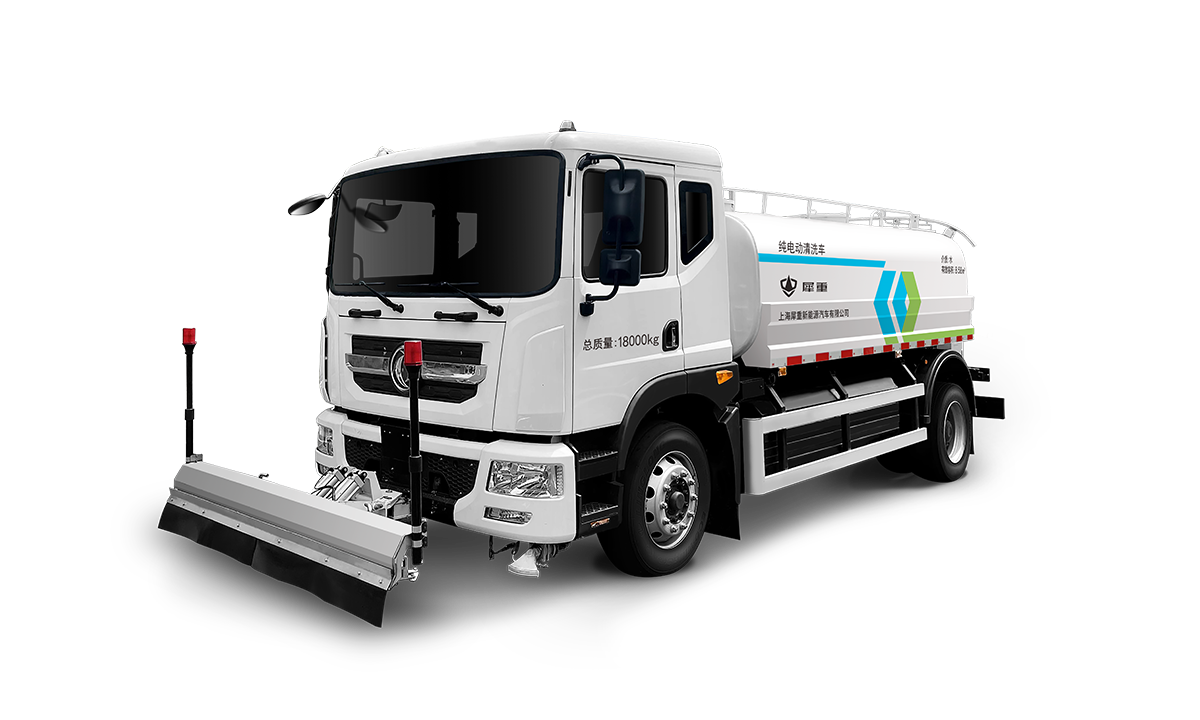

It is suitable for road maintenance, road flushing, dust reduction through water sprinkling, and green belt watering in urban roads (main roads), highways, expressways, bridges, squares, tunnels, airports, docks, residential communities and other places.
Face-to-face flushing width (m)
Cleaning width (m)
Sprinkling width (m)
It is suitable for road maintenance, road flushing, dust reduction through water sprinkling, and green belt watering in urban roads (main roads), highways, expressways, bridges, squares, tunnels, airports, docks, residential communities and other places.
The water pump adopts a well-known domestic brand, featuring stable and reliable quality; the tank body of the standard model is made of thickened high-quality steel plates, which are durable.
The flushing pressure is strong, which results in a high cleaning rate, allowing the road surface to easily regain its original appearance.

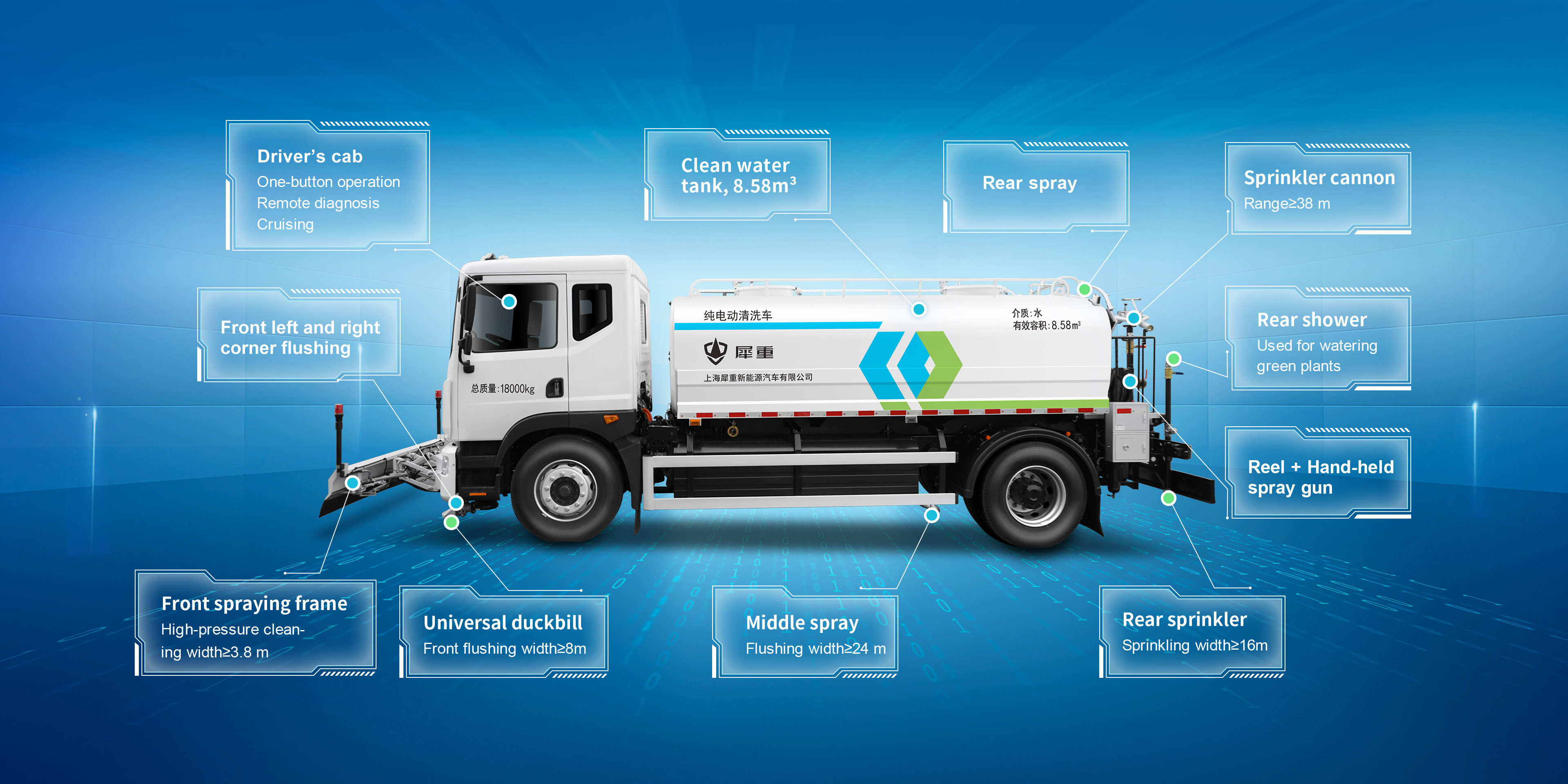

High-pressure cleaning, low-pressure flushing, and hand-held spray guns are combined into one system to meet requirements of different operations; there is a fire hose outlet port for emergency firefighting and long-distance irrigation.
Electricity and gas are controlled centrally by the touch screen, with a good human-machine operation interface, which can be operated in the cab.
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | Dongfeng:8500,7610, 8230×2520×2900,2770,2840/Shaanxi Automobile:8710,8510,7850,7650×2550×3075 |
| Maximum/curb weight (kg) | Dongfeng:18000/8470, 8815, 8940,9220/Shaanxi Automobile:18000/9220,8815 |
| Chassis brand | Dongfeng/Shaanxi Automobile |
| Operating ability | |
|---|---|
| Face-to-face flushing width (m) | ≥24 |
| Cleaning width (m) | ≥3.8 |
| Sprinkling width (m) | ≥16 |
| Effective volume of the water tank (m³) | 8.85/8.58 |
| Vehicle performance | |
|---|---|
| Maximum gradient | Dongfeng：≥17%/Shaanxi Automobile：≥20% |
| Endurance mileage (km) | Dongfeng/CATL：280/350(equivalent speed method)/Dongfeng/EVE：280/365(equivalent speed method)/Shaanxi Automobile/CATL：210(equivalent speed method) |
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 120/200 |
| Motor rated/peak torque (N·m) | 1000/2400 |
| Battery brand/capacity (kWh) | Dongfeng/CATL：200.54,255.48/Dongfeng/EVE：198.45,242.88/Shaanxi Automobile/CATL：210.56 |
