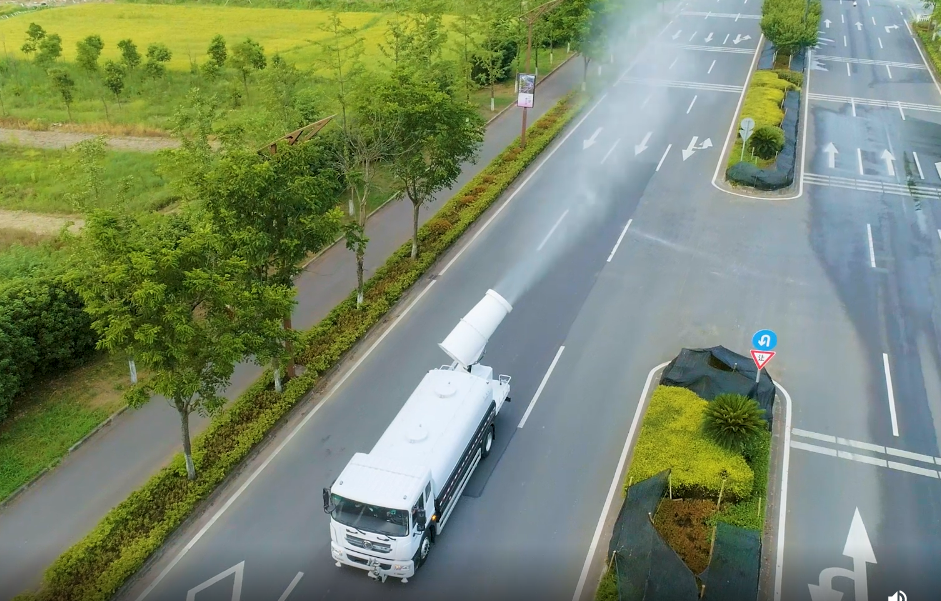

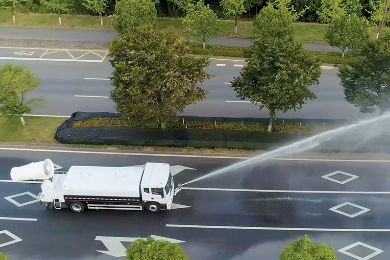

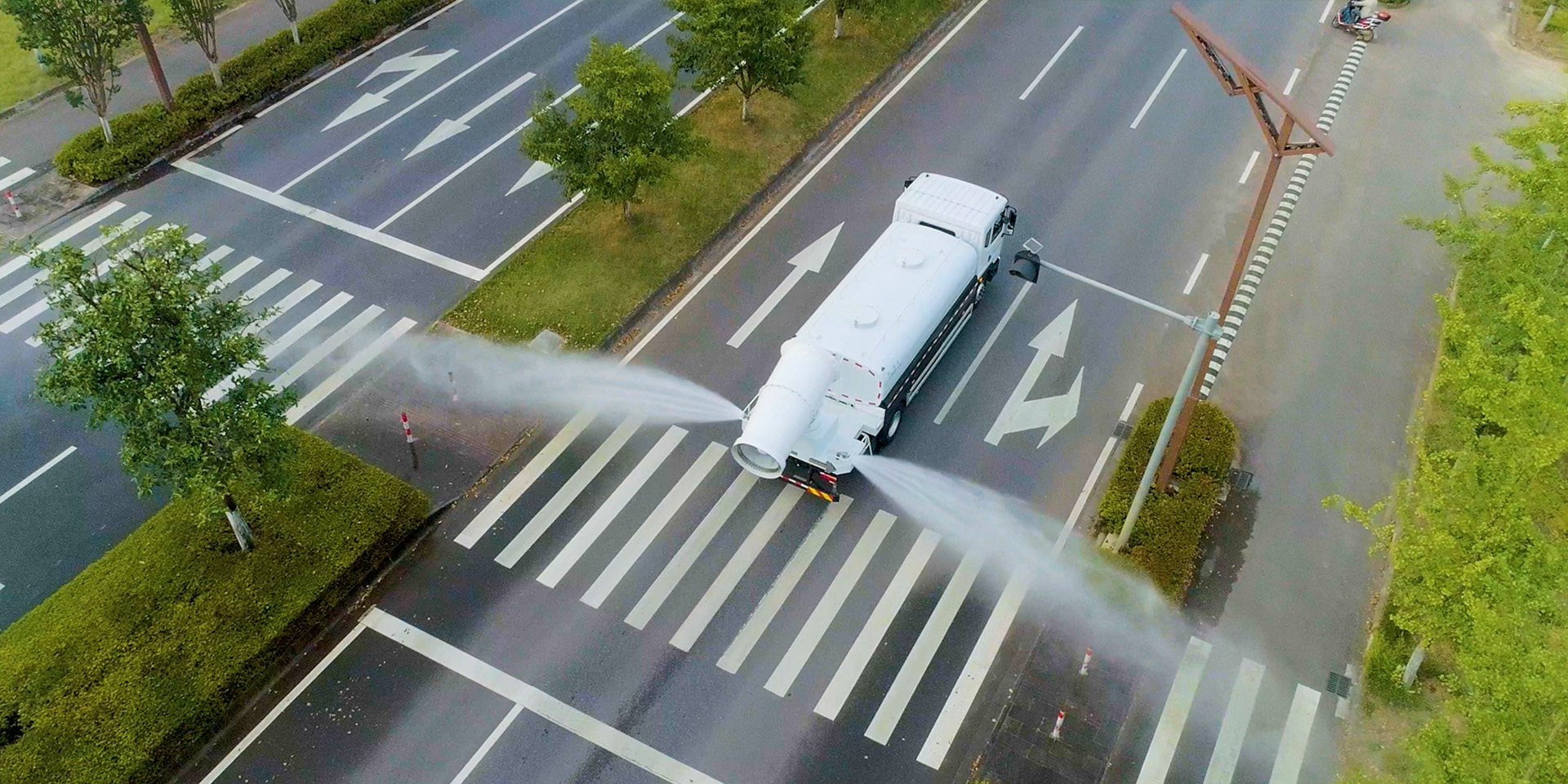

It is suitable for road maintenance, road flushing, dust reduction through water sprinkling, and green belt watering in urban roads (main roads), highways, expressways, bridges, squares, tunnels, airports, docks, residential communities and other places. It is also suitable for dust reduction and water sprinkling in construction sites, factories, and coal yards.
Water tank volume (m³)
Sprinkling width (m)
Operating time (h)
It is suitable for road maintenance, road flushing, dust reduction through water sprinkling, and green belt watering in urban roads (main roads), highways, expressways, bridges, squares, tunnels, airports, docks, residential communities and other places. It is also suitable for dust reduction and water sprinkling in construction sites, factories, and coal yards.

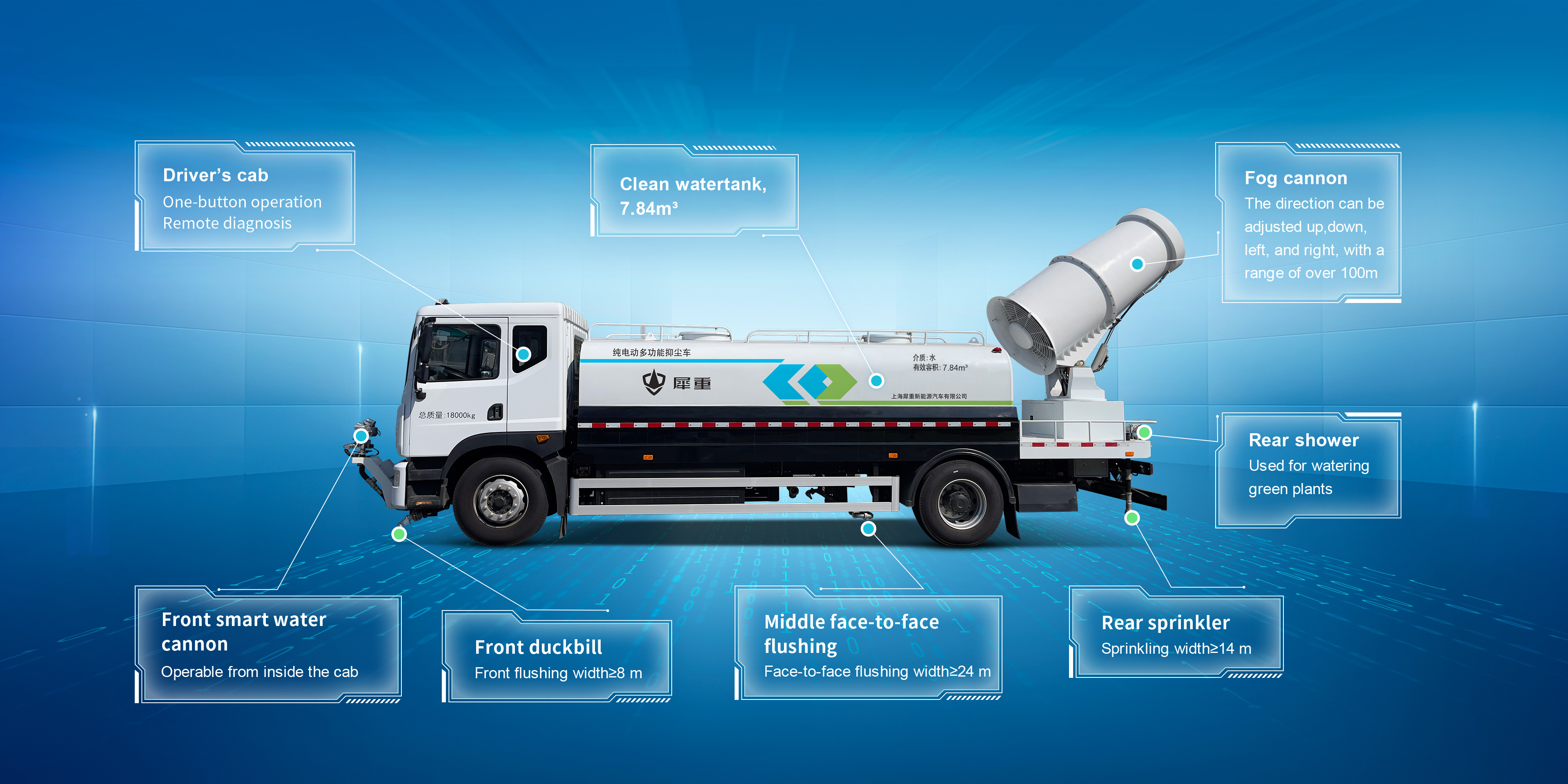

The sprayer adopts a double water ring design, which can be controlled separately to achieve an adjustable flow rate of 0-200L/min.

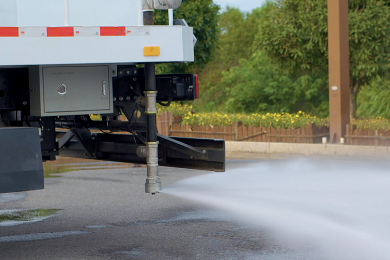

The low-pressure cleaning function is operated in the cab and does not require multiple people to cooperate. The fog cannon can be operated remotely from a distance.

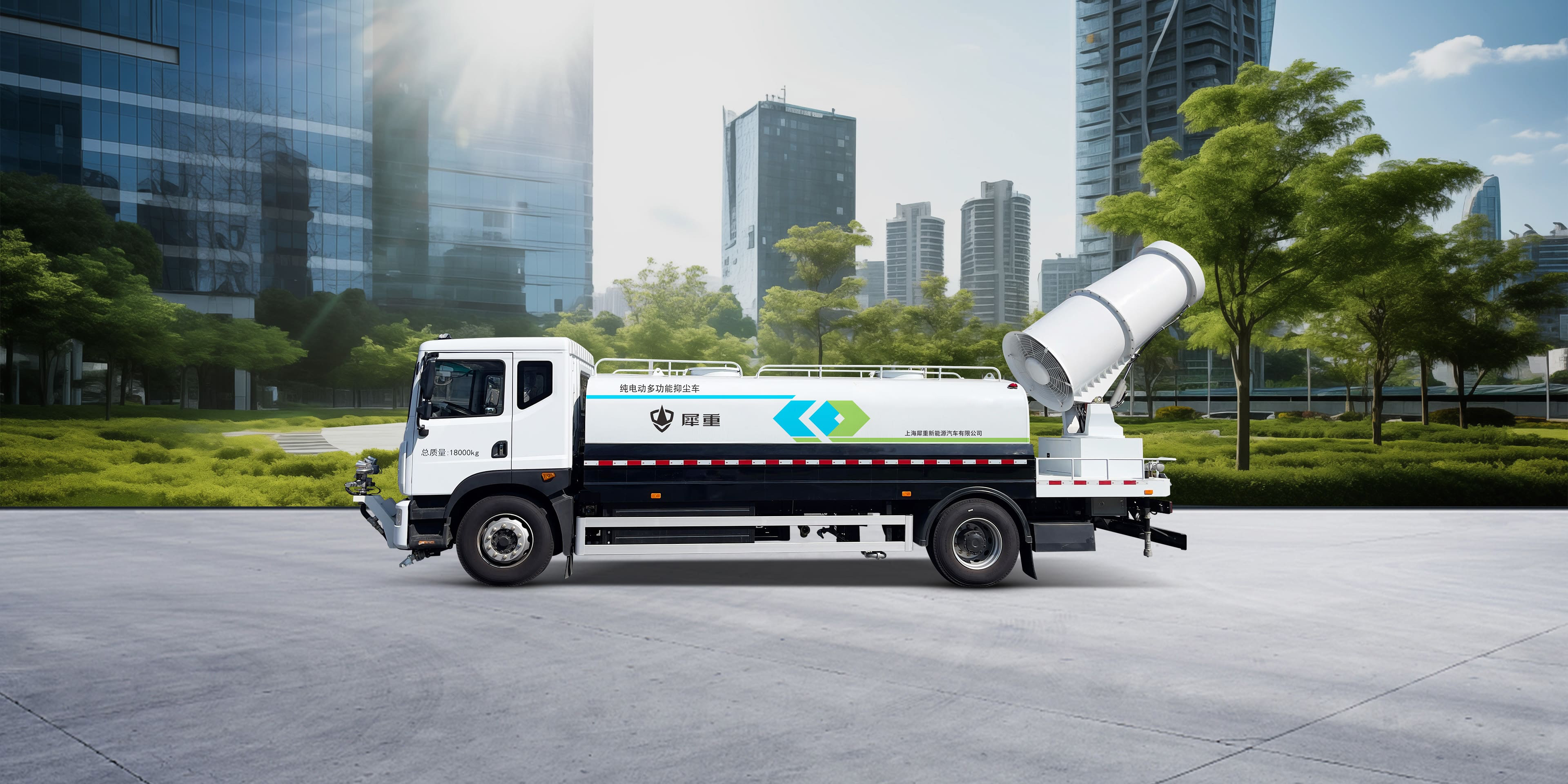

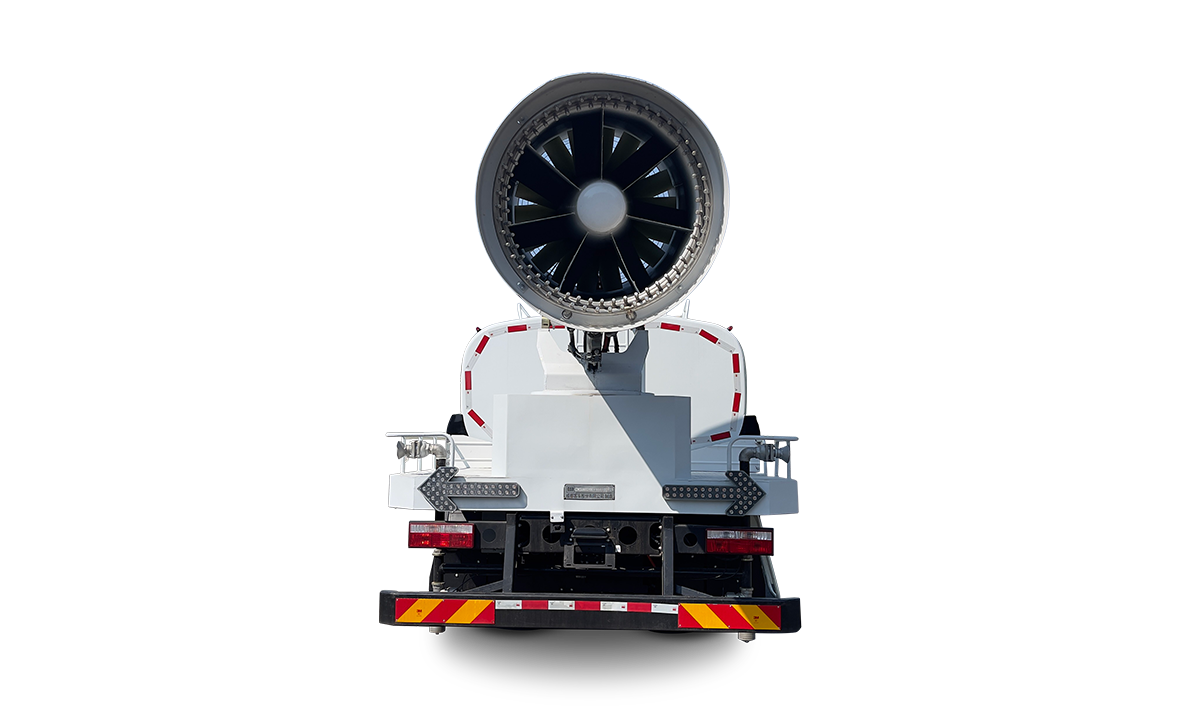

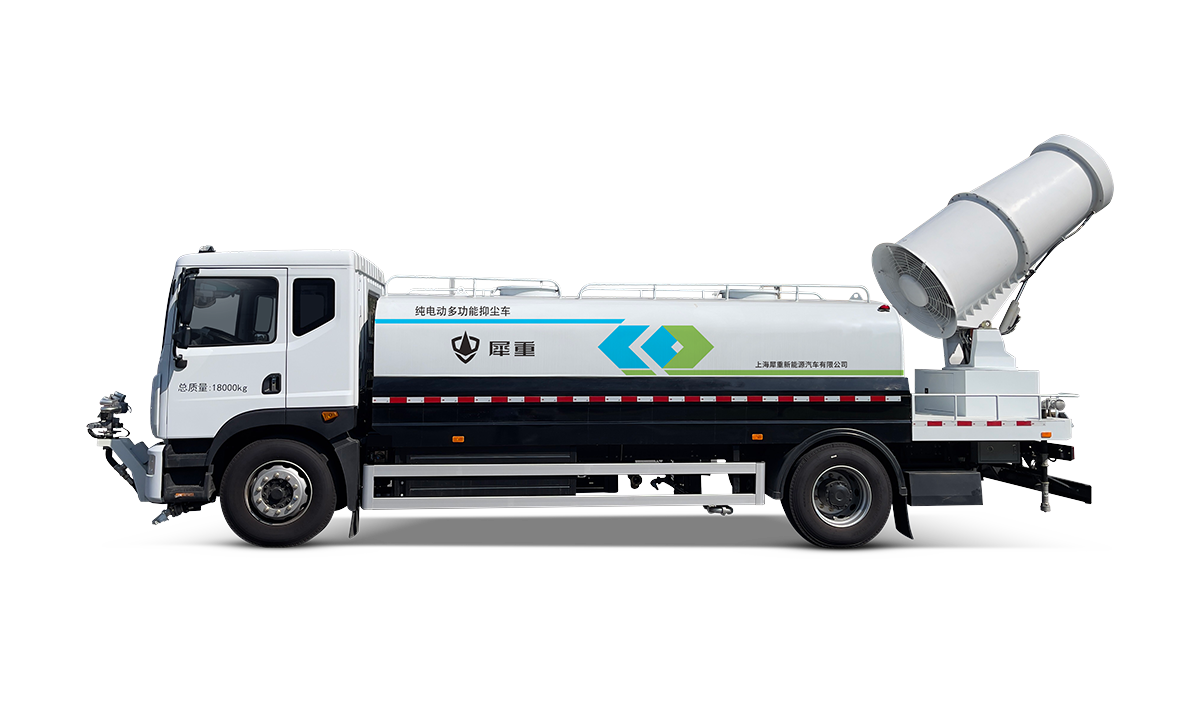

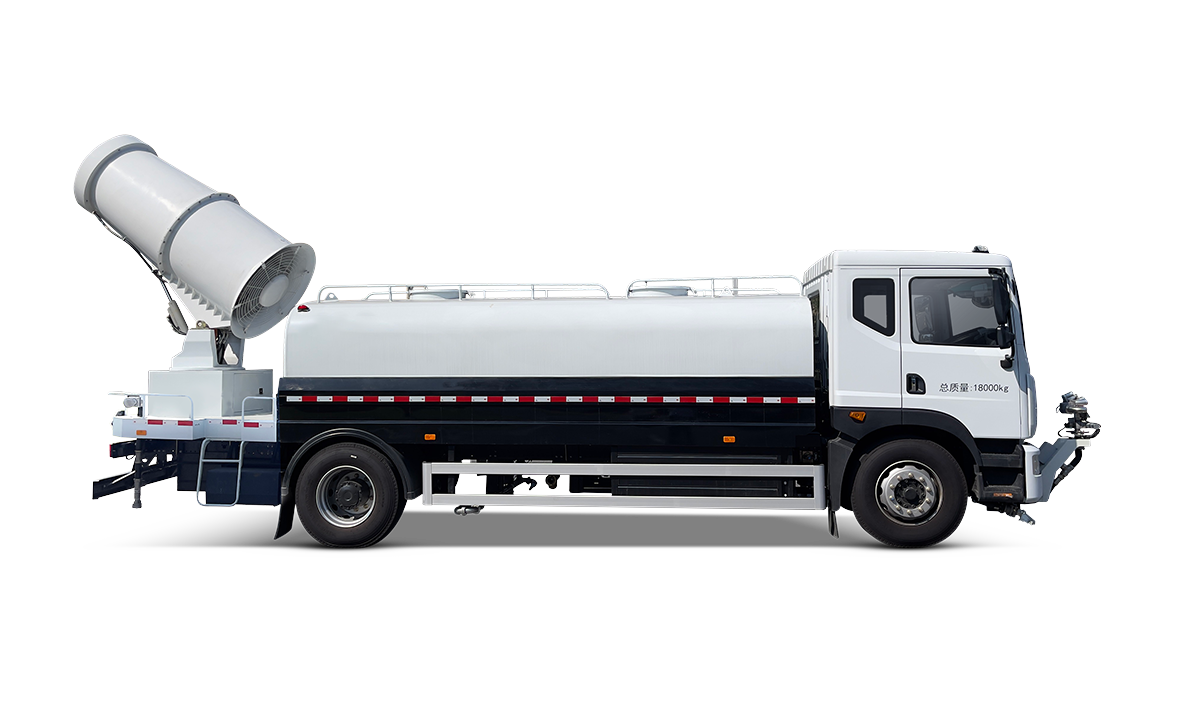

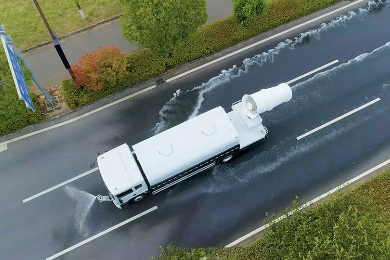

It is equipped with an air-driven electric fog cannon with a spray range over 100 m. The fog cannon can move horizontally by ±90° and vertically by -10°to 55°.
The upperstructure water pump and spray fan are directly driven by a high-efficiency axial magnetic field motor, which consumes less power. The low-pressure cleaning system is equipped with a three-speed controllable motor, which can be adjusted according to actual road conditions without wasting power.

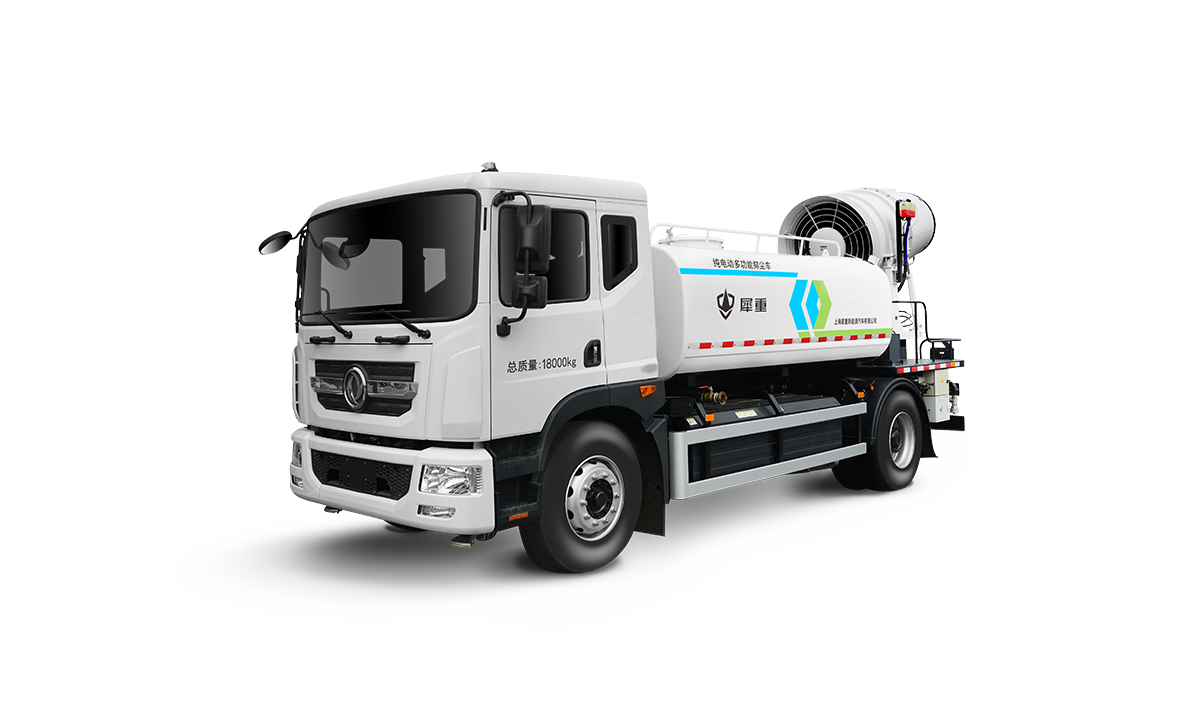

| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 8890,11260×2520×3550,3650 |
| Maximum/curb weight (kg) | 18000/9975,10375,10900 |
| Chassis brand | Dongfeng |
| Operating ability | |
|---|---|
| Water tank volume (m³) | 7.84/6.9 |
| Sprinkling width (m) | ≥14 |
| Operating time (h) | ≥8 |
| Fog cannon range (m) | ≥100 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | 350/450(equivalent speed method) |
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 120/200; 115/230(optional 255.48kWh) |
| Motor rated/peak torque (N·m) | 1000/2400; 500/1200(optional 255.48kWh) |
| Battery brand/capacity (kWh) | CATL/255.48,300.8 |
