7T Road Sweeper
This product is suitable for urban roads, highways, expressways, bridges, squares, tunnels, airports, docks, towns, and unit communities.
-
1
Water tank volume (m³)
-
2.5
Sweeping width (m)
-
≥10
Comprehensive operating time (h)

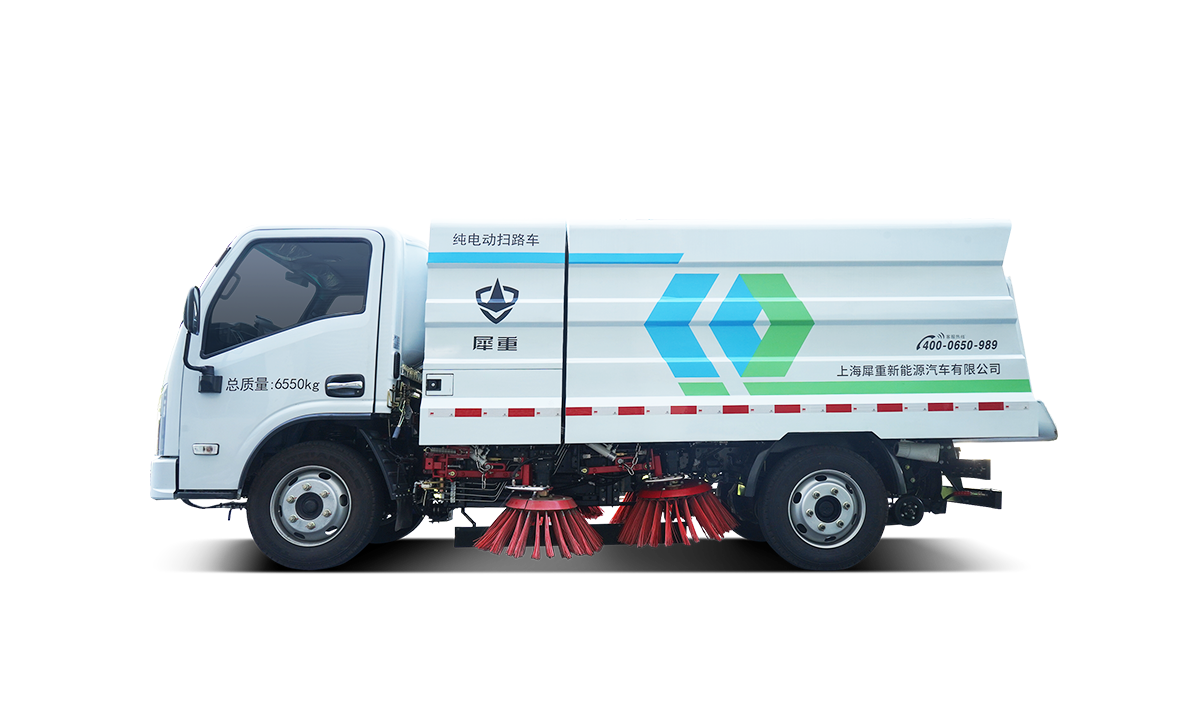

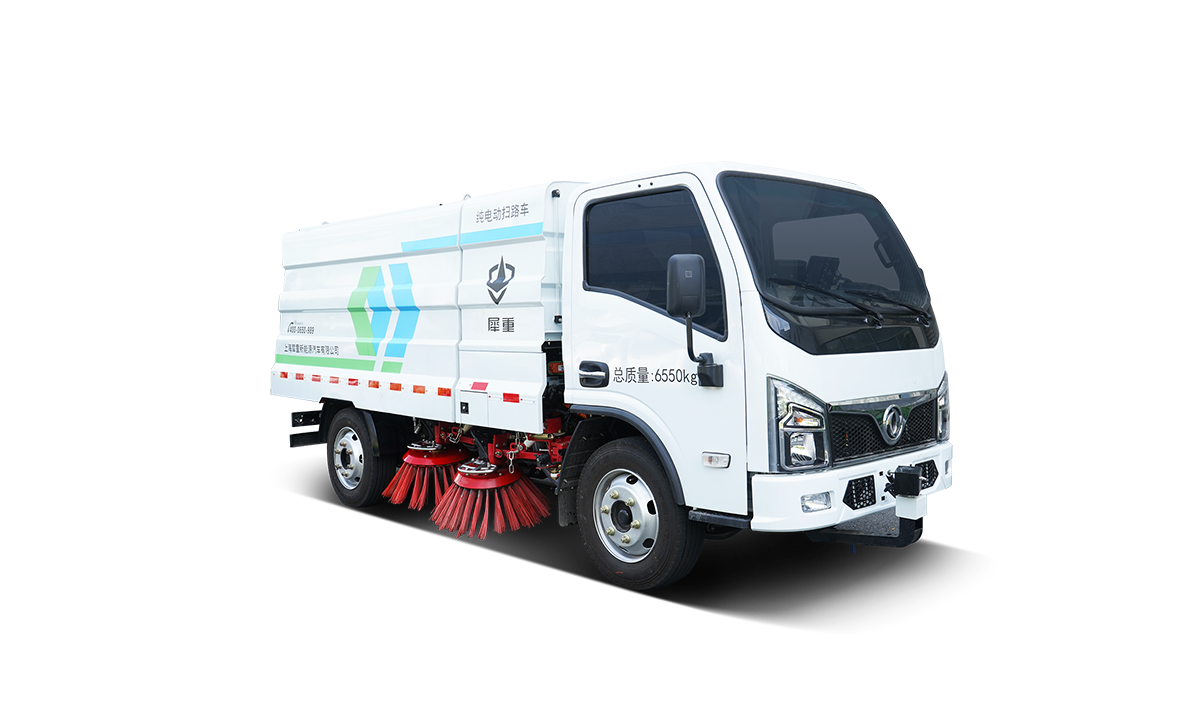

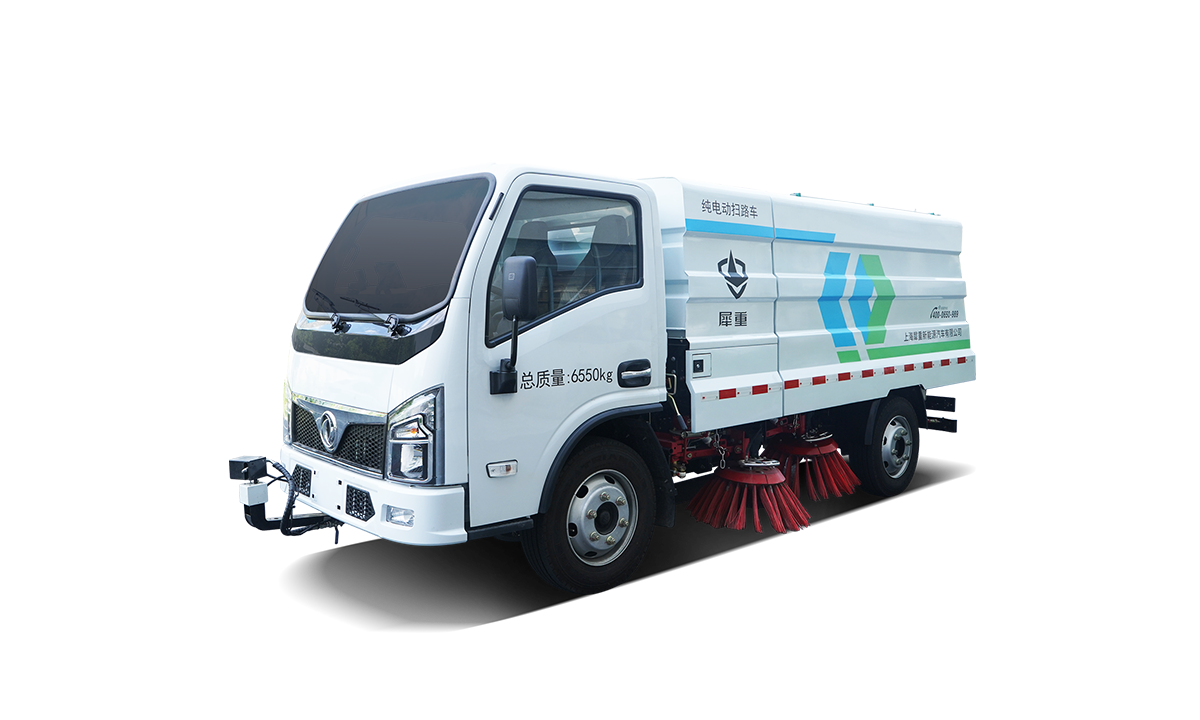

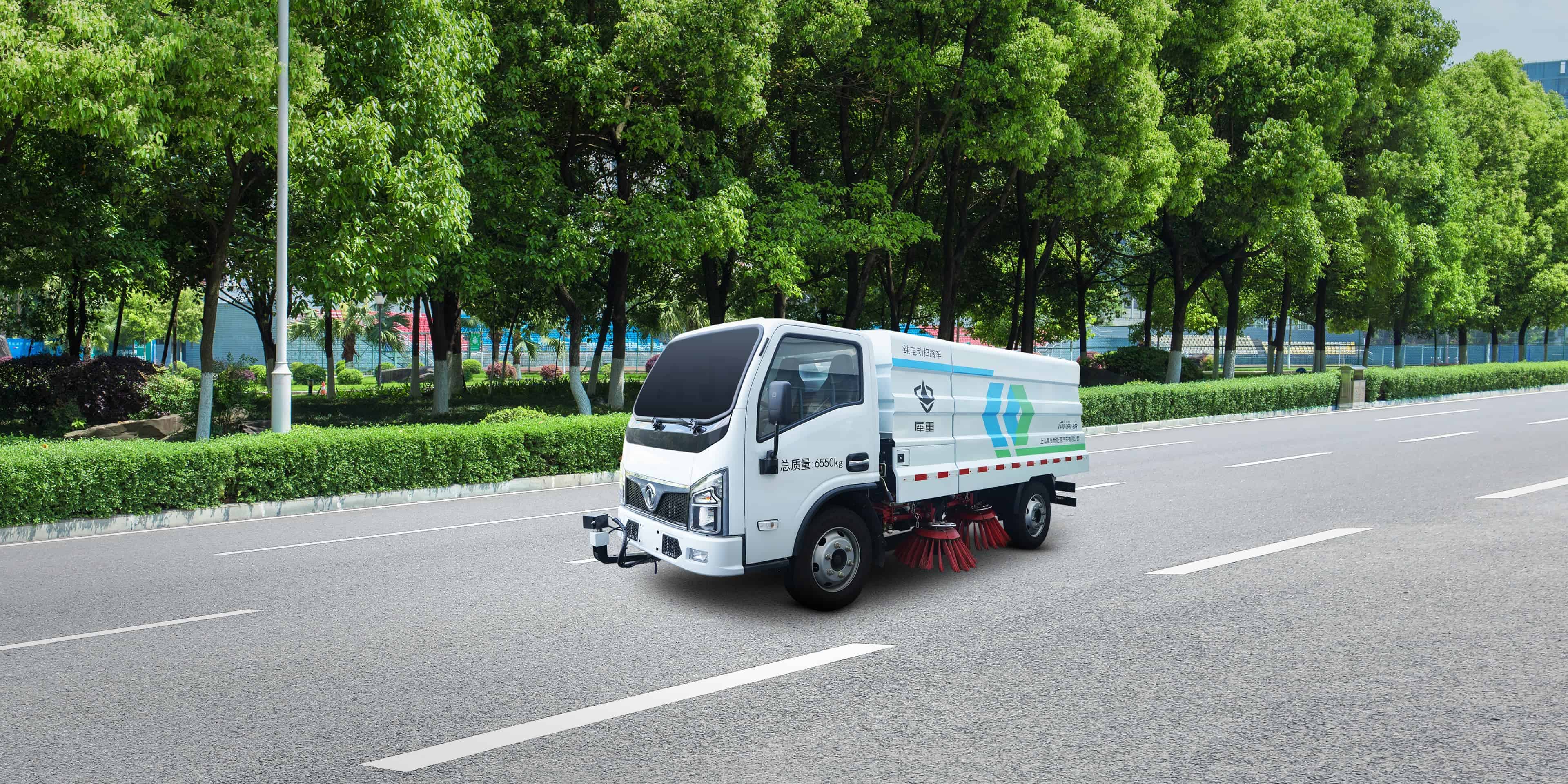

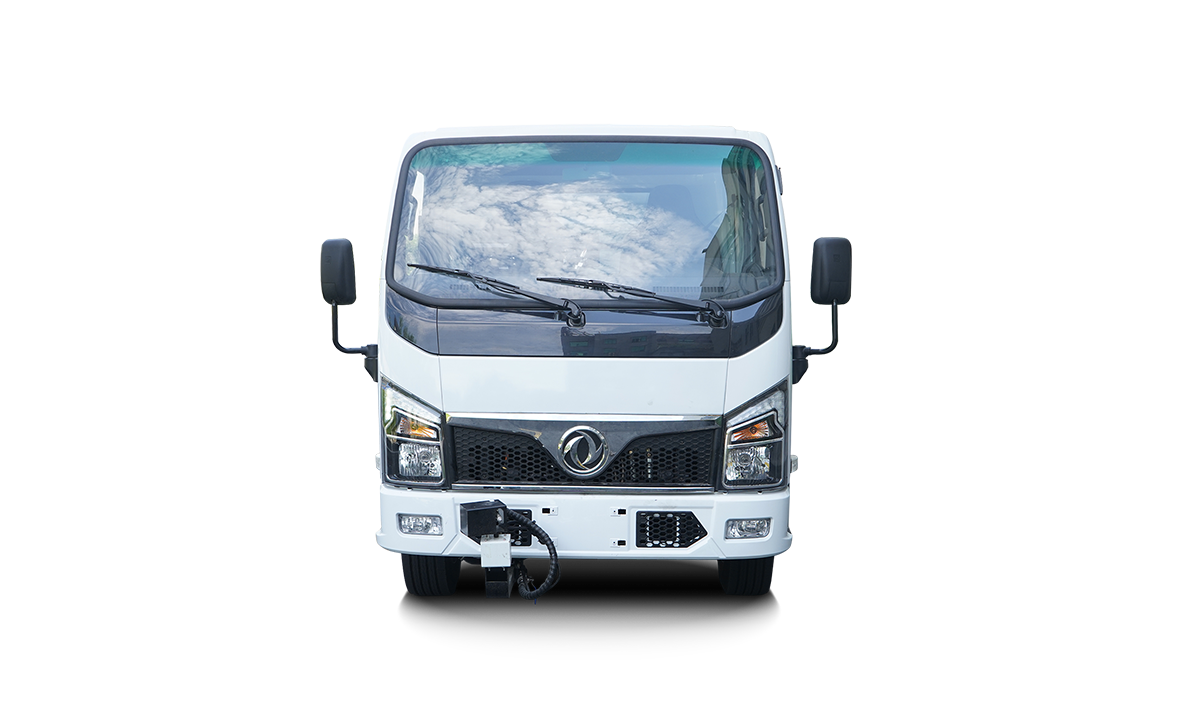

Vehicle appearance
Product introduction
This product is suitable for urban roads, highways, expressways, bridges, squares, tunnels, airports, docks, towns, and unit communities.

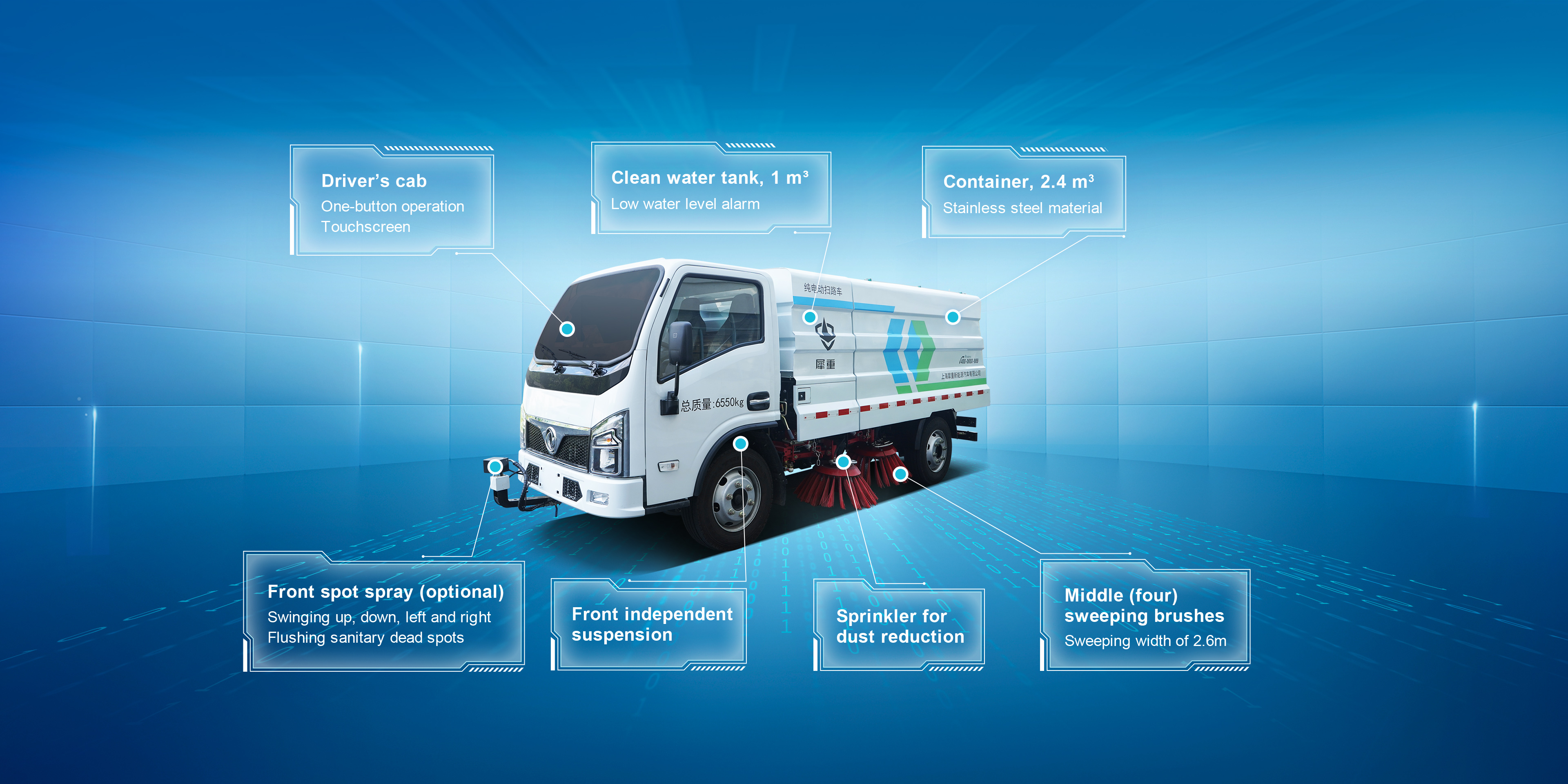

Product features
-
Excellent operation results
Combining sweeping/suction/spraying, it achieves high cleaning rate in a single operation, and it can suck debris with a maximum diameter of 110 mm.
-

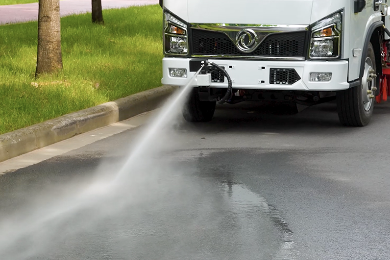

Rich optional configurations
Optional front high-pressure spot spray/hand-held high-pressure spray gun expands vehicle functions and makes one vehicle multi-purpose.
-

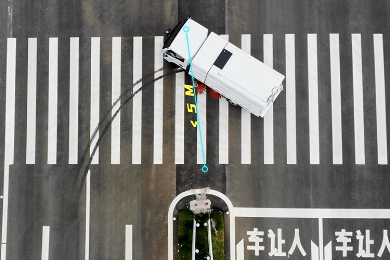

Multiple sweeping modes
It has one-button operation modes of left sweep, right sweep and full sweep to meet different sweeping width requirements.
-

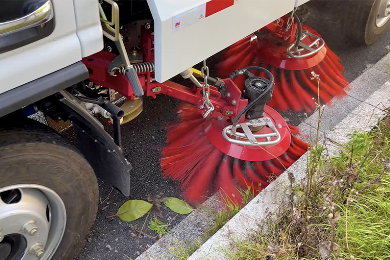

Movable front sweeping brush
The left and right front sweeping disks can be swung out to clean the road surface, curbs, steps and expansion joints.
Configuration parameters
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 5760,5500×1740×2210 |
| Maximum/curb weight (kg) | 6550/4700 |
| Chassis brand | Dongfeng |
| Operating ability | |
|---|---|
| Water tank volume (m³) | 1 |
| Sweeping width (m) | 2.5 |
| Comprehensive operating time (h) | ≥10 |
| Volume of container (m³) | 2.4 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | 300(equivalent speed method) |
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 60/120 |
| Motor rated/peak torque (N·m) | 164/420 |
| Battery brand/capacity (kWh) | CATL/105.28 |
Note: The product introduction should be as detailed as possible on the basis of available information. Seazon Motor Co., Ltd. reserves the right to modify and adjust the product parameters, configurations, materials, colors, and other information on the model at any time. Therefore, the product introduction is for reference purposes only, and the appearance, configuration, color, and other specifics of actual vehicles sold may vary.
