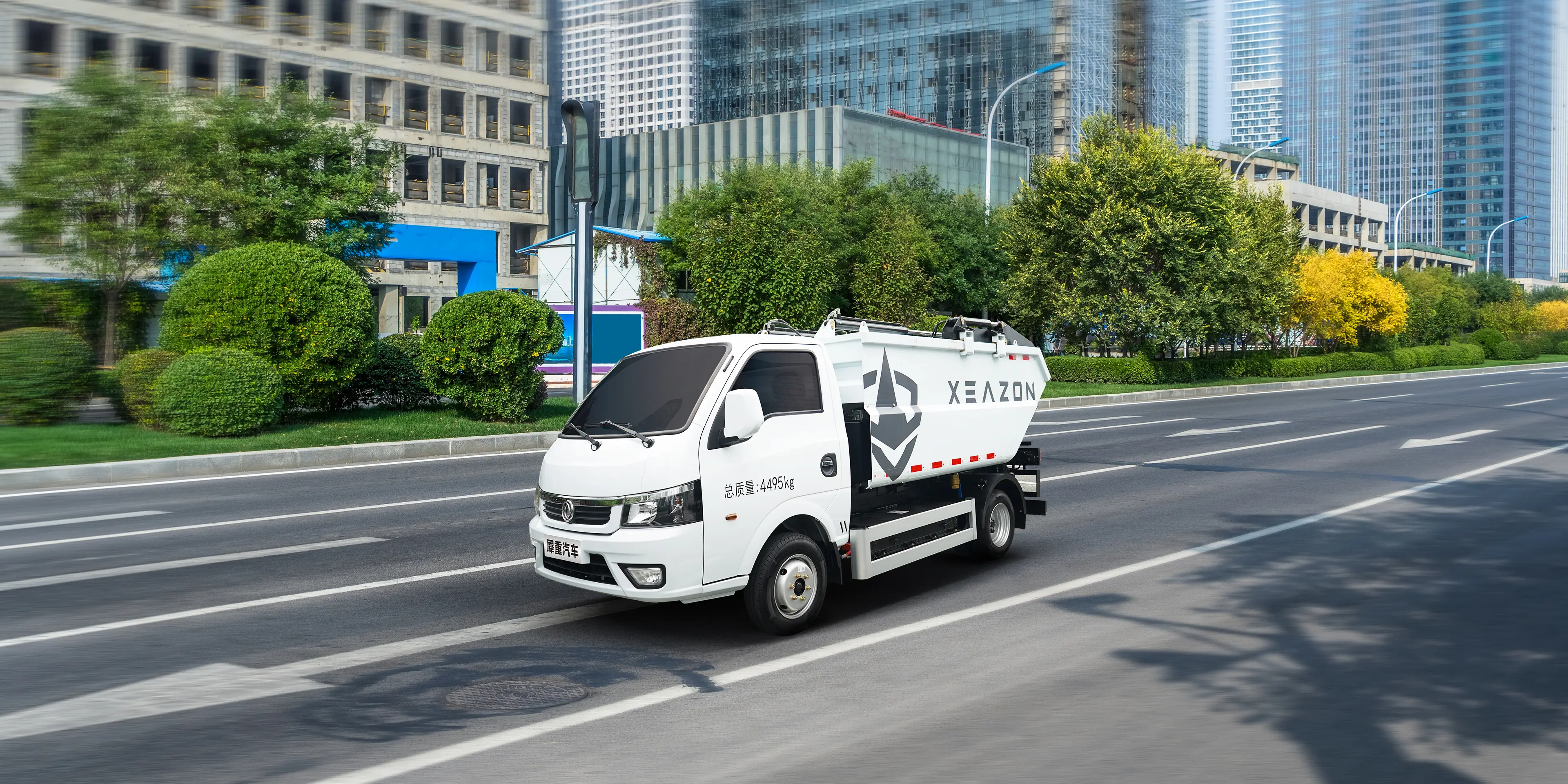

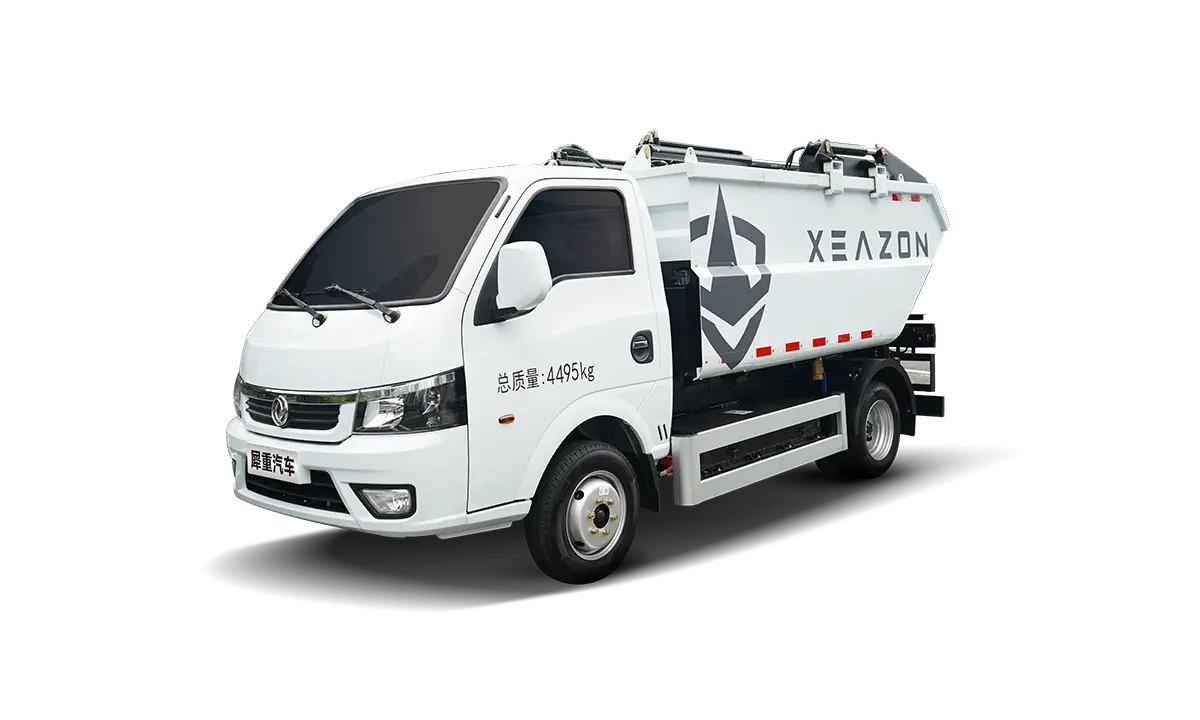

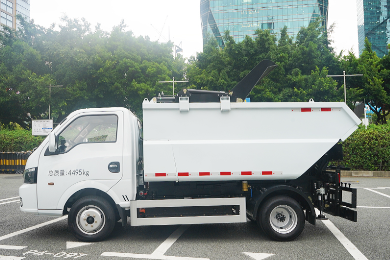

This product has the functions of garbage collection, compression, and transfer. Guided by the modular design concept, the vehicle has stable structure, beautiful appearance and excellent performance, and can best meet the modern city's requirements for garbage collection and transportation operations, making it suitable for garbage collection and transport in both urban and rural areas.
Effective volume of the container (m³)
Unloading cycle time (s)
Compression cycle time (s)
The vehicle size is smaller than similar products while ensuring all functions, meeting the ability to pass through back streets and alleys.
The volume of the container exceeds that of similar products by 5%-20%, improving operating capabilities.

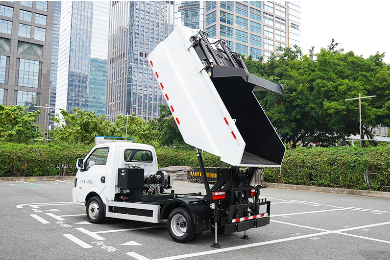

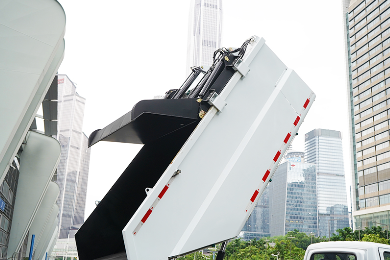

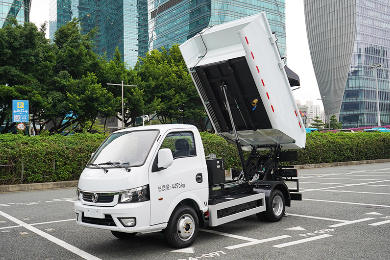

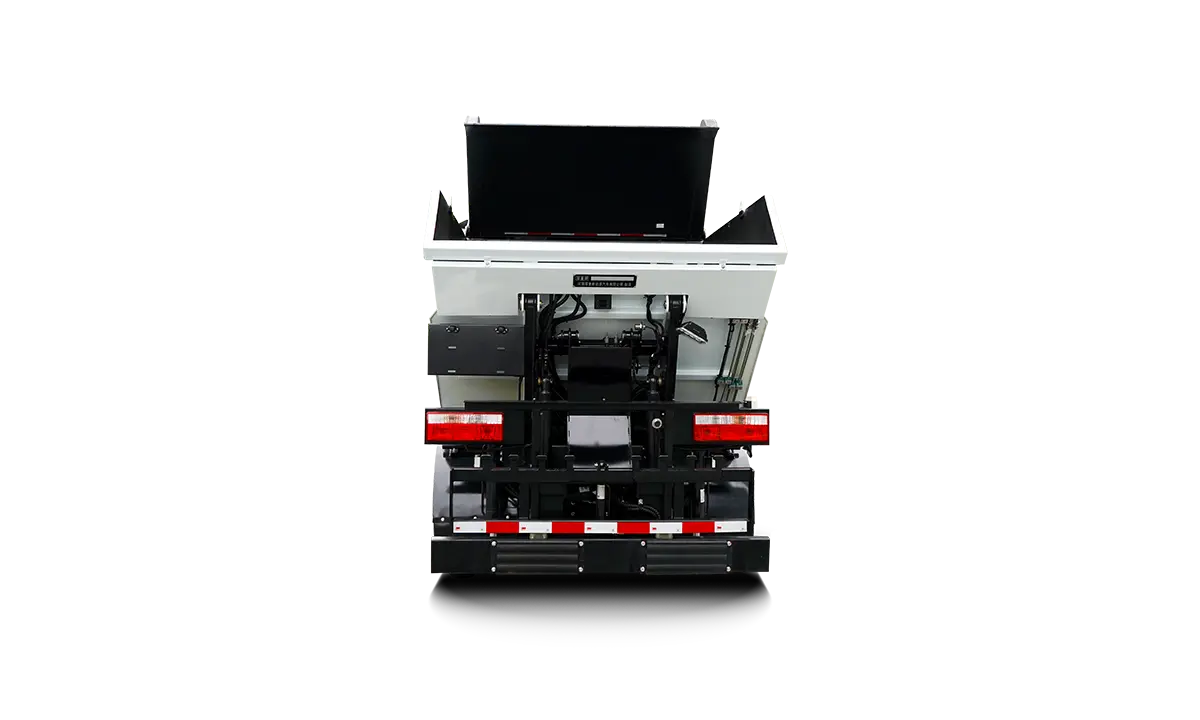

The feeding mechanism has a short feeding cycle time, ensuring high loading efficiency; it adopts a tipping unloading method with a large discharge angle, ensuring quick, clean unloading without residue.
During feeding, it first lifts the waste bin vertically and then tip it over to prevent leakage; the transport mode can seal the container with one key to avoid any garbage spillage during transport.
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 40/70 |
| Motor rated/peak torque (N·m) | 110/280 |
| Battery brand/capacity (kWh) | CATL/55.7 |
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 5250×1780×2300,2180 |
| Maximum/curb weight (kg) | 4495/3400,3245,3145 |
| Chassis brand | Dongfeng |
| Operating ability | |
|---|---|
| Effective volume of the container (m³) | 4.9 |
| Unloading cycle time (s) | ≤30 |
| Compression cycle time (s) | ≤20 |
| Feeding cycle time (s) | ≤15 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | 265(equivalent speed method) |
