10T Compression Garbage Trucks
The compression garbage truck has the functions of garbage collection, compression and transfer. It is suitable for the collection and transfer of domestic garbage in neighborhoods, schools, units, and streets.
-
6.5
Effective volume of the container (m³)
-
≤35
Unloading cycle time (s)
-
≤10
Compression cycle time (s)

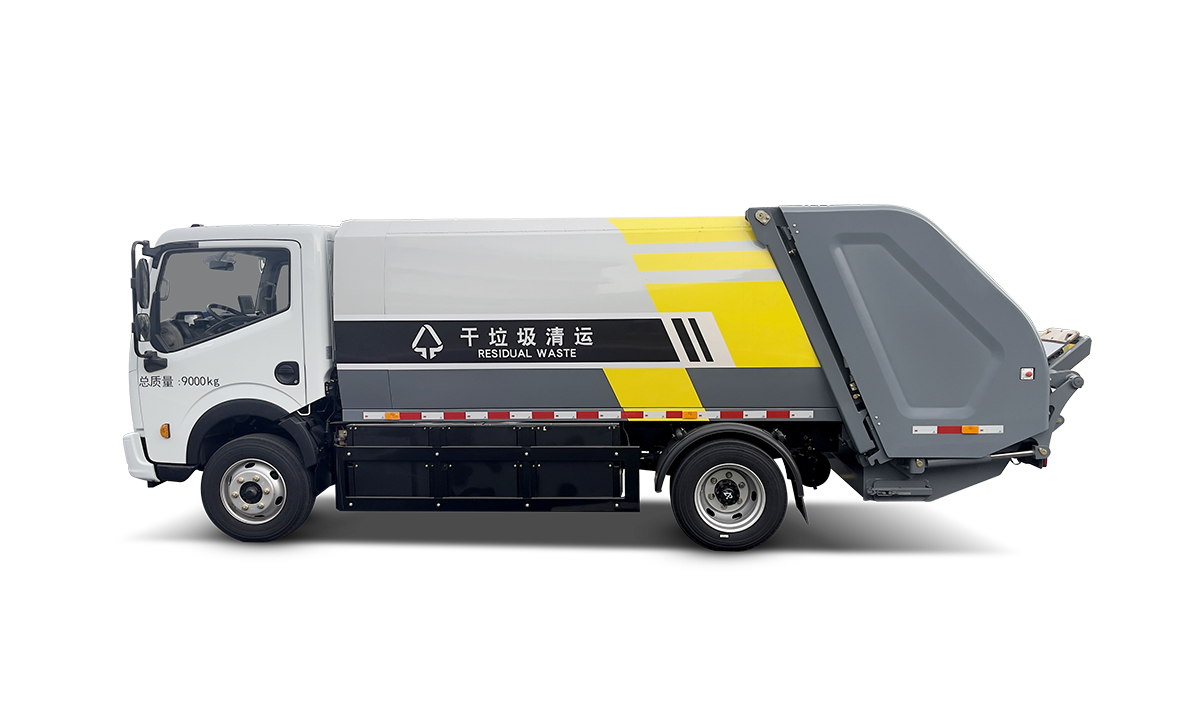

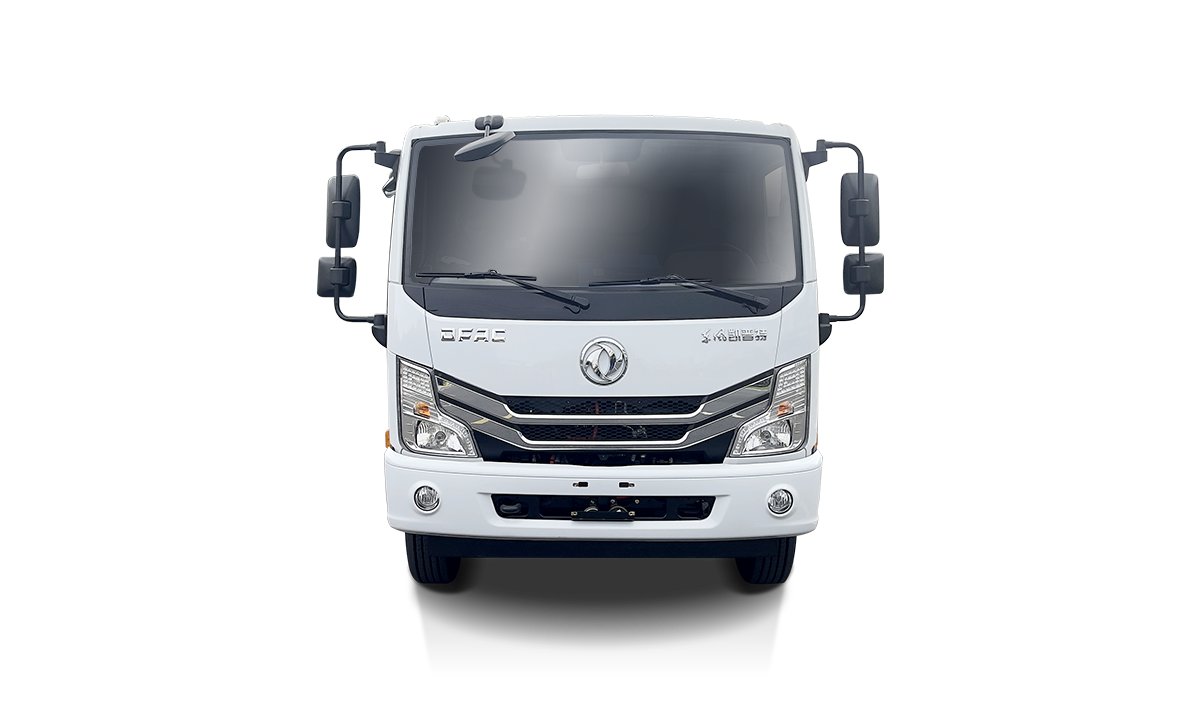

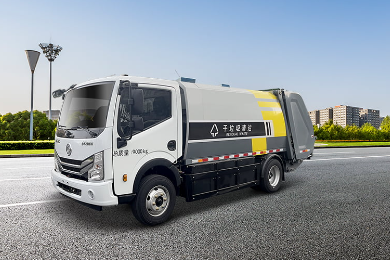

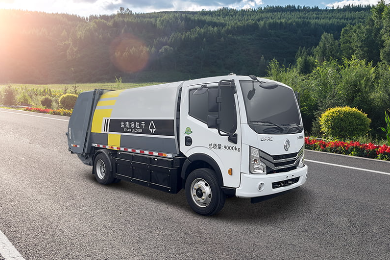

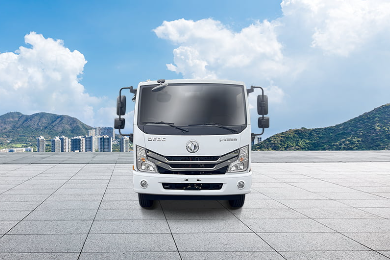

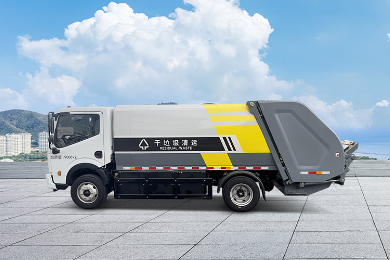

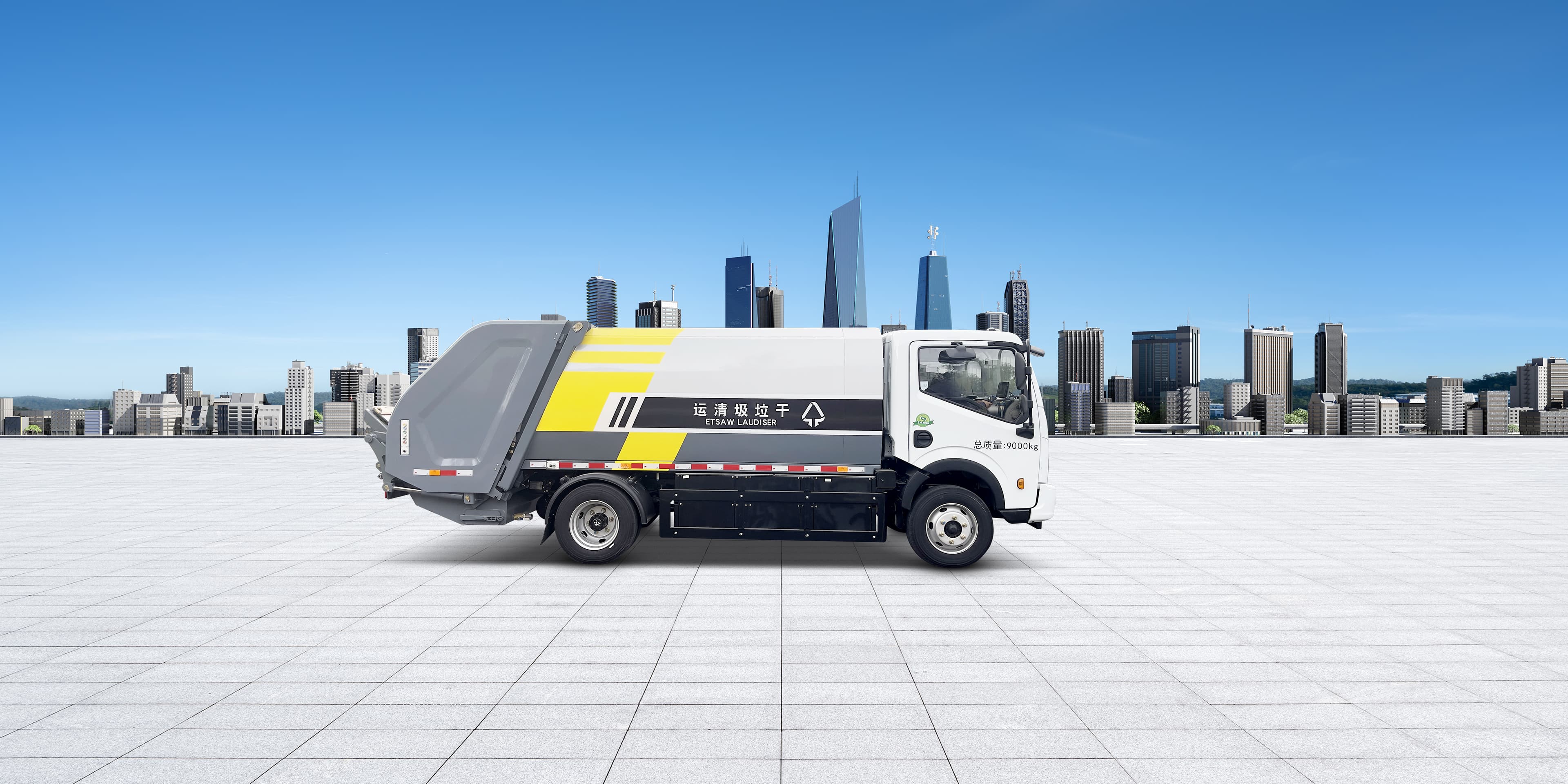

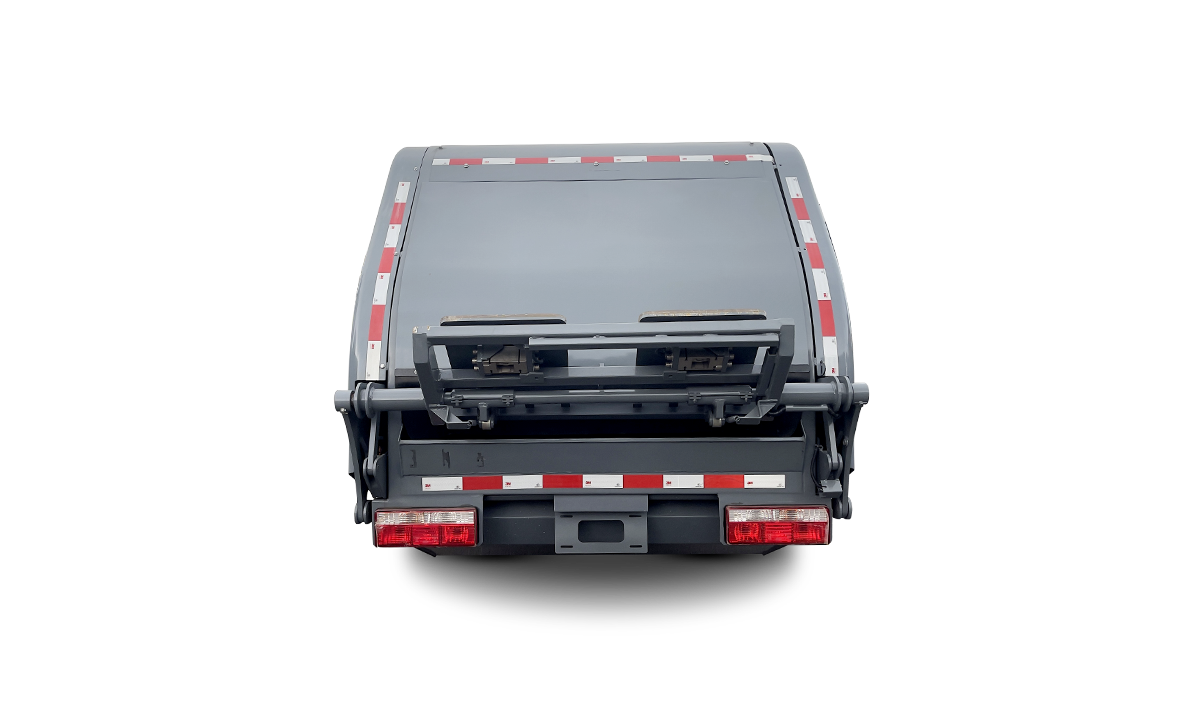

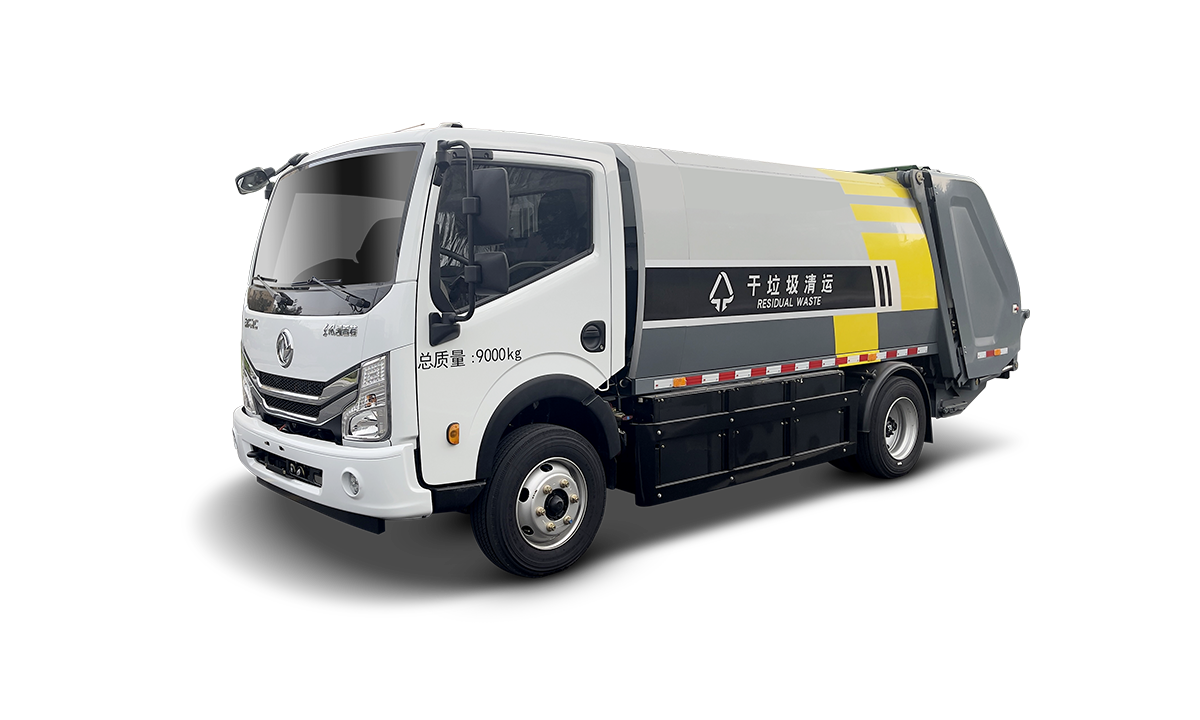

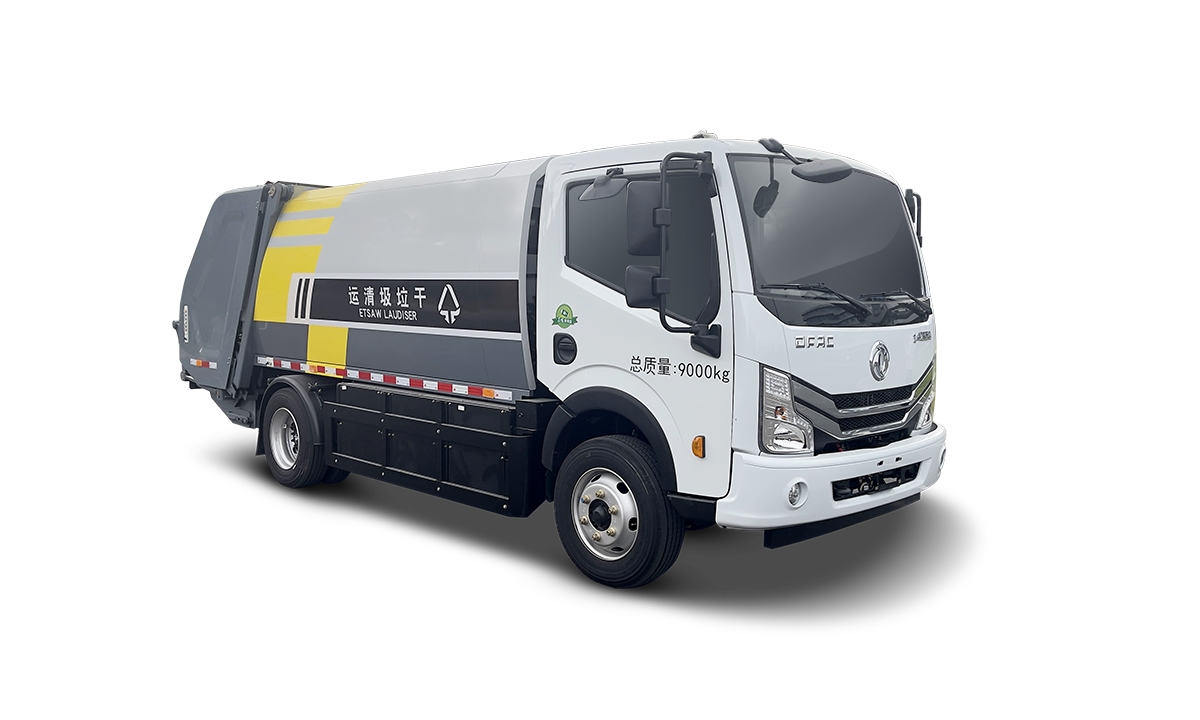

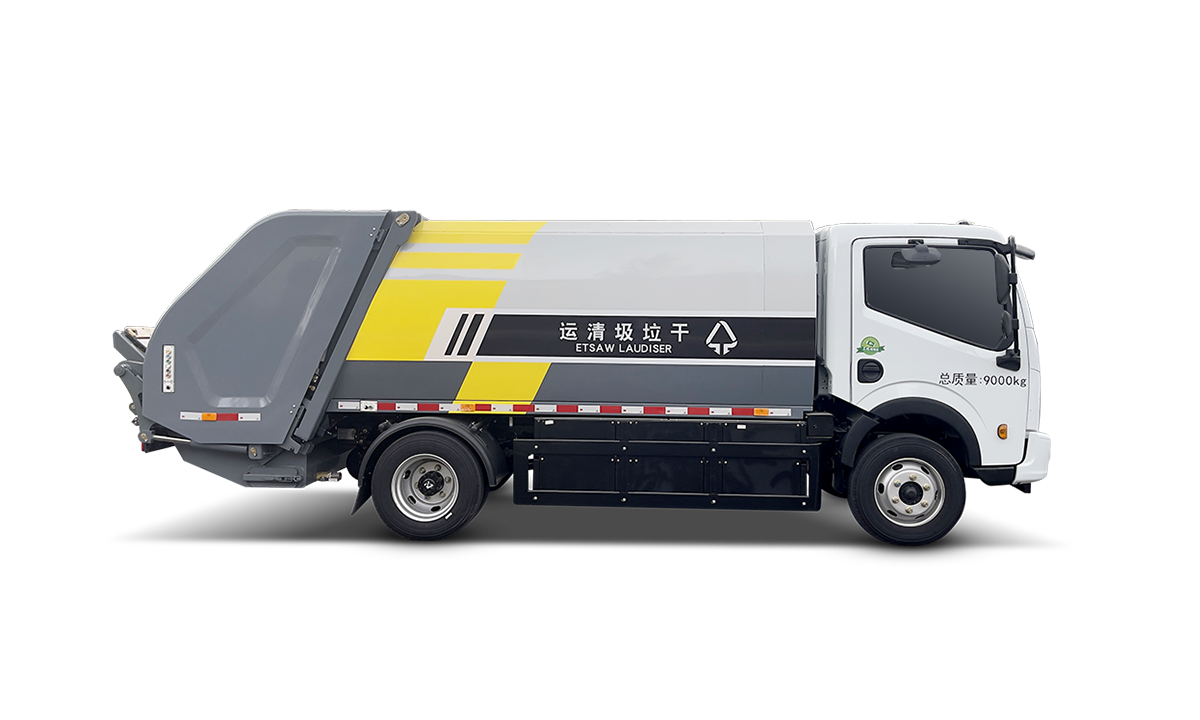

Vehicle appearance
Product introduction
The compression garbage truck has the functions of garbage collection, compression and transfer. It is suitable for the collection and transfer of domestic garbage in neighborhoods, schools, units, and streets.

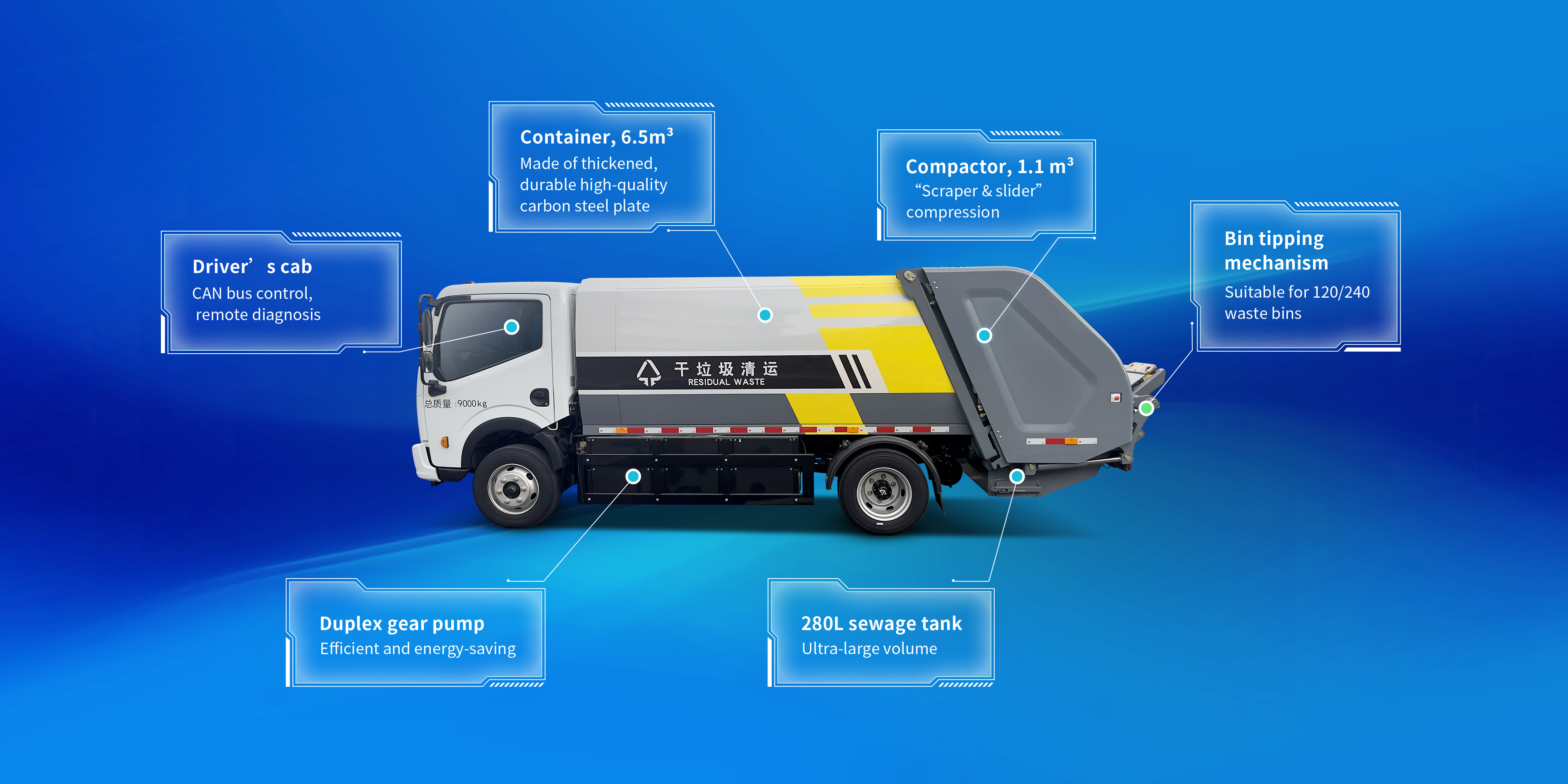

Product features
-
Compact vehicle size
The vehicle is optimized for layout design, ensuring all functions are maintained while having a shorter wheelbase. This feature is especially advantageous when driving on narrow roads such as in urban villages.
-
Large garbage loading capacity
It adopts two-way compression technology, with strong compression capacity and large compression ratio, and can accommodate more domestic waste.
-
Higher operating efficiency
The compression cycle and feeding cycle can operate at the same time without interfering with each other, and the feeding efficiency is high.
-
Leak prevention
It uses the adjustable sealing locking devices, to effectively prevent secondary pollution caused by sewage leakage. Additionally, it has water channels to address problems related to leaks.
Configuration parameters
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 92/150 |
| Motor rated/peak torque (N·m) | 400/800 |
| Battery brand/capacity (kWh) | CATL/162.28 |
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 6780×1980×2370 |
| Maximum/curb weight (kg) | 9900/6555 |
| Chassis brand | Dongfeng |
| Operating ability | |
|---|---|
| Effective volume of the container (m³) | 6.5 |
| Unloading cycle time (s) | ≤35 |
| Compression cycle time (s) | ≤10 |
| Feeding cycle time (s) | ≤7 |
| Vehicle performance | |
|---|---|
| Maximum gradient | 20% |
| Endurance mileage (km) | 300（equivalent speed method） |
Note: The product introduction should be as detailed as possible on the basis of available information. Seazon Motor Co., Ltd. reserves the right to modify and adjust the product parameters, configurations, materials, colors, and other information on the model at any time. Therefore, the product introduction is for reference purposes only, and the appearance, configuration, color, and other specifics of actual vehicles sold may vary.
