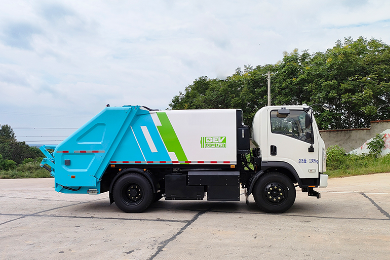

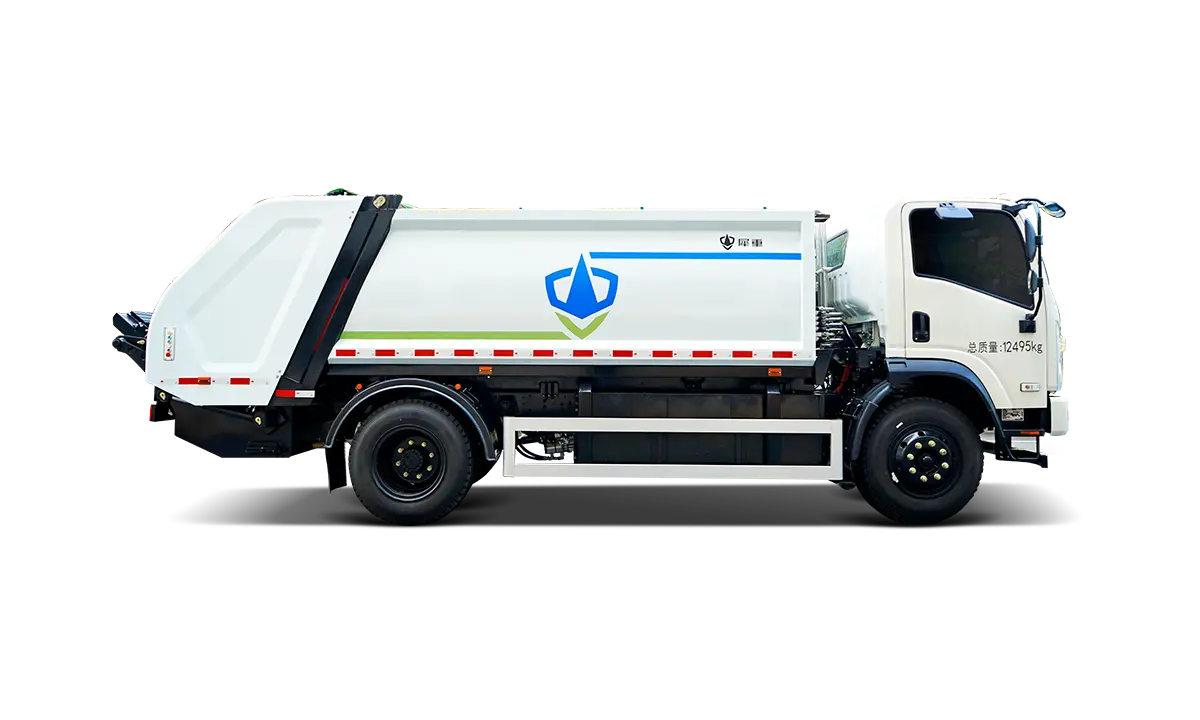

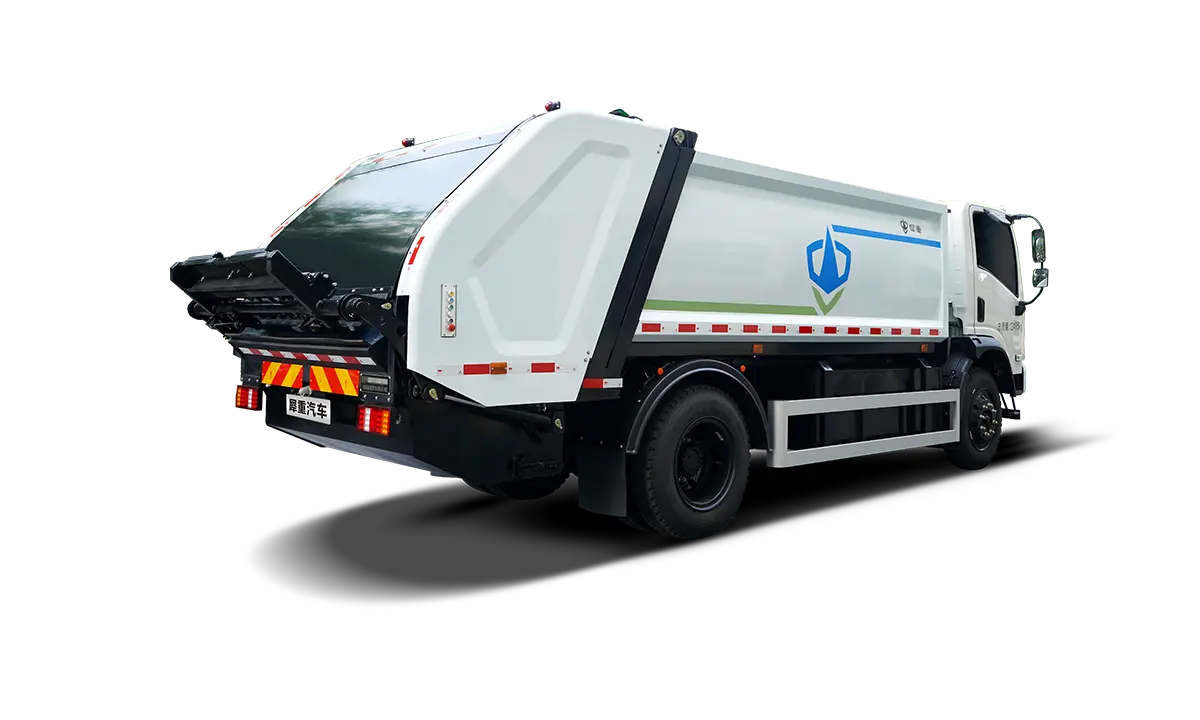

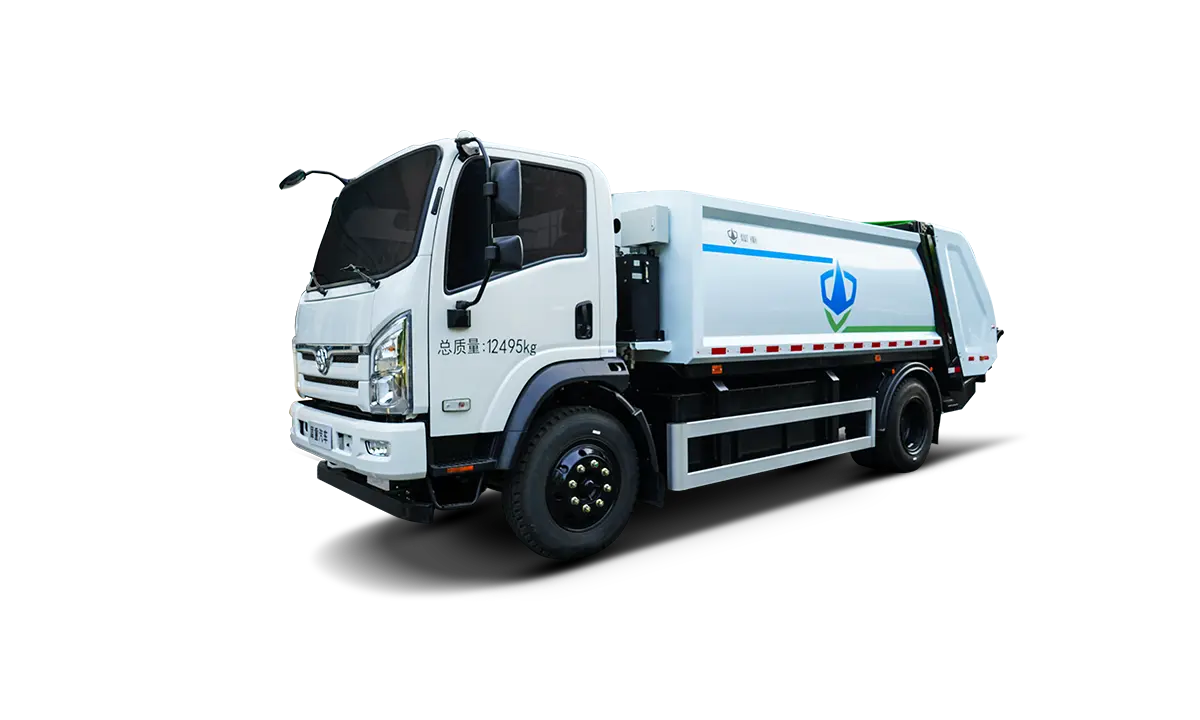

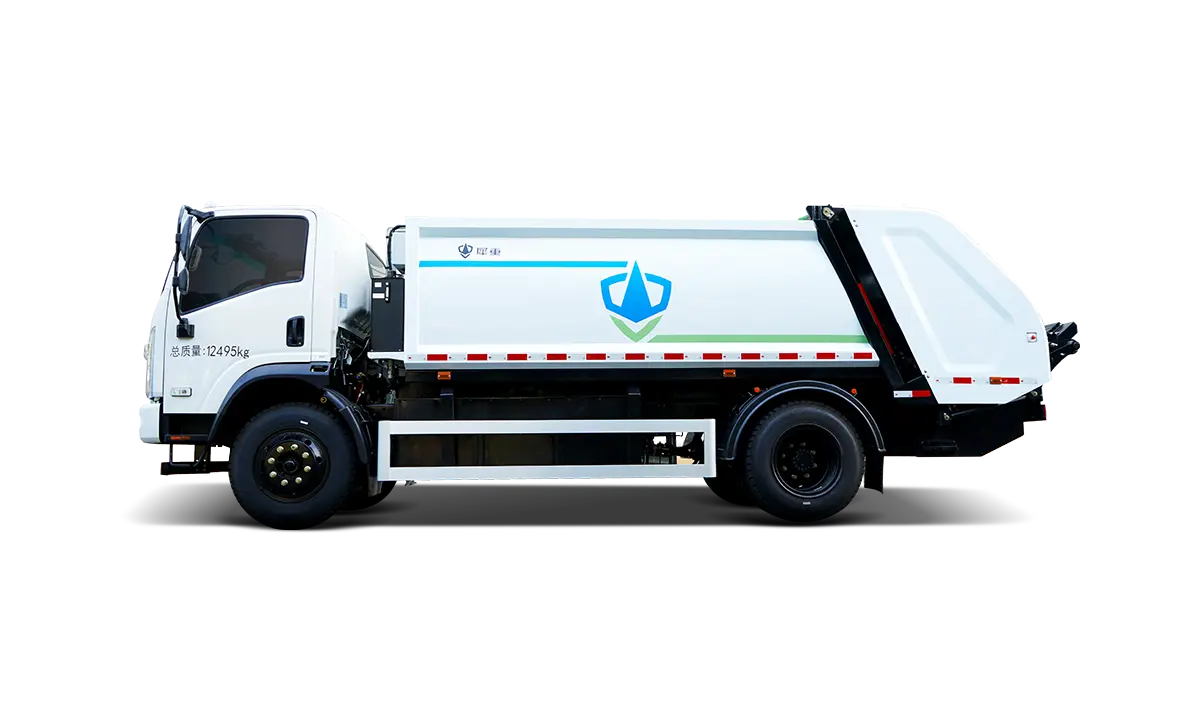

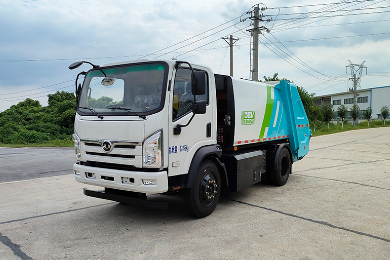

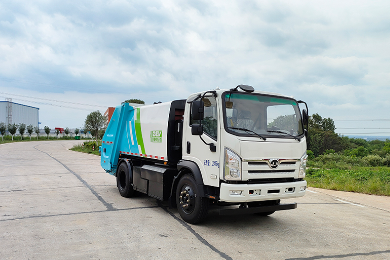

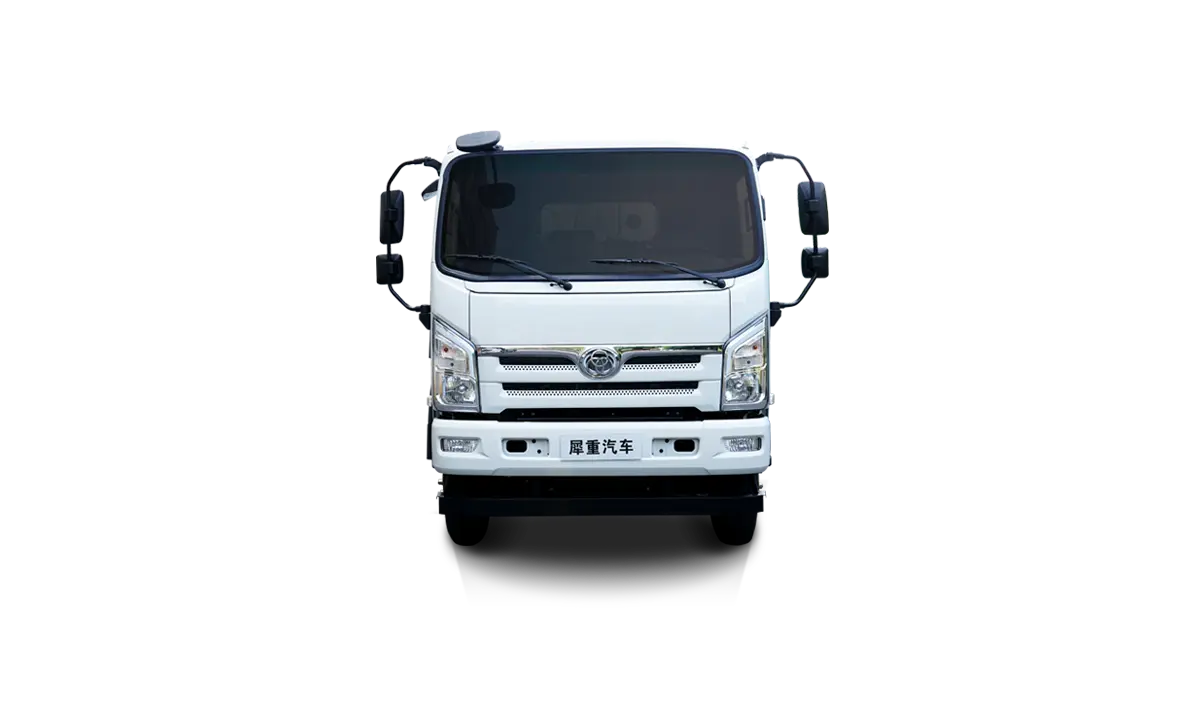

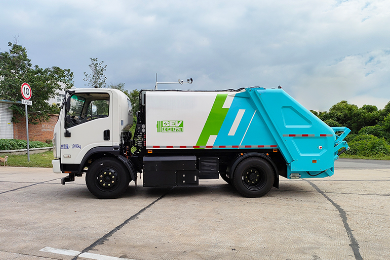

The compression garbage truck has the functions of garbage collection, compression and transfer. It is mainly suitable for the collection and transfer of bucketed, bagged, and bulk domestic garbage in urban residential areas, street communities, large factories and mines, and institutions and schools.
Effective volume of the container (m³)
Unloading cycle time (s)
Compression cycle time (s)
The compression garbage truck has the functions of garbage collection, compression and transfer. It is mainly suitable for the collection and transfer of bucketed, bagged, and bulk domestic garbage in urban residential areas, street communities, large factories and mines, and institutions and schools.
With an ultra-large container, it adopts two-way compression technology, with strong compression capacity, and can accommodate more domestic waste.
With the volume of the sewage tank far exceeding that of similar products, it has an advantage in compacting wet garbage with high moisture content.
It uses double hydraulic pumps, allowing both the compression and feeding cycles to work simultaneously without interference to each other, resulting in a high feeding efficiency.

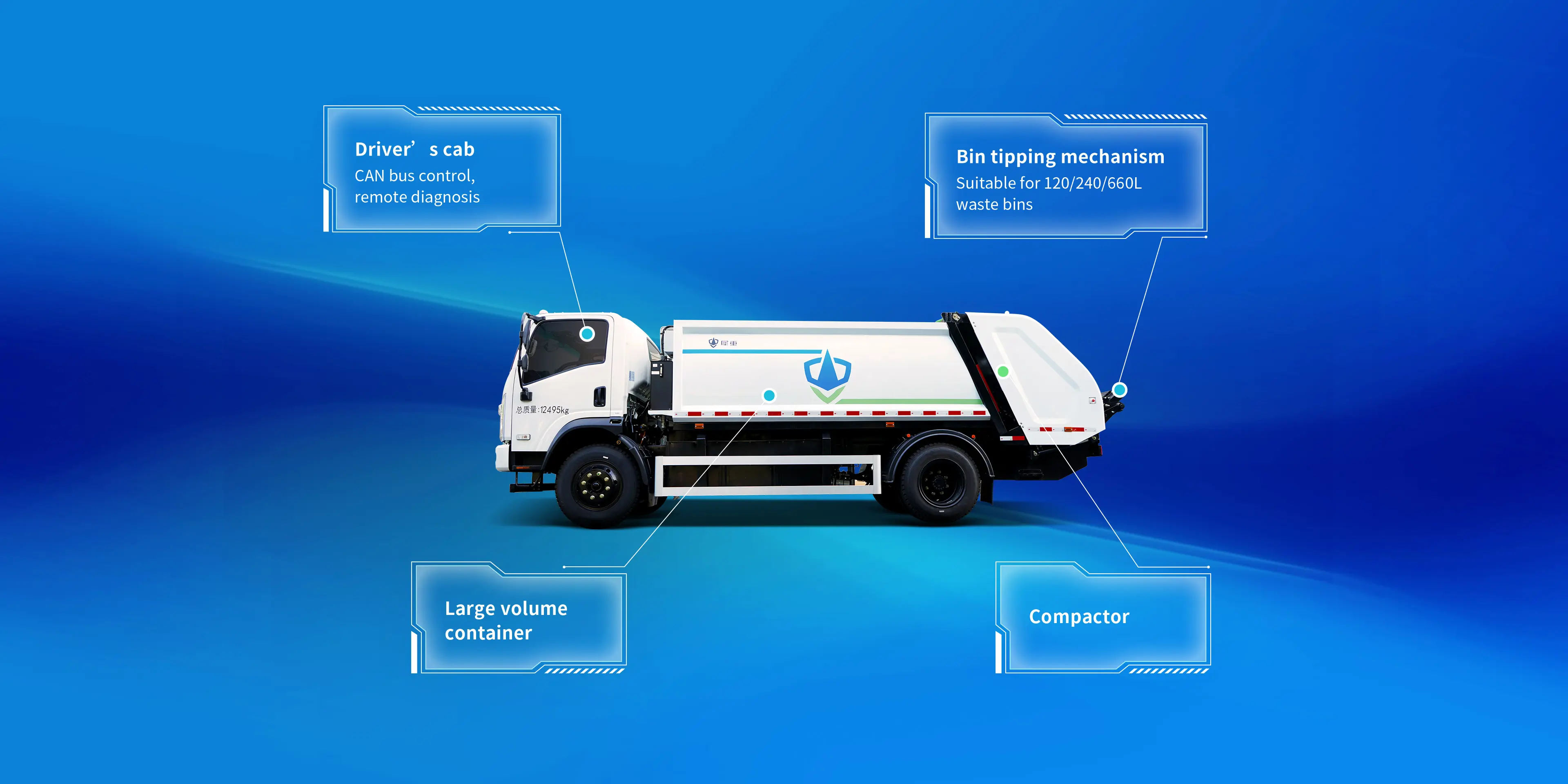

The operation control box in the driver’s cab can control the pushing and unloading operations and select the operating mode. The operation control box on the rear right side of the vehicle controls the operation of the compression mechanism and the bin lifting mechanism. They are easy to operate and can complete unloading without getting off the truck.
| Power system | |
|---|---|
| Motor rated/peak power (kW) | Shaanxi Automobile: 105/160; Seazon special chassis:125/230 |
| Motor rated/peak torque (N·m) | Shaanxi Automobile: 500/1050; Seazon special chassis:450/900 |
| Battery brand/capacity (kWh) | Shaanxi Automobile/CATL: 162.28; Seazon special chassis/CATL: 140.95 |
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | Shaanxi Automobile:7460×2410×2800; Seazon special chassis:6995,6605×2370×2615 |
| Maximum/curb weight (kg) | Shaanxi Automobile:12495/9410; Seazon special chassis:12495/7500,7300,7150 |
| Chassis brand | Shaanxi Automobile/Seazon special chassis |
| Operating ability | |
|---|---|
| Effective volume of the container (m³) | Shaanxi Automobile: 8; Seazon special chassis:7.5/10 |
| Unloading cycle time (s) | ≤45 |
| Compression cycle time (s) | Shaanxi Automobile: ≤24; Seazon special chassis:≤10 |
| Feeding cycle time (s) | Shaanxi Automobile: ≤10; Seazon special chassis:≤7 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | 318(equivalent speed method) |
