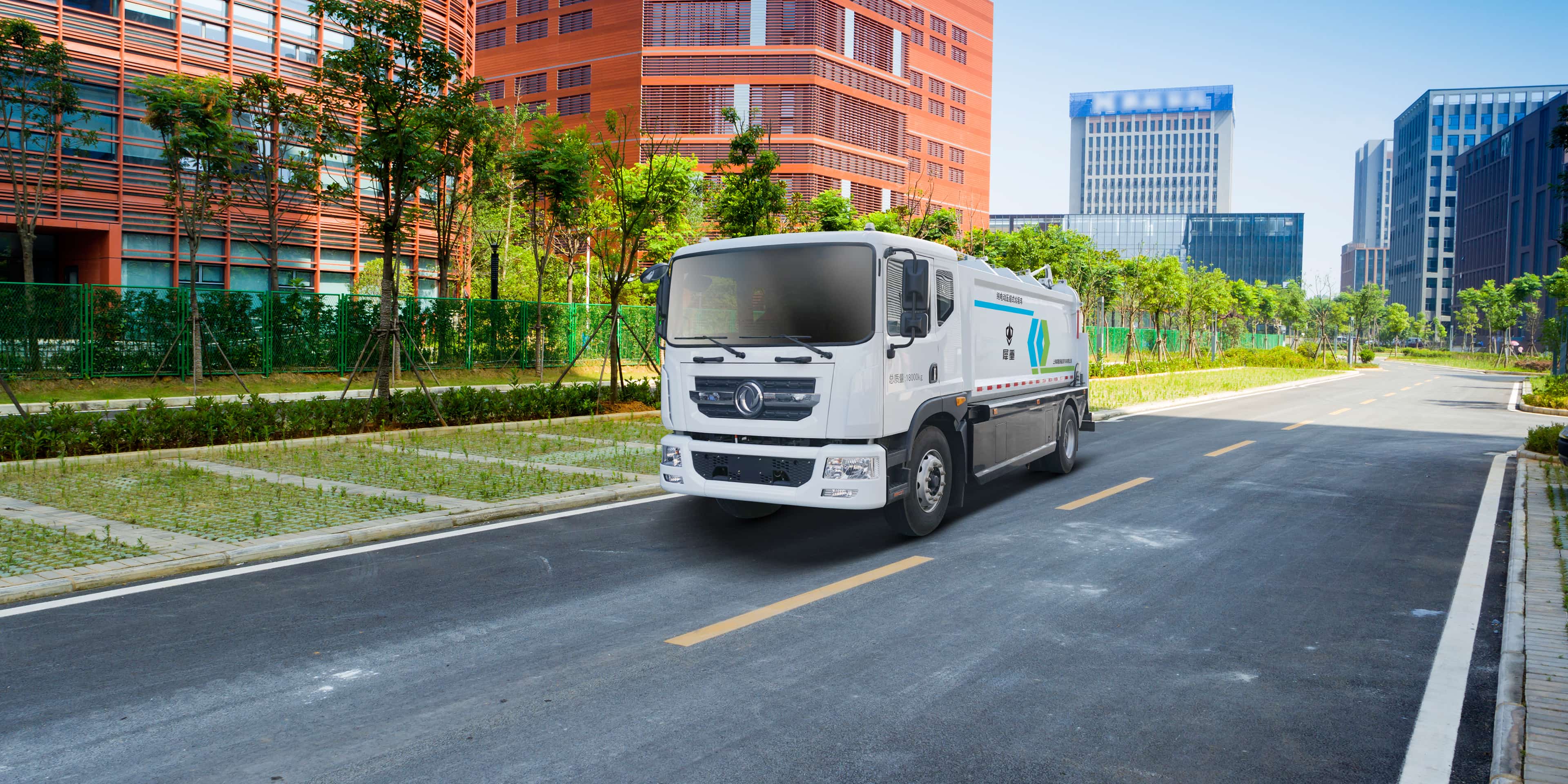

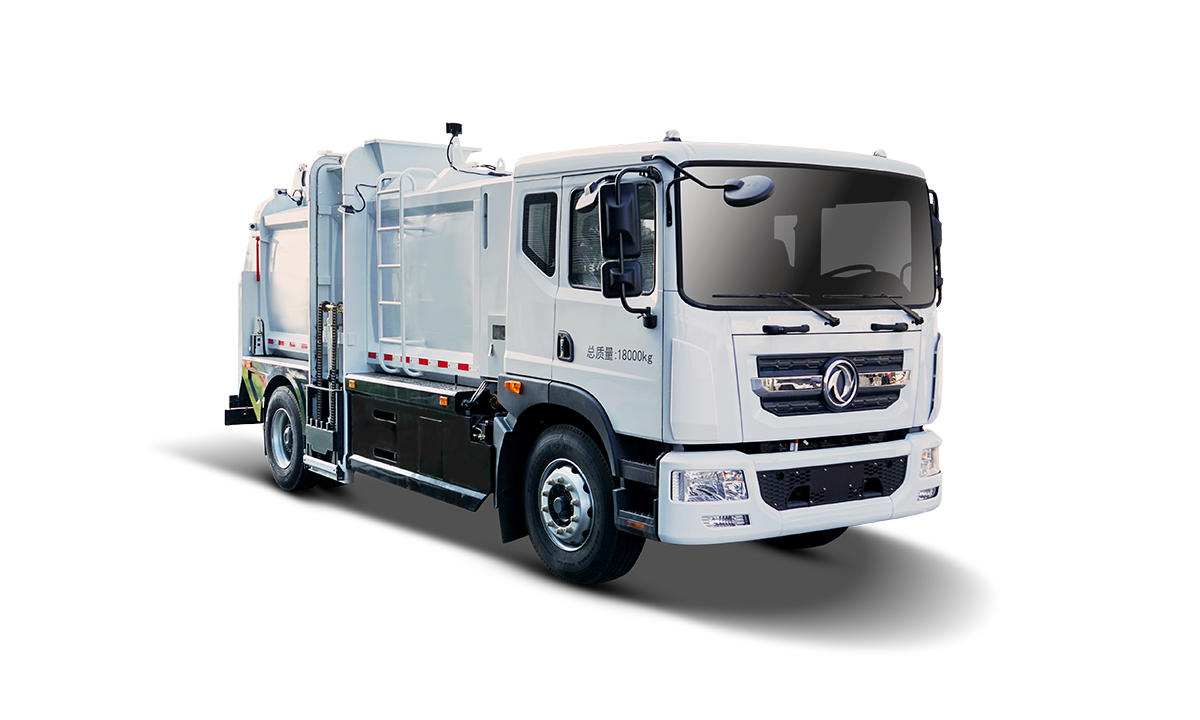

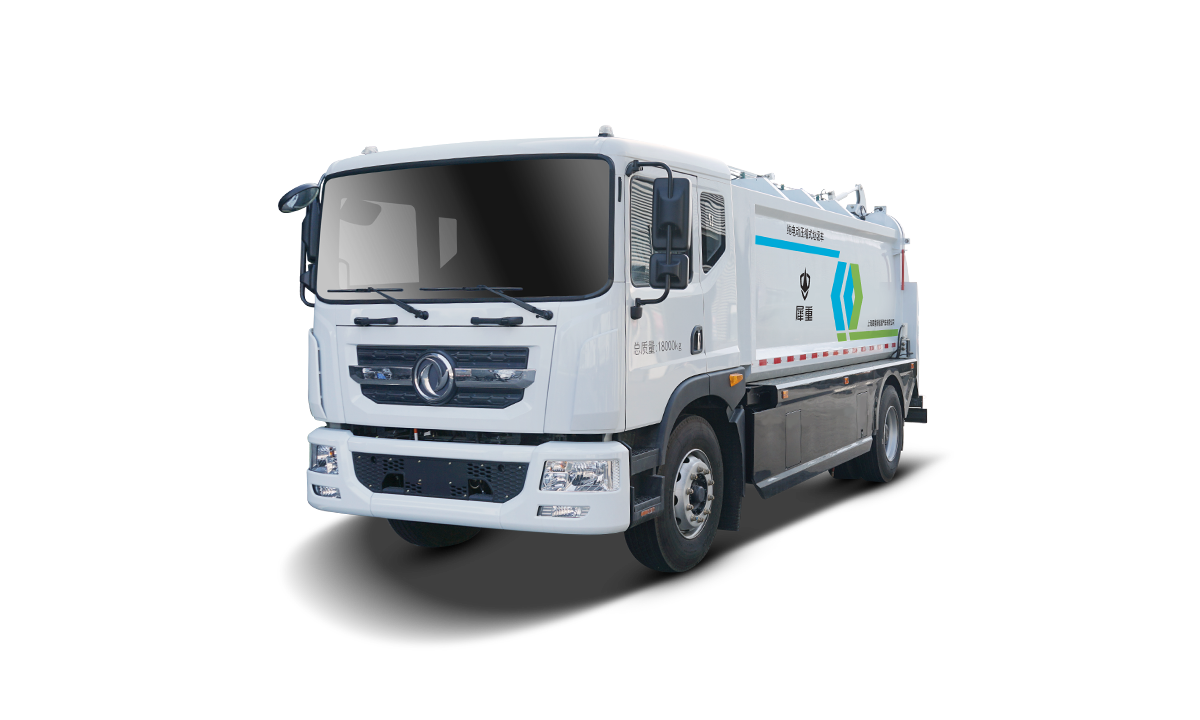

This product has excellent performance, advanced control, and comprehensive performance that has reached the domestic advanced level. It is mainly used to collect and transport kitchen waste generated by catering industries, hotels, canteens, enterprises and residential areas.
Effective volume of the container (m³)
Unloading cycle time (s)
Feeding cycle time (s)
This product has excellent performance, advanced control, and comprehensive performance that has reached the domestic advanced level. It is mainly used to collect and transport kitchen waste generated by catering industries, hotels, canteens, enterprises and residential areas.
The extra large container has a larger volume, allowing for longer loading time.

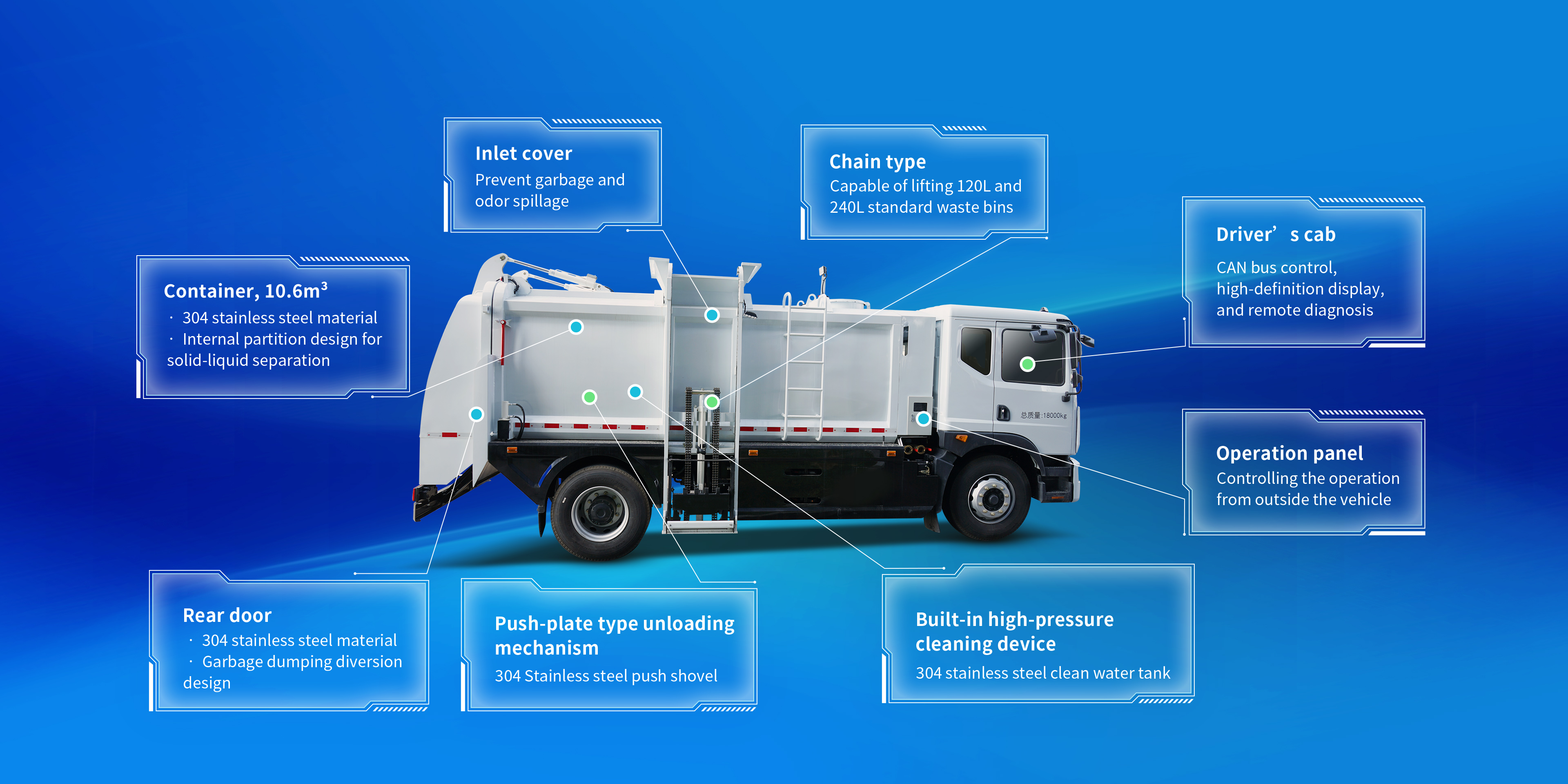

Two discharging methods, “Spiral” and “Pushing”, are available. The heating system, weighing system, high-pressure nozzle flushing, monitoring system, etc. are optional.

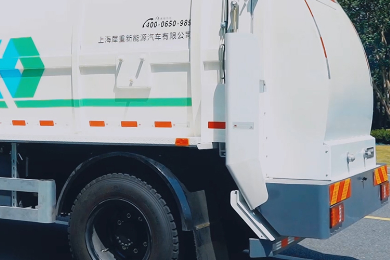

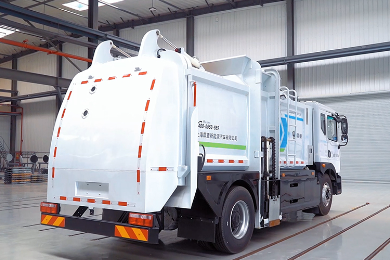

The container and the rear door assembly are sealed with a locking mechanism and a specially reinforced double-lip silicone rubber strip, which can effectively prevent secondary pollution.
A filtering device is installed at the bottom of the container, enabling the preliminary separation of solid and liquid kitchen waste in the container.
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 120/200 |
| Motor rated/peak torque (N·m) | 1000/2400 |
| Battery brand/capacity (kWh) | CATL/255.48 |
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 7655×2550×3360 |
| Maximum/curb weight (kg) | 18000/9980,10300 |
| Chassis brand | Dongfeng |
| Operating ability | |
|---|---|
| Effective volume of the container (m³) | ≥10.6 |
| Unloading cycle time (s) | ≤100 |
| Feeding cycle time (s) | ≤20 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥17% |
| Endurance mileage (km) | 350(equivalent speed method) |
