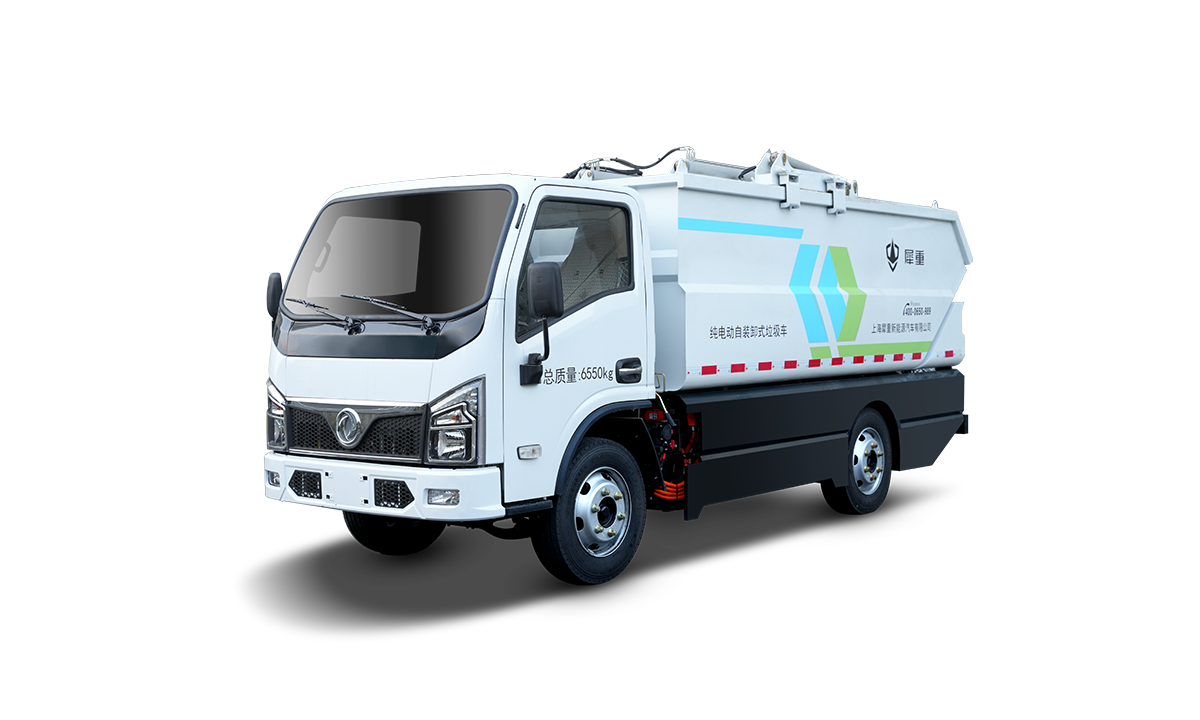

This product has the features of high feeding efficiency, high reliability and convenient maintenance. Guided by the modular design concept, the vehicle has stable structure, beautiful appearance and excellent performance, and can best meet the modern city's requirements for garbage collection and transportation operations, making it suitable for garbage collection and transport in both urban and rural areas.
Effective volume of the container (m³)
Unloading cycle time (s)
Compression cycle time (s)
This product has the features of high feeding efficiency, high reliability and convenient maintenance. Guided by the modular design concept, the vehicle has stable structure, beautiful appearance and excellent performance, and can best meet the modern city's requirements for garbage collection and transportation operations, making it suitable for garbage collection and transport in both urban and rural areas.
The volume of the container exceeds that of similar products by more than 10%, improving operating capabilities.
The vehicle is equipped with multiple safety protection devices, including feeding voice prompts, emergency stop devices, circuit interlock, safety support bars, etc., to ensure the safety of operators.

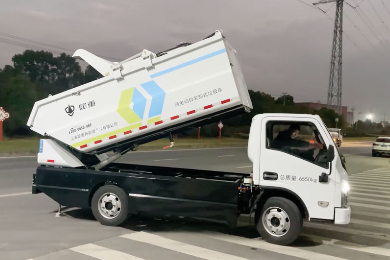

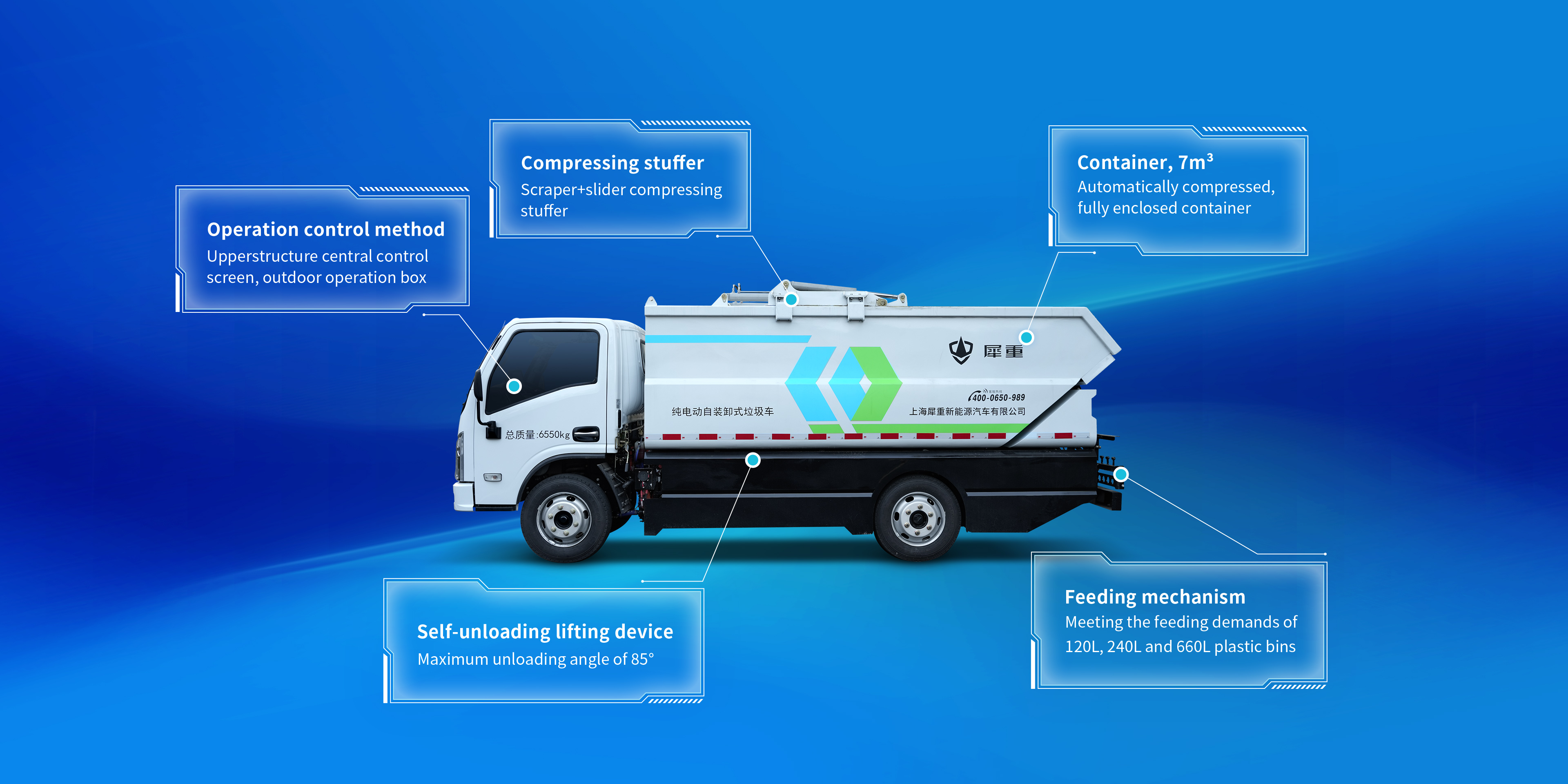

The feeding mechanism has a short feeding cycle time, ensuring high loading efficiency; it adopts a tipping unloading method with a large discharge angle, ensuring quick, clean unloading without residue.

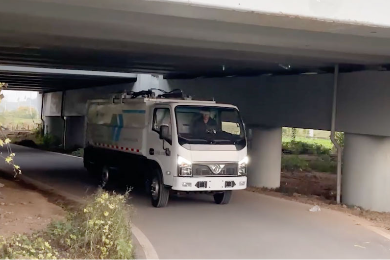

The vehicle size is smaller than similar products while ensuring all functions, allowing the vehicle passing through back streets and alleys with a minimum width of 1.75 m.
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 60/120 |
| Motor rated/peak torque (N·m) | 164/420 |
| Battery brand/capacity (kWh) | CATL/105.28 |
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 5830×1740×2400 |
| Maximum/curb weight (kg) | 6550/4400 |
| Chassis brand | Dongfeng |
| Operating ability | |
|---|---|
| Effective volume of the container (m³) | 7 |
| Unloading cycle time (s) | ≤40 |
| Compression cycle time (s) | ≤30 |
| Feeding cycle time (s) | ≤20 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | 300（equivalent speed method） |
