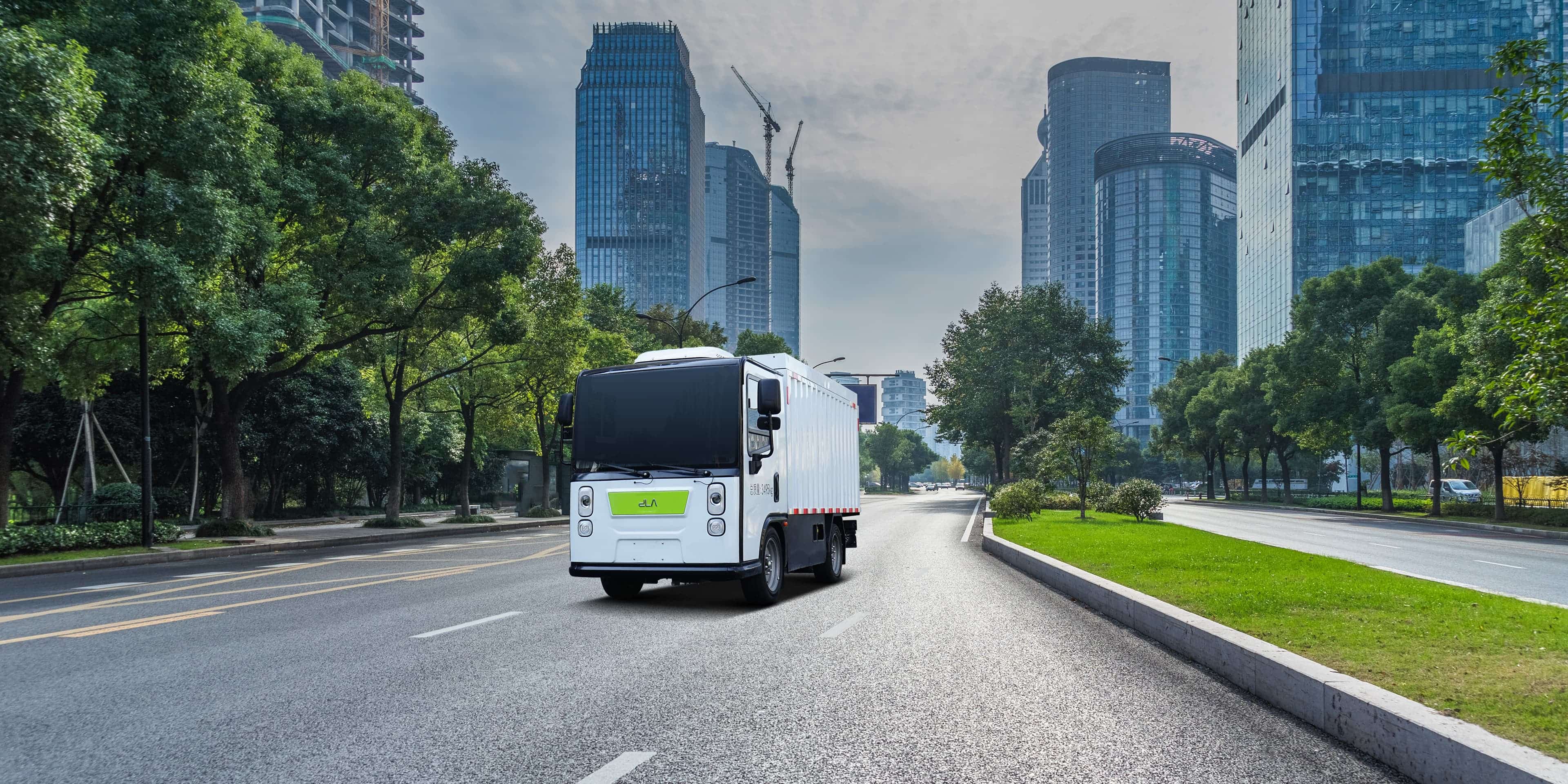

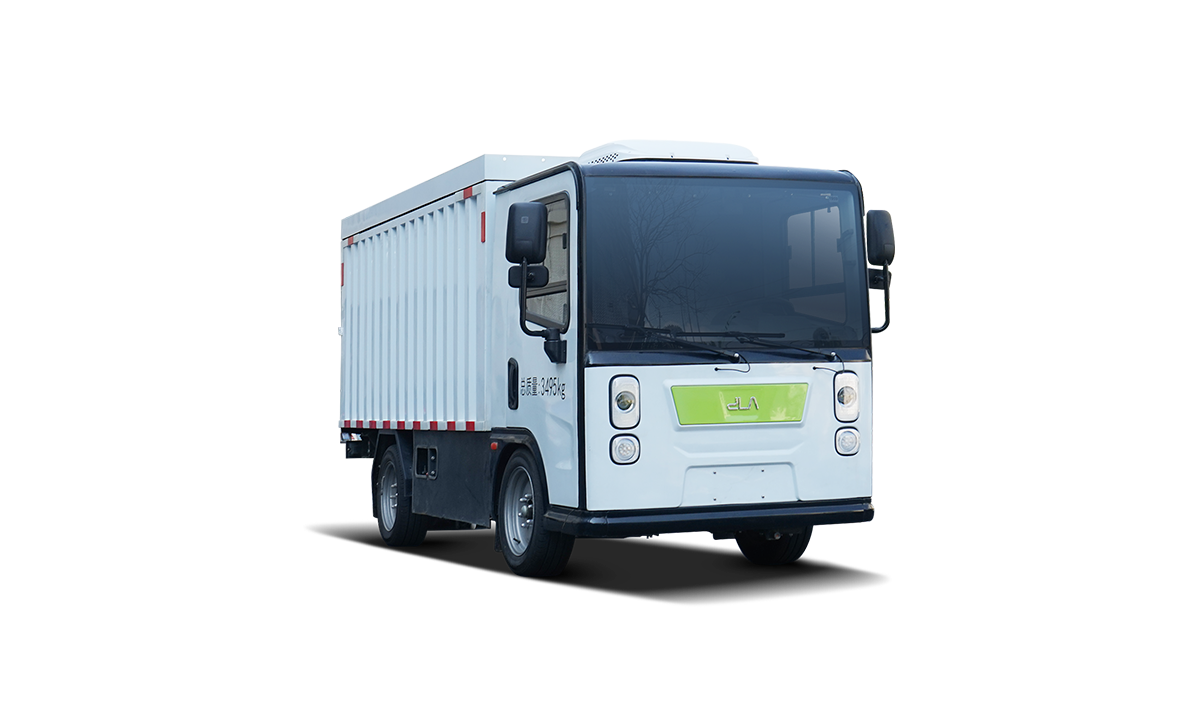

This product has the functions of waste bin collection and transfer. It mainly meets the transportation demands of 240L plastic bins for the container. It is suitable for the collection and transfer of domestic waste bins in scenes such as neighborhoods, schools, units, and streets.
Feeding cycle working cycle (s)
Maximum lifting mass (kg)
Loading capacity (pcs)
This product has the functions of waste bin collection and transfer. It mainly meets the transportation demands of 240L plastic bins for the container. It is suitable for the collection and transfer of domestic waste bins in scenes such as neighborhoods, schools, units, and streets.
Under full load, the container can hold eight 240L waste bins.

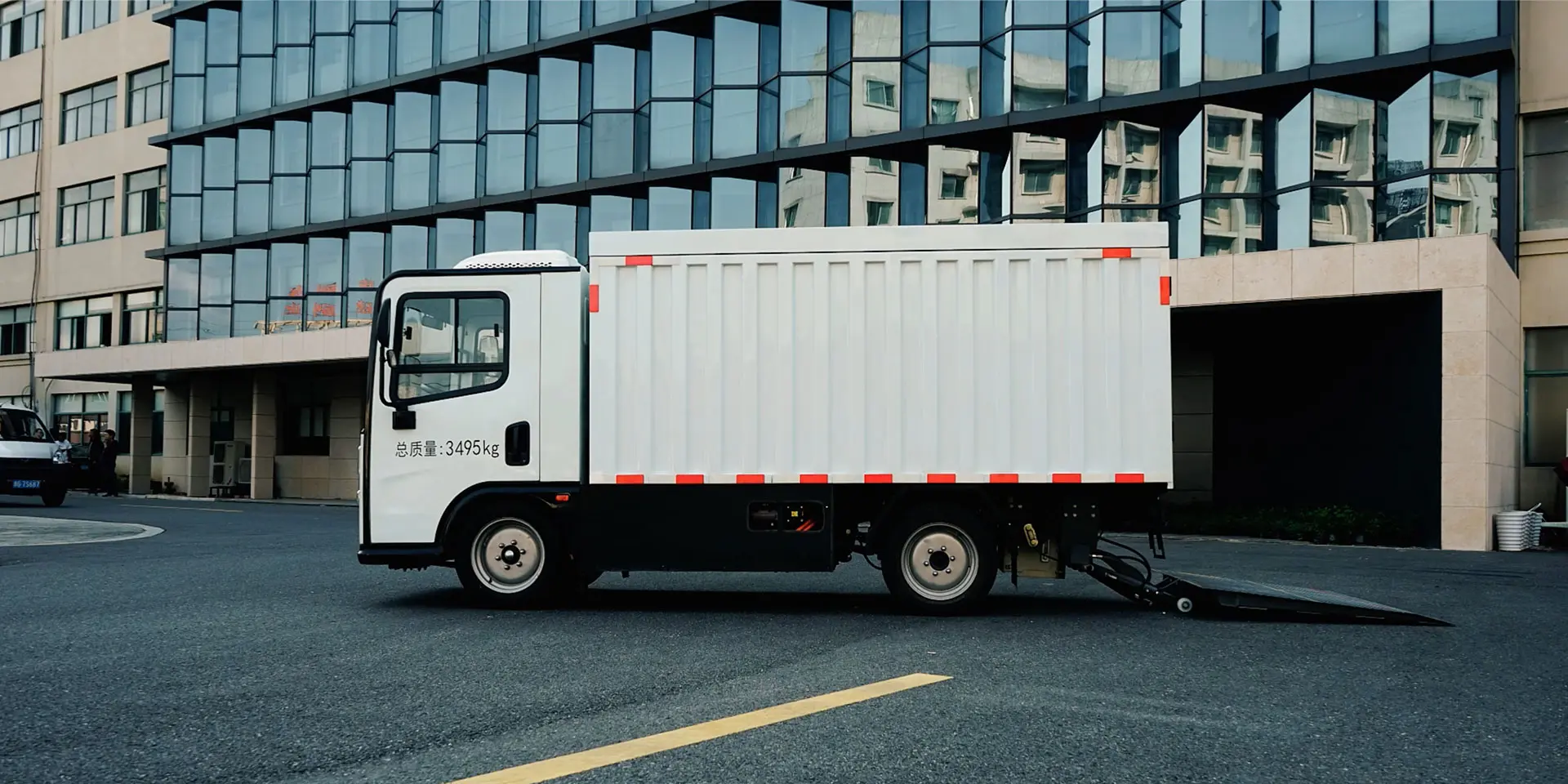

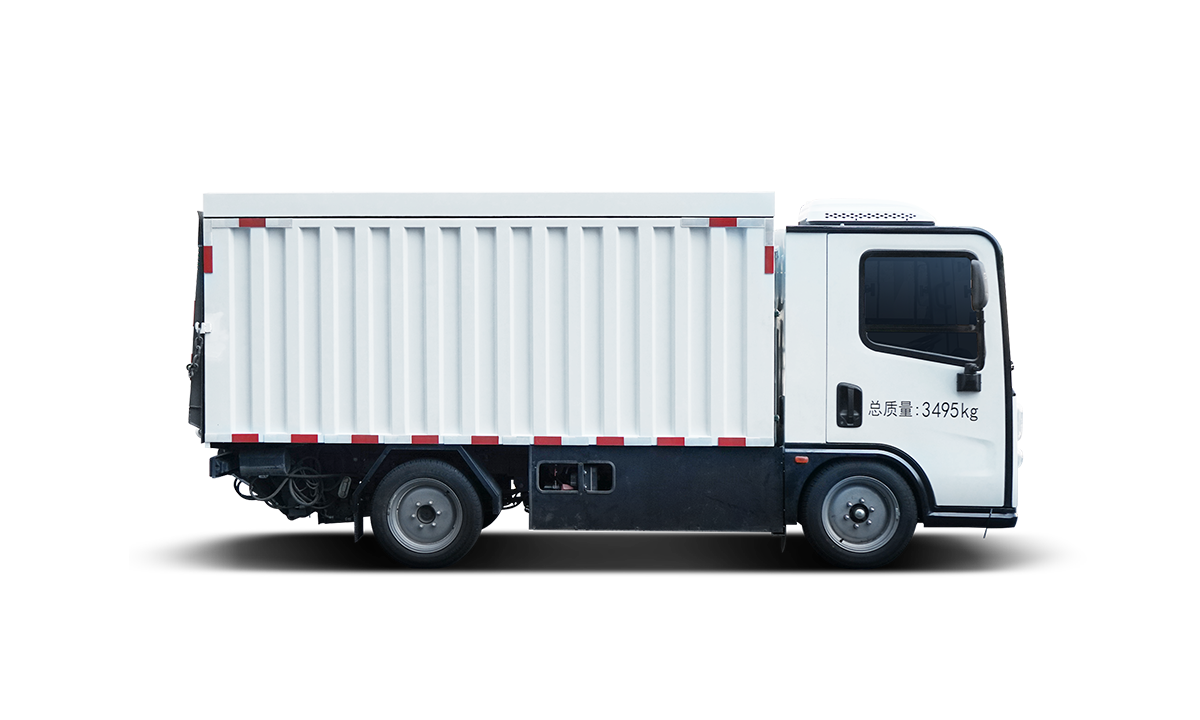

With a length of less than 5 meters, a width of 1.4 meters, and a small turning radius, it is highly maneuverable for driving through streets and alleys. The overall height is as low as 2.1 meters, making it convenient for operations in residential basement areas, thereby reducing the workload for sanitation workers.

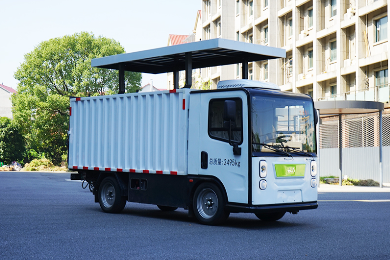

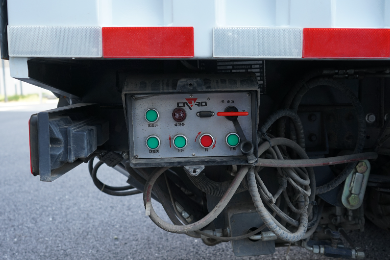

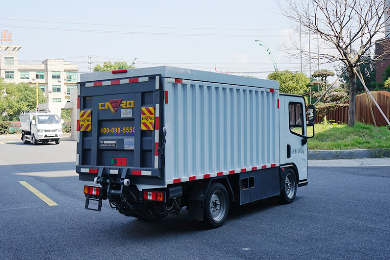

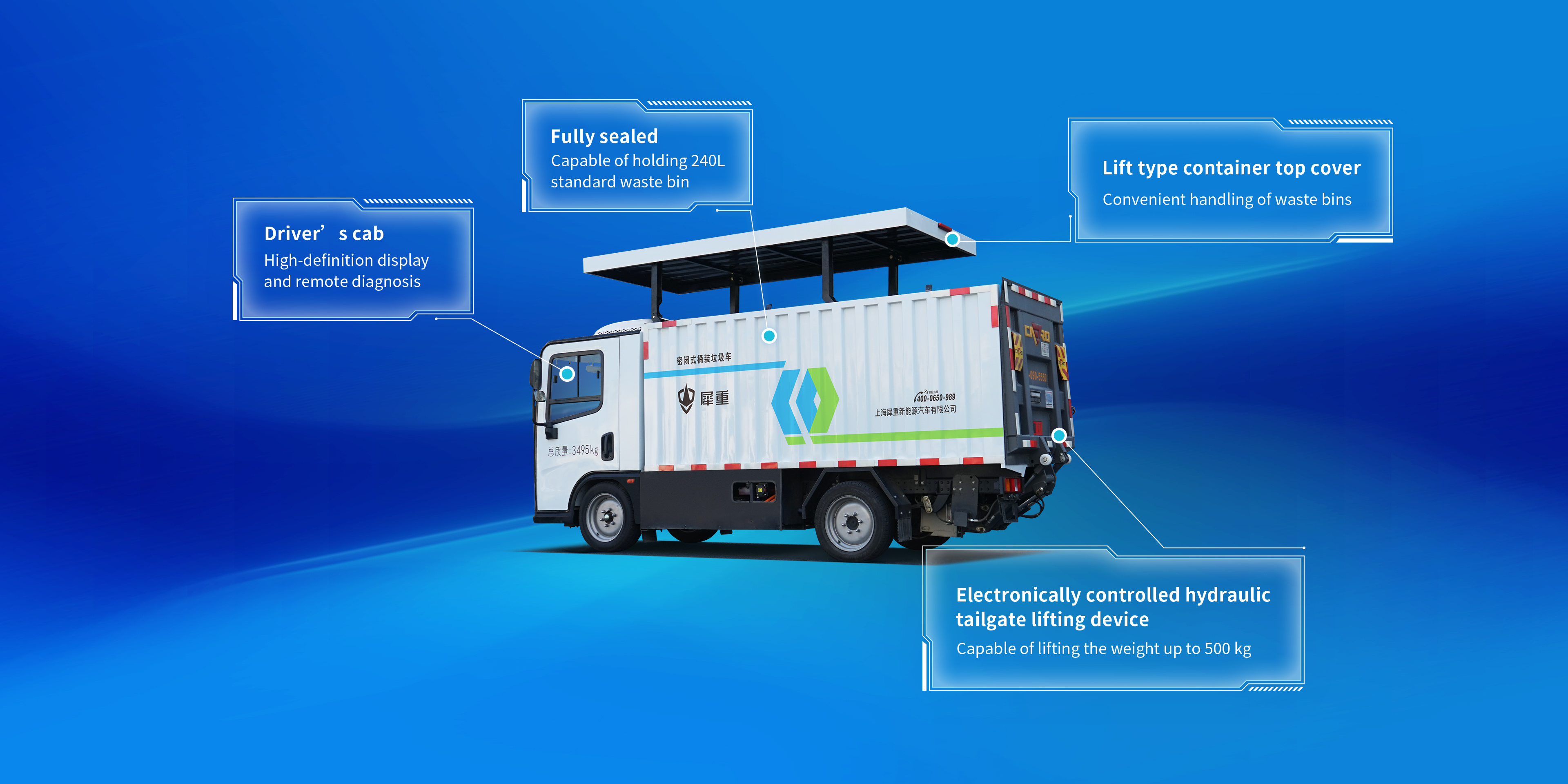

The hydraulic side panels greatly reduce the labor intensity of manual loading and unloading and improves operation efficiency; the openable top cover makes it convenient for operators to handle the waste bins.
It has a lighter curb weight compared to similar products, and the motor + electronic control system achieves a peak efficiency of 95.2%, minimizing energy losses.
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 30/60 |
| Motor rated/peak torque (N·m) | 85/200 |
| Battery brand/capacity (kWh) | Hubei EVE/41.86 |
| Vehicle parameter | |
|---|---|

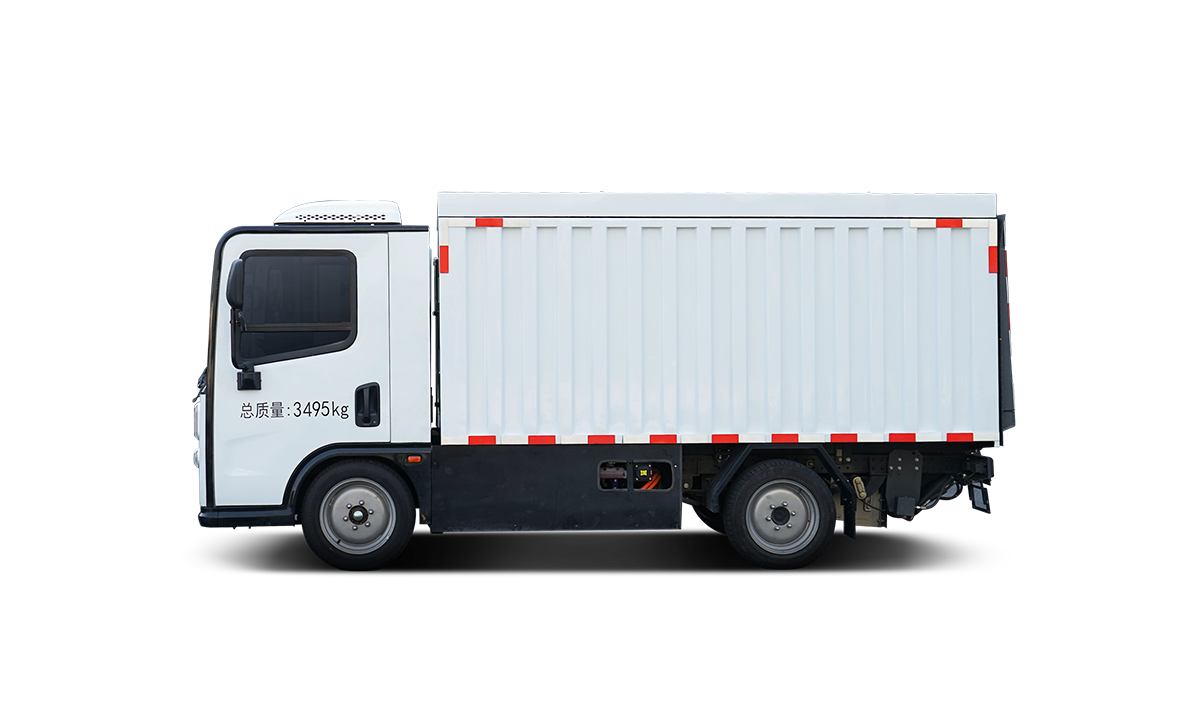

| Length x Width x Height (mm) | 4462×1400×2120 |
| Maximum/curb weight (kg) | 3495/1900 |
| Chassis brand | Seazon special chassis |
| Operating ability | |
|---|---|
| Feeding cycle working cycle (s) | ≤50 |
| Maximum lifting mass (kg) | 500 |
| Loading capacity (pcs) | Eight 240L waste bins |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | 150（mode-test） |
