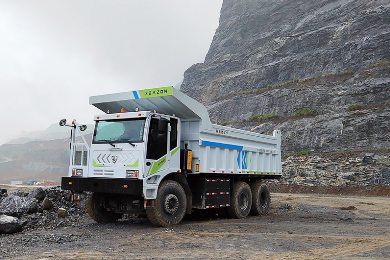

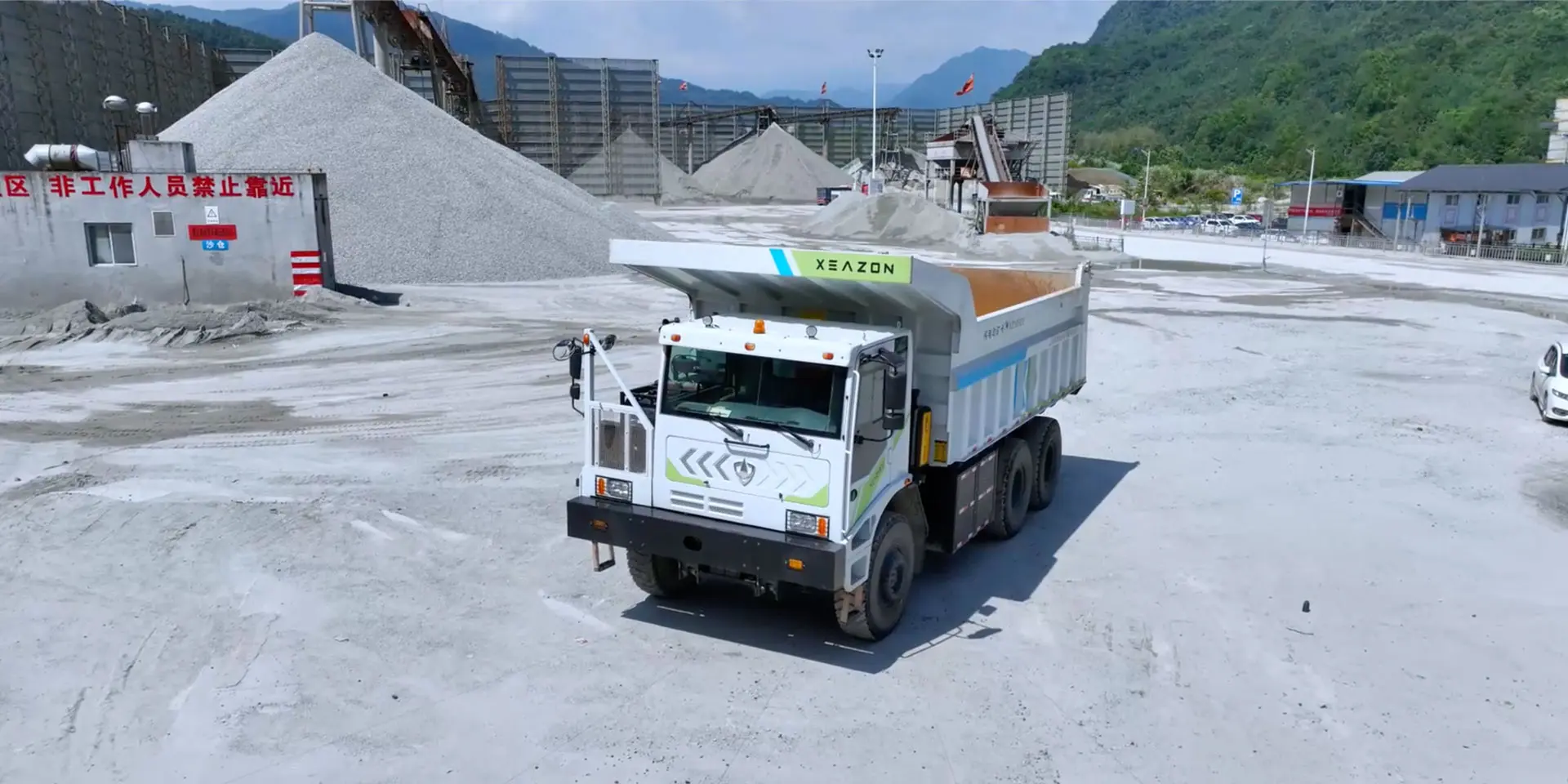

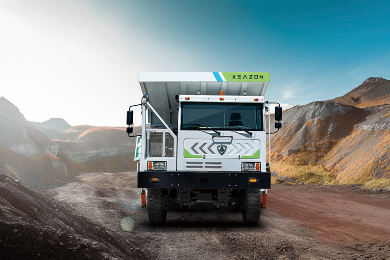

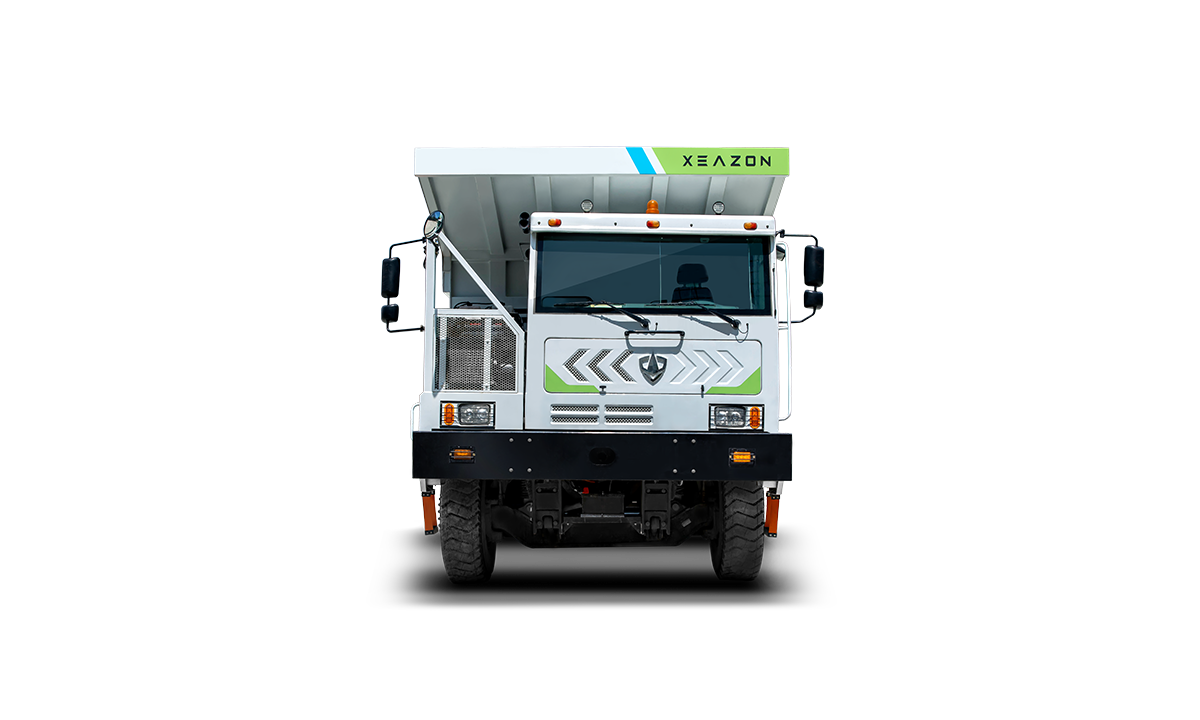

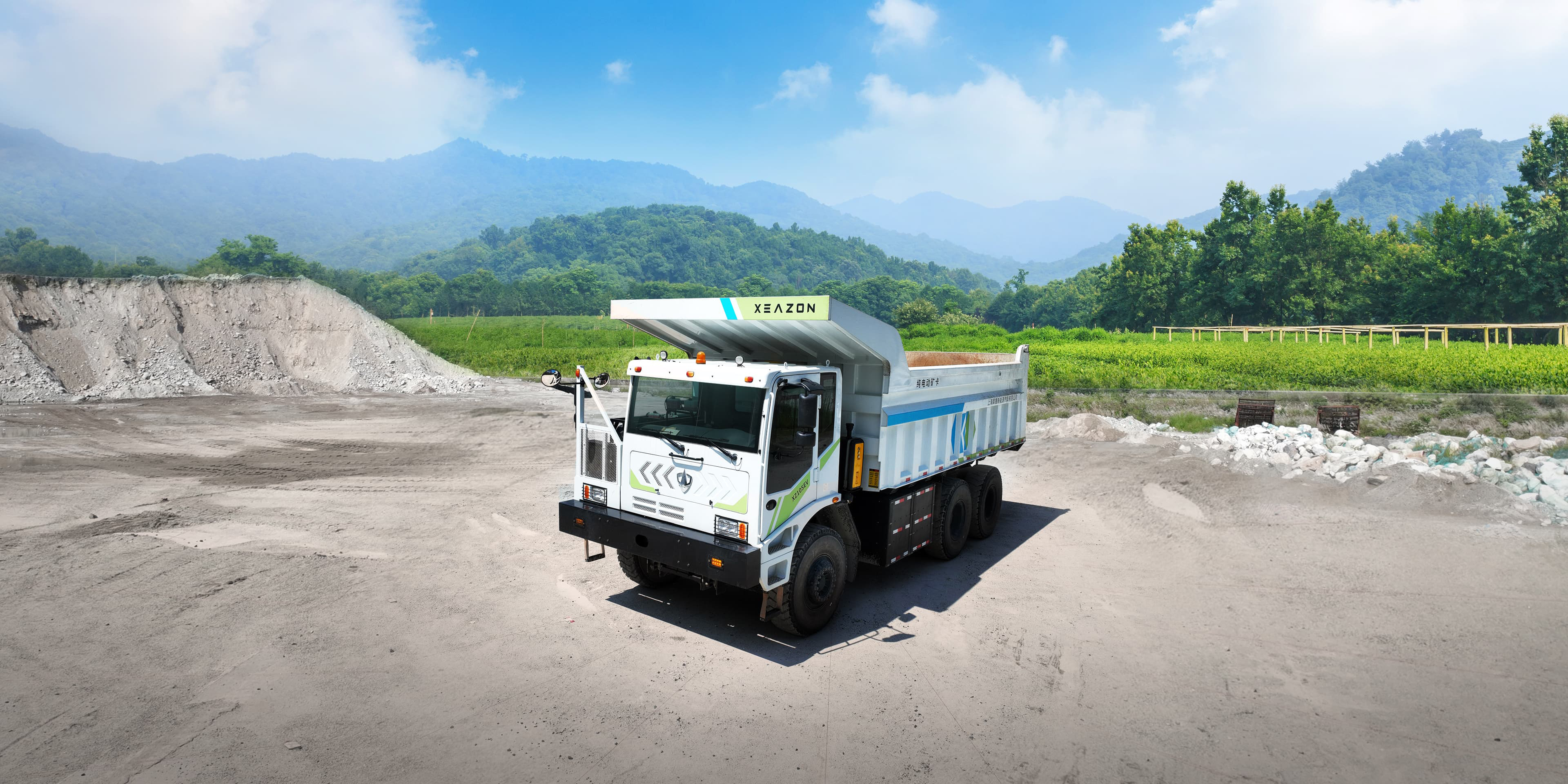

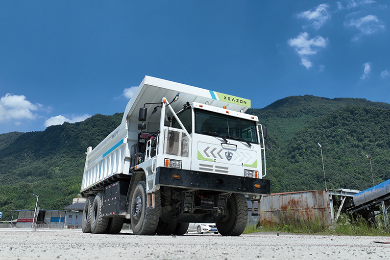

Vehicle appearance
Product features
-
Safe and reliable
It is equipped with mature three-electric system (battery, motor and electric control system) for mining vehicles. With main assembly strengthening design, it is more suitable for mining conditions. The vehicle has low center of gravity, strong bearing capacity as well as bending and torsional resistance.
-
Strong power
The vehicle adopts high speed ratio axle, with maximum gradient of 30%. The motor has reached the rated torque at low speed, with short vehicle acceleration time and fast speeding up.
-
High operation efficiency
It features long repair and maintenance cycle of core components, stable and reliable three-electric system (battery, motor and electric control system), and high vehicle attendance; it is also characterized by large tank volume, fast average speed and high single transport efficiency, bringing greater operating income.
-
Comfort driving
The vehicle uses full-floating rear suspension and semi-floating front suspension, alleviating driver fatigue. The pneumatic suspension structure can effectively absorb road impact and improve driving comfort.
Configuration parameters
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 10200×3980×4200 |
| Wheelbase (mm) | 4500+1750 |
| Maximum gradient | ≥ 30 |
| Curb weight (kg) | 45000 |
| Maximum total mass (kg) | 125000 |
| Maximum speed (km/h) | 40 |
| Upperstructure configuration | |
|---|---|
| Lifting system | Single cylinder front lifting system |
| Container volume (m³) | 48(flat loading)/53(stowage loading) |
| Chassis configuration | |
|---|---|
| Steering system | Full hydraulic pressure steering + emergency steering |
| Tire | 16.00R25 three-star rating (Techking) |
| Power battery (kWh) | 亿纬锂能，lithium iron phosphate565kWh |
| Drive motor | Disc hub dual-motor |
| Transmission | FAST four-speed AMT mining truck special |
| Front middle and rear axle load (t) | 30+45+45 |
| Suspension system | Front hydro-pneumatic spring suspension/rear leaf spring balance suspension |
| Brake system | Electric brake + drum brake, eddy current retarder (optional) |
| Motor rated/peak power (kW) | 570/900 |
Note: The product introduction should be as detailed as possible on the basis of available information. Seazon Motor Co., Ltd. reserves the right to modify and adjust the product parameters, configurations, materials, colors, and other information on the model at any time. Therefore, the product introduction is for reference purposes only, and the appearance, configuration, color, and other specifics of actual vehicles sold may vary.
