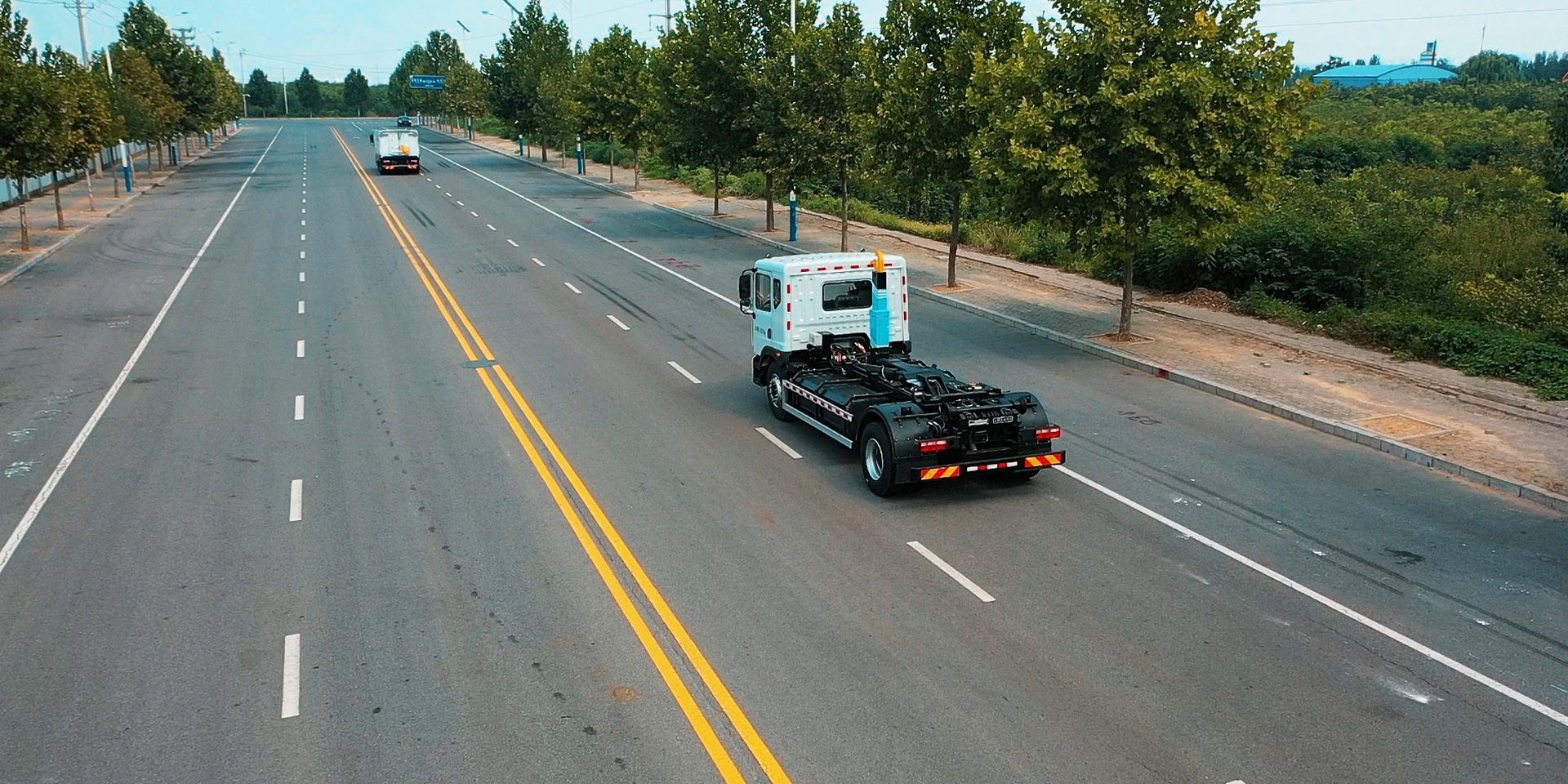

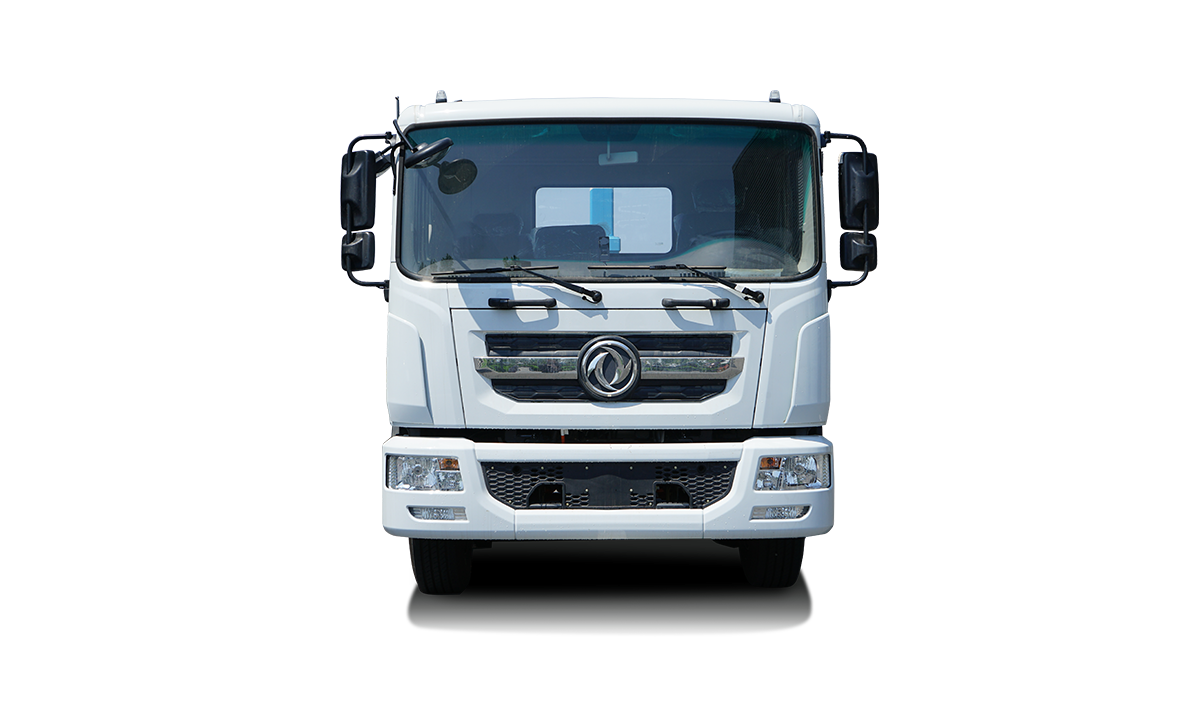

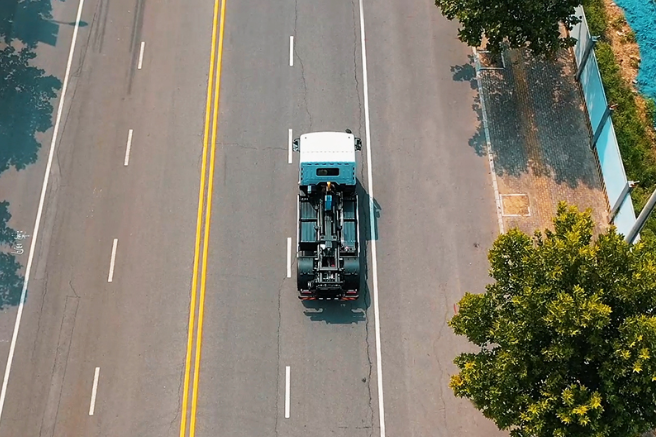

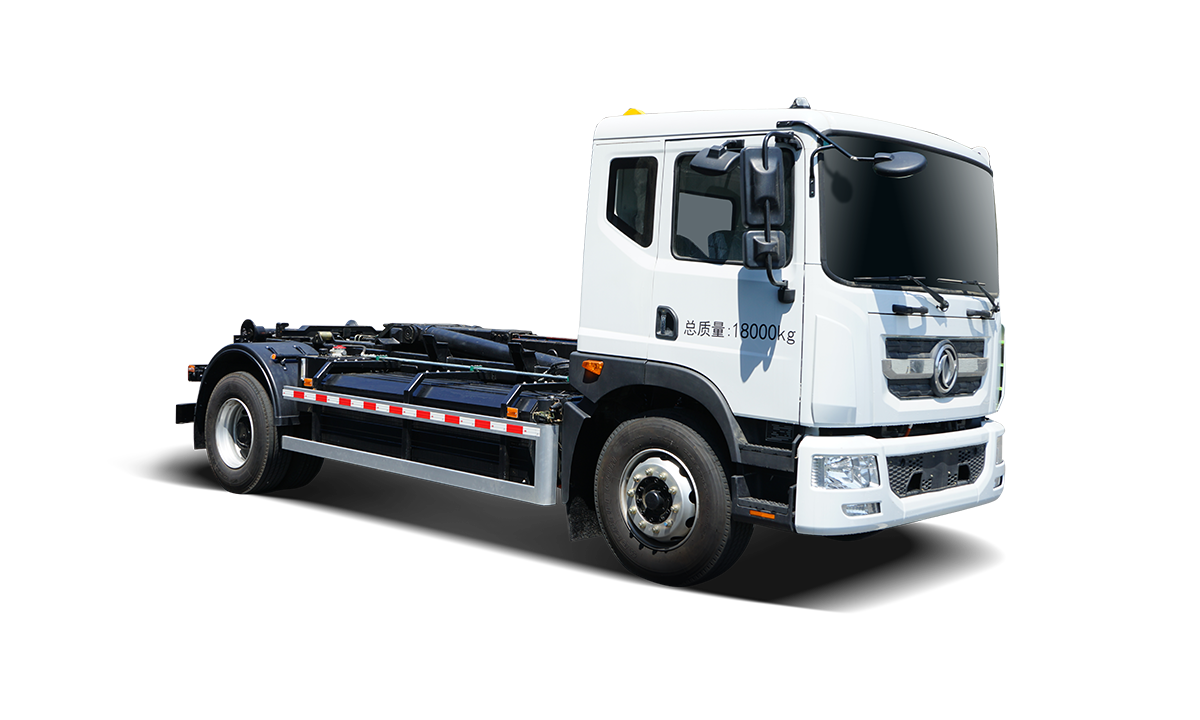

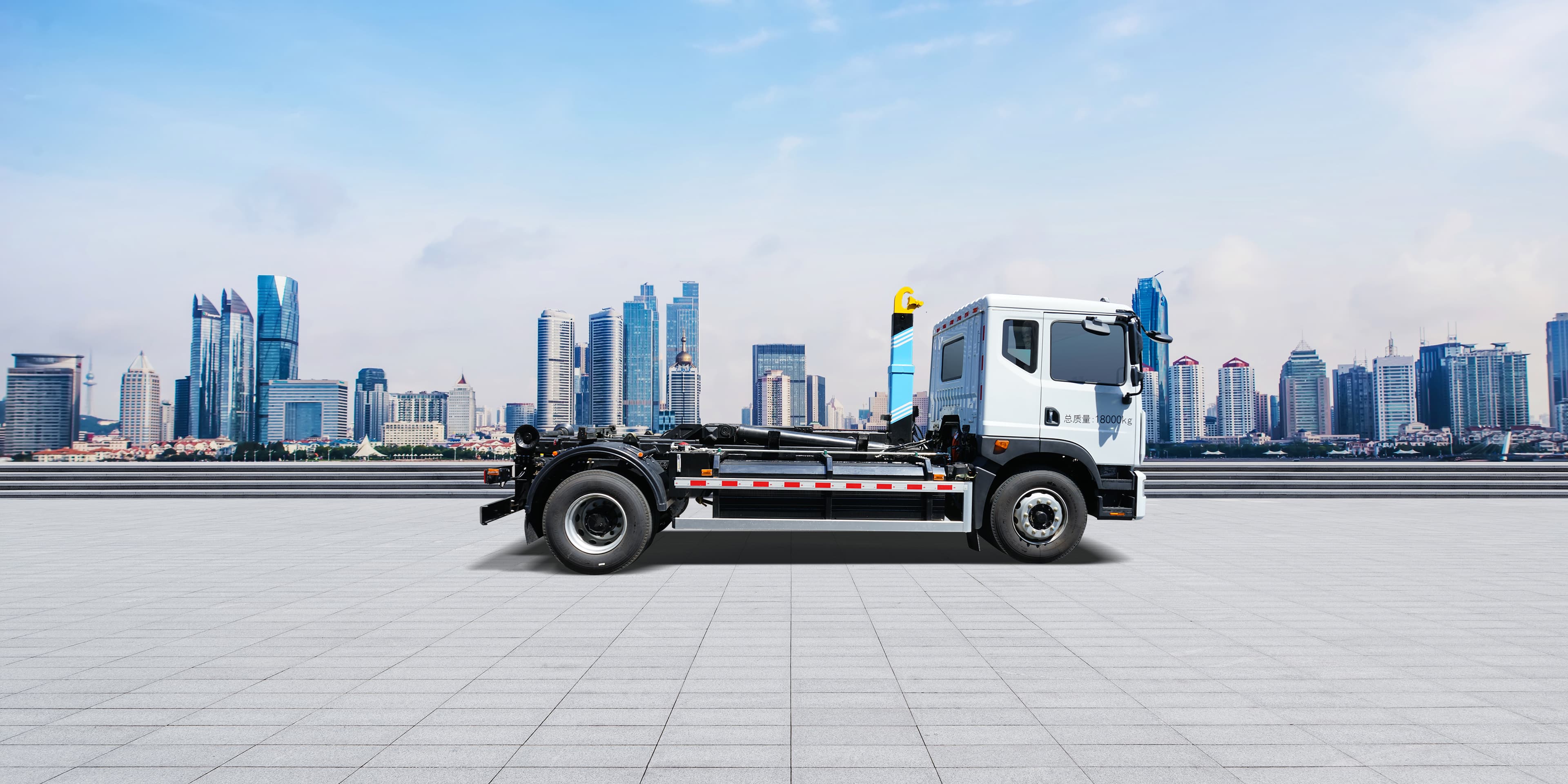

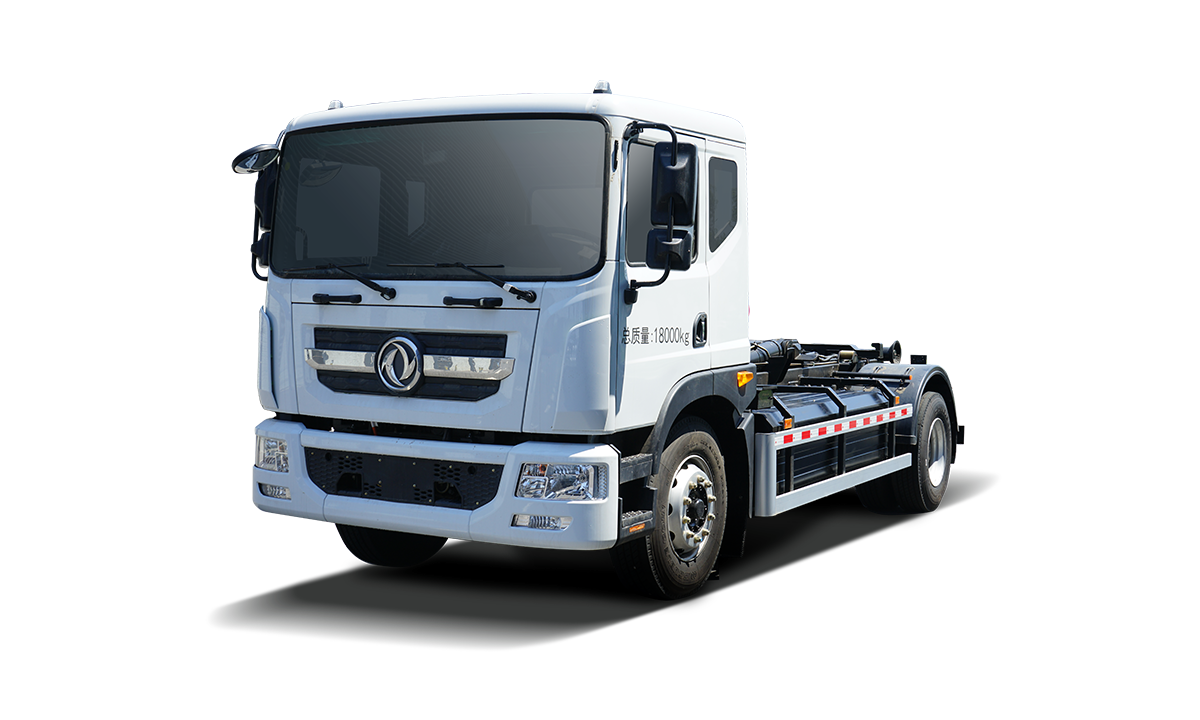

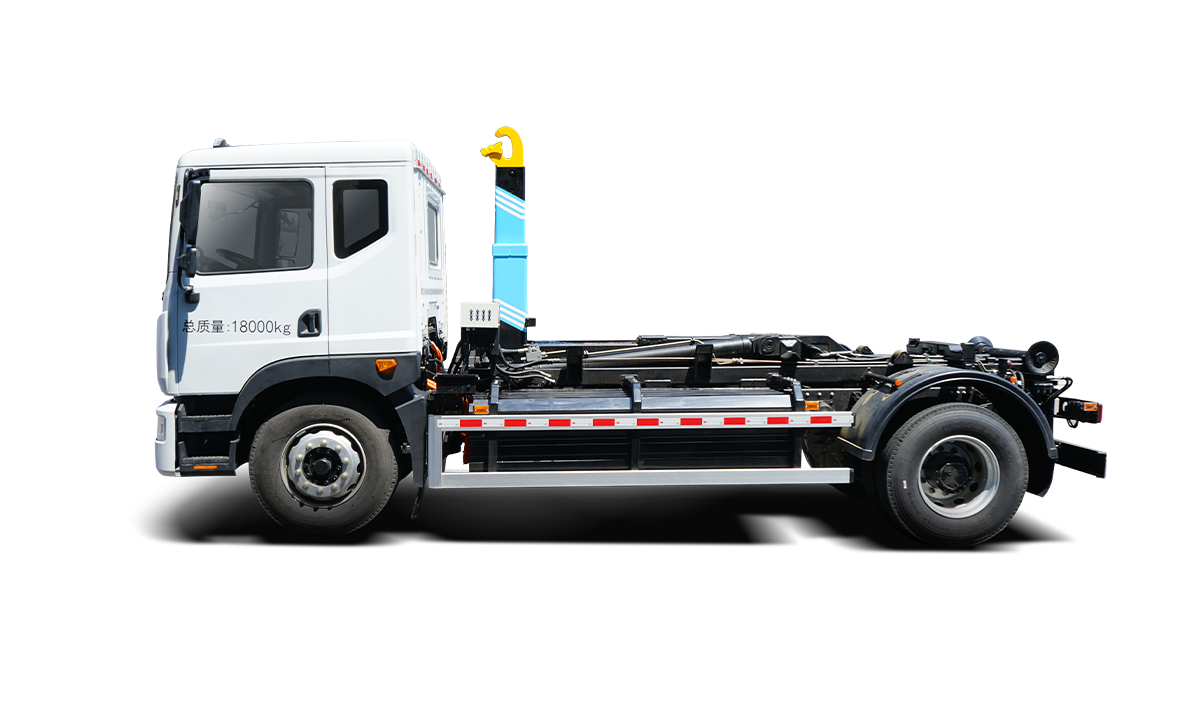

This product is mainly suitable for garbage transfer between garbage compression transfer stations and garbage terminal processing sites. It is a new, environmentally friendly, easy-to-operate and reliable garbage transfer vehicle.
Unloading time (s)
Container detaching time (s)
Container hooking time (s)
This product is mainly suitable for garbage transfer between garbage compression transfer stations and garbage terminal processing sites. It is a new, environmentally friendly, easy-to-operate and reliable garbage transfer vehicle.
With an exceptionally large battery capacity, it can meet the operating requirement of 350 km with full load after charging.

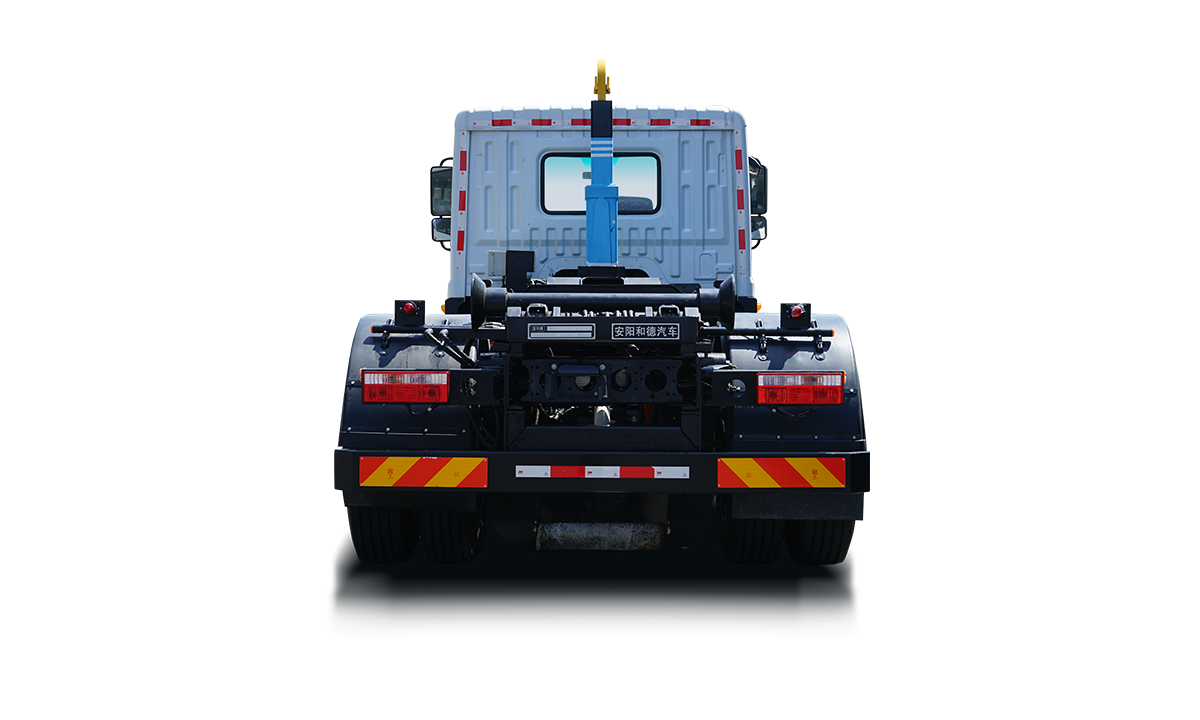

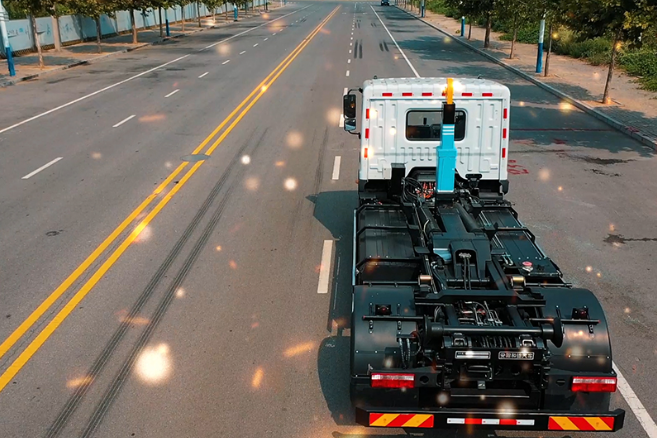

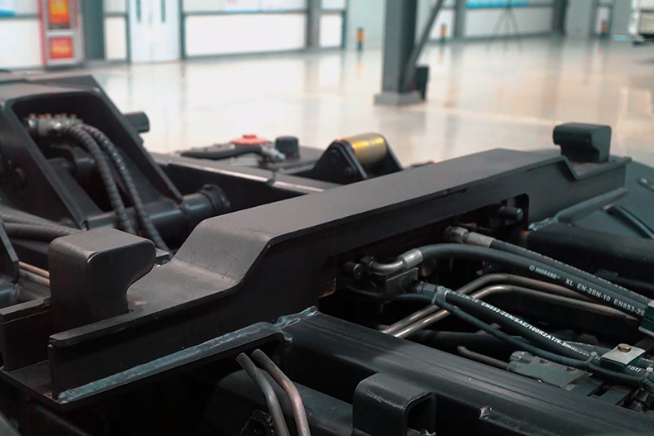

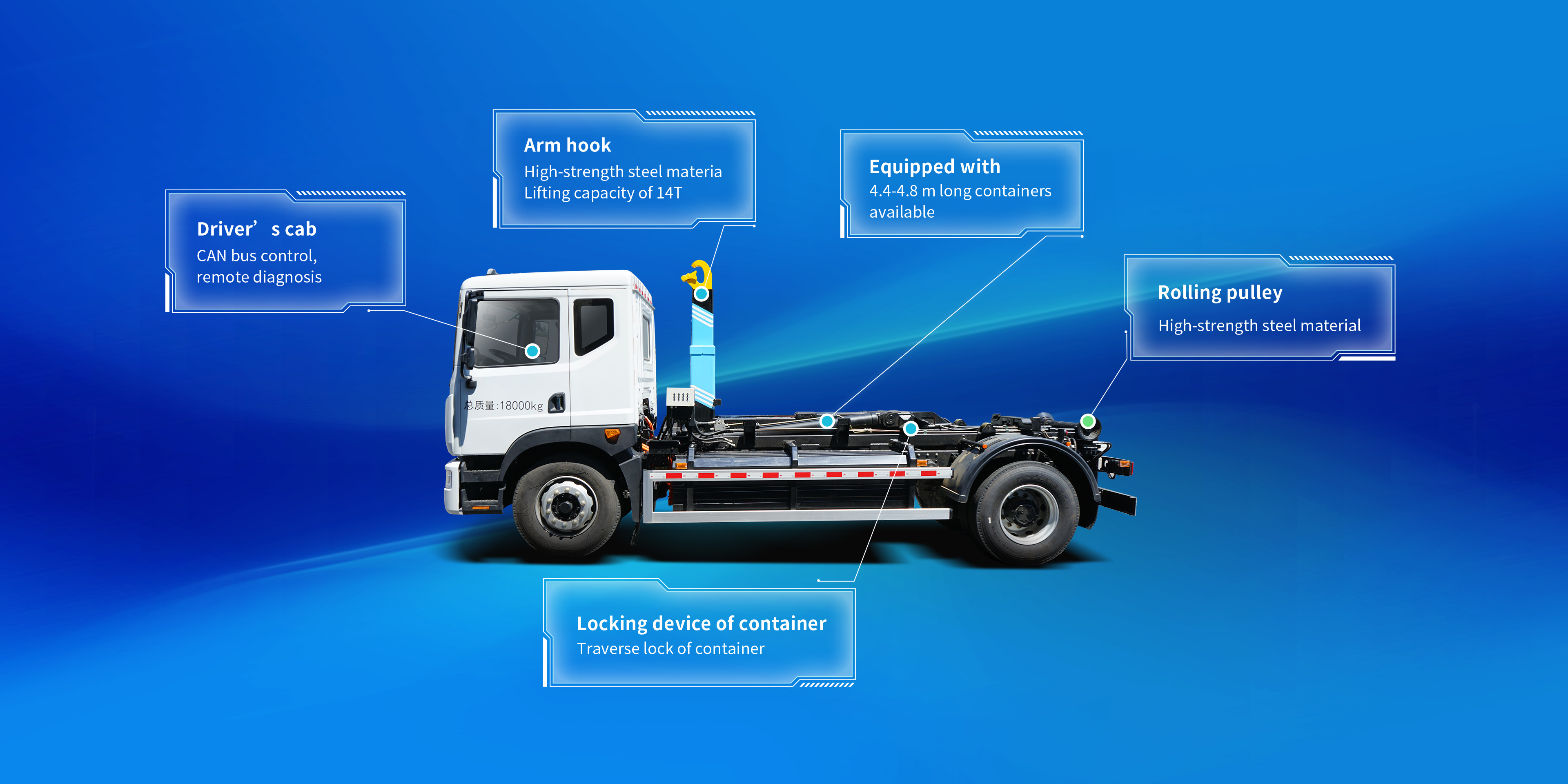

The high-strength steel arm hook is safe and reliable. The upperstructure system has multiple electrical interlocking protection. In addition, a container drop buffer device is installed, to effectively avoid rigid impact.
It adopts rear axle drive, with a peak power of up to 230kW, ensuring abundant power.

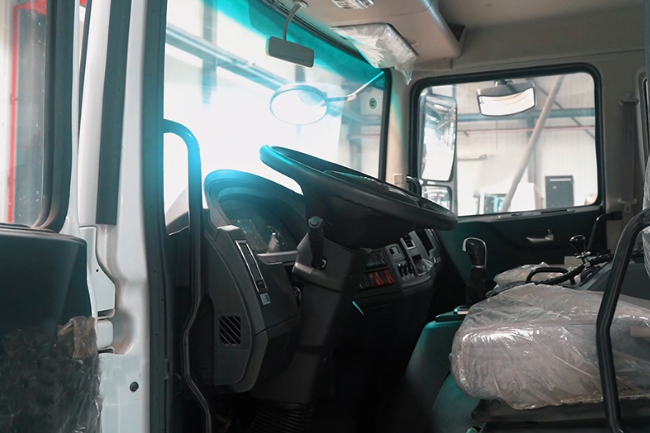

Operations such as loading, unloading, and container detaching can be completed by the driver alone in the vehicle.
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 115/230 |
| Motor rated/peak torque (N·m) | 500/1200 |
| Battery brand/capacity (kWh) | CATL/255.48 |
| Vehicle parameter | |
|---|---|

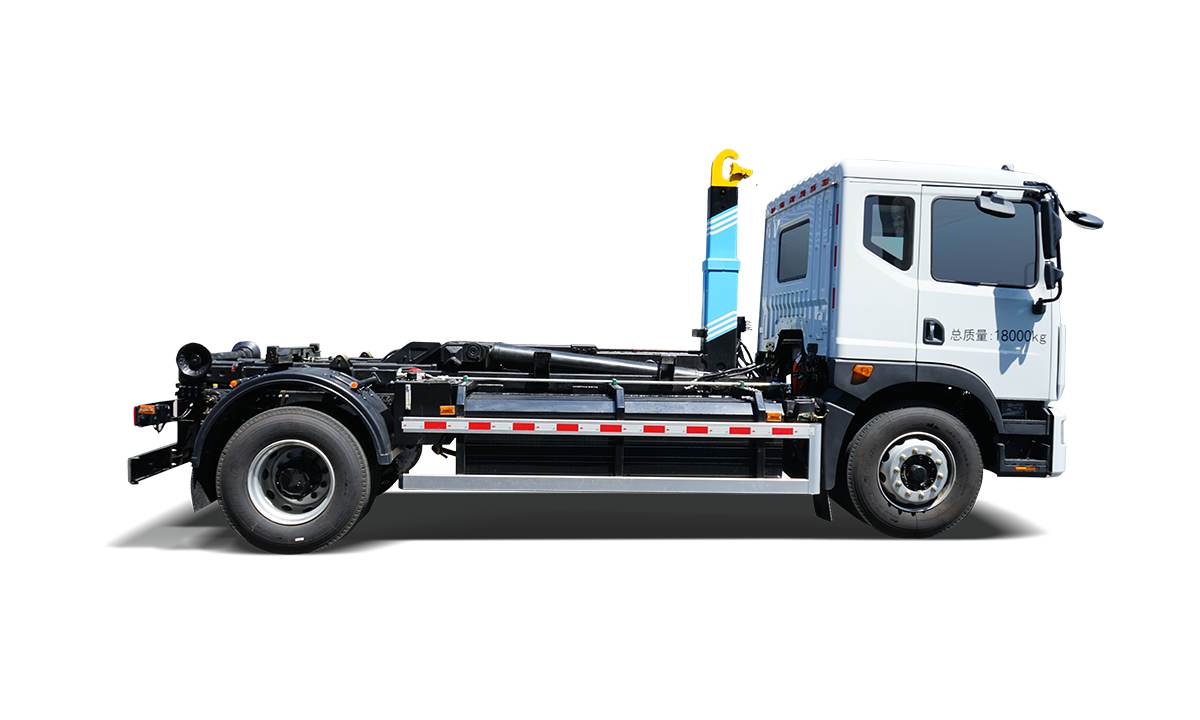

| Length x Width x Height (mm) | 6910×2500×3040 |
| Maximum/curb weight (kg) | 18000/9200 |
| Chassis brand | Dongfeng |
| Operating ability | |
|---|---|
| Unloading time (s) | ≤110 |
| Container detaching time (s) | ≤72 |
| Container hooking time (s) | ≤60 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥30% |
| Endurance mileage (km) | 350(equivalent speed method) |
