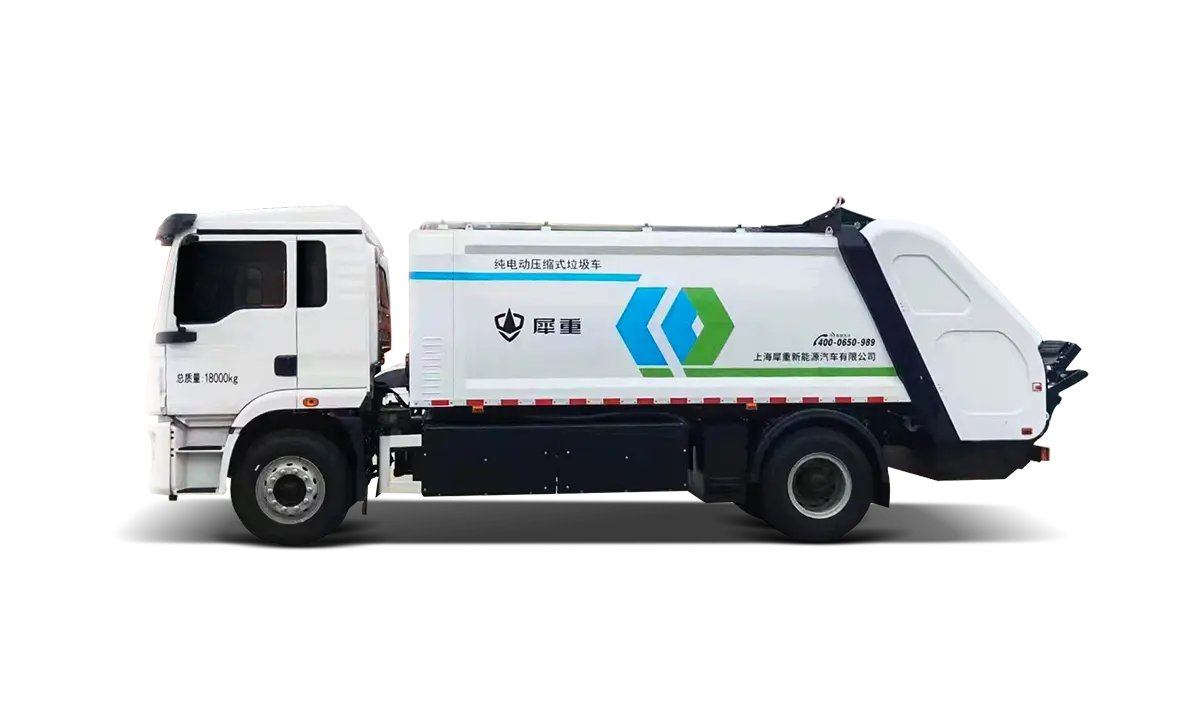

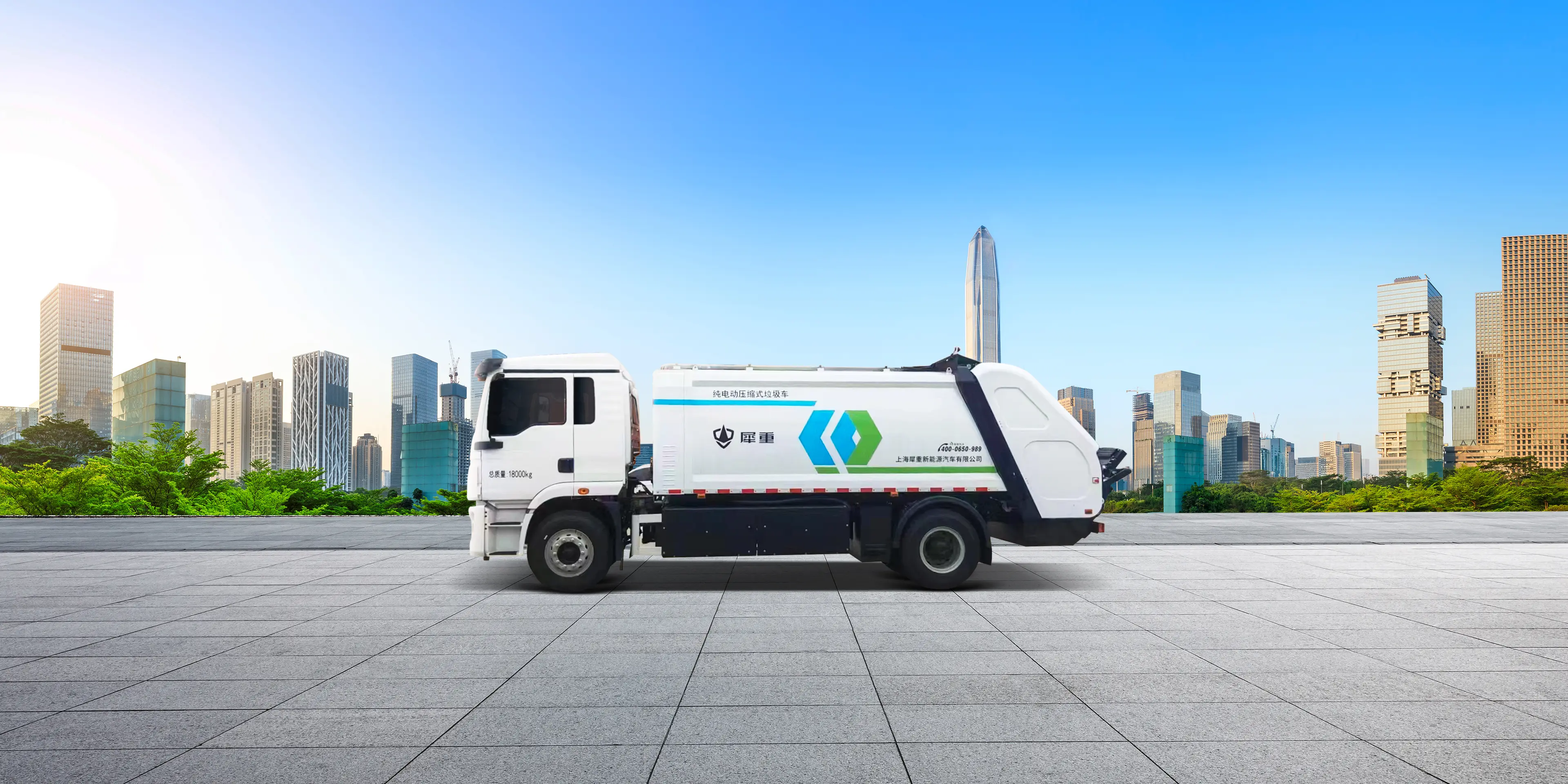

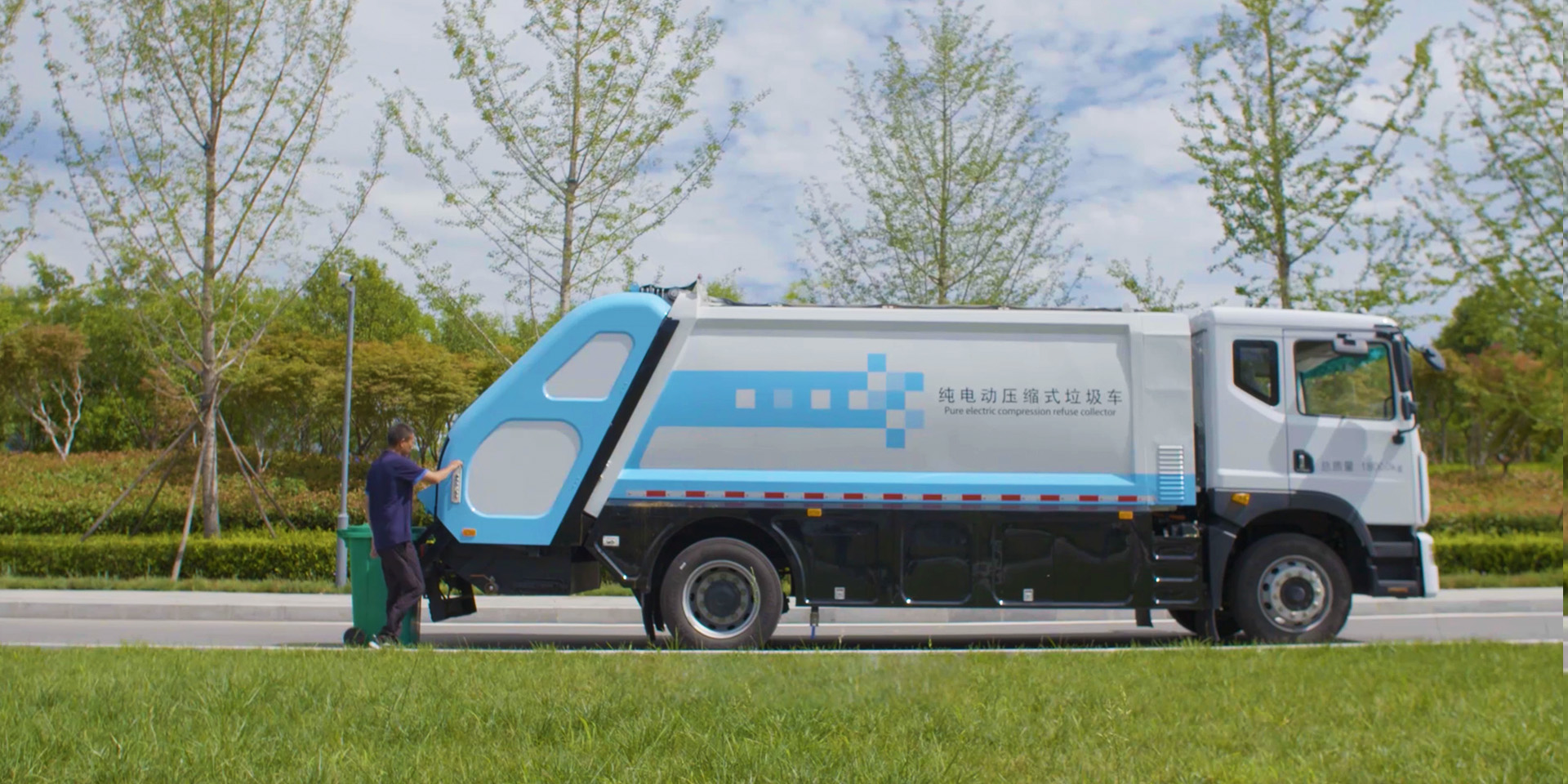

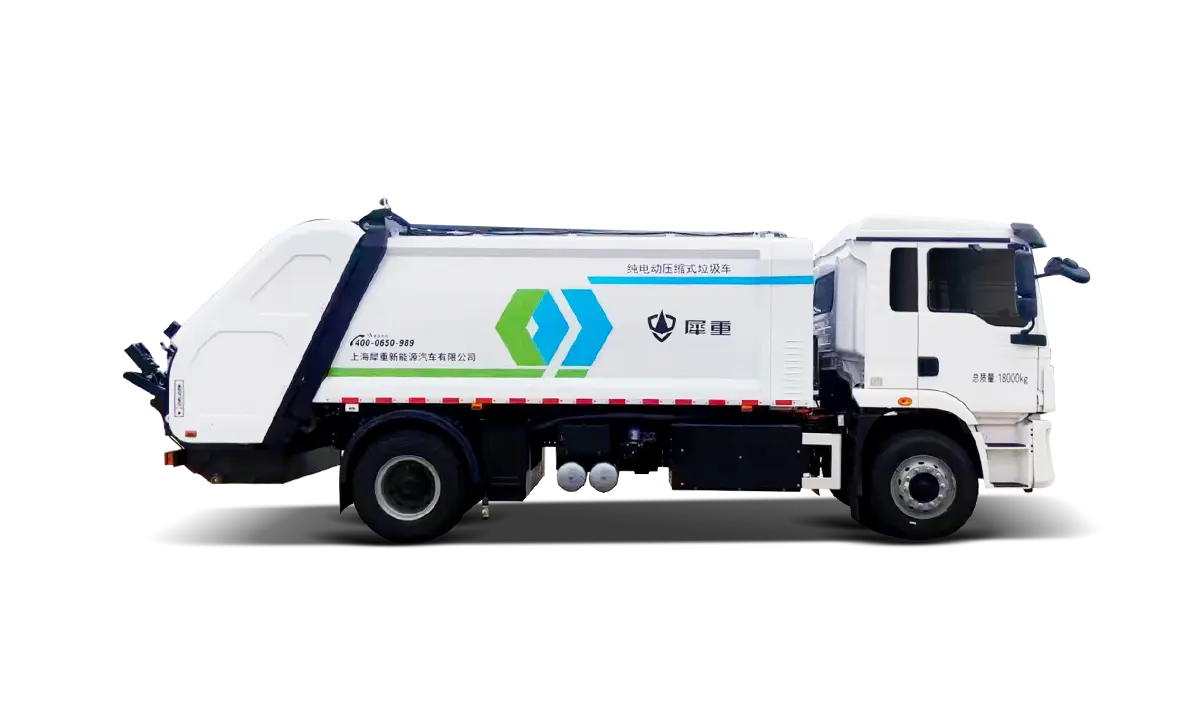

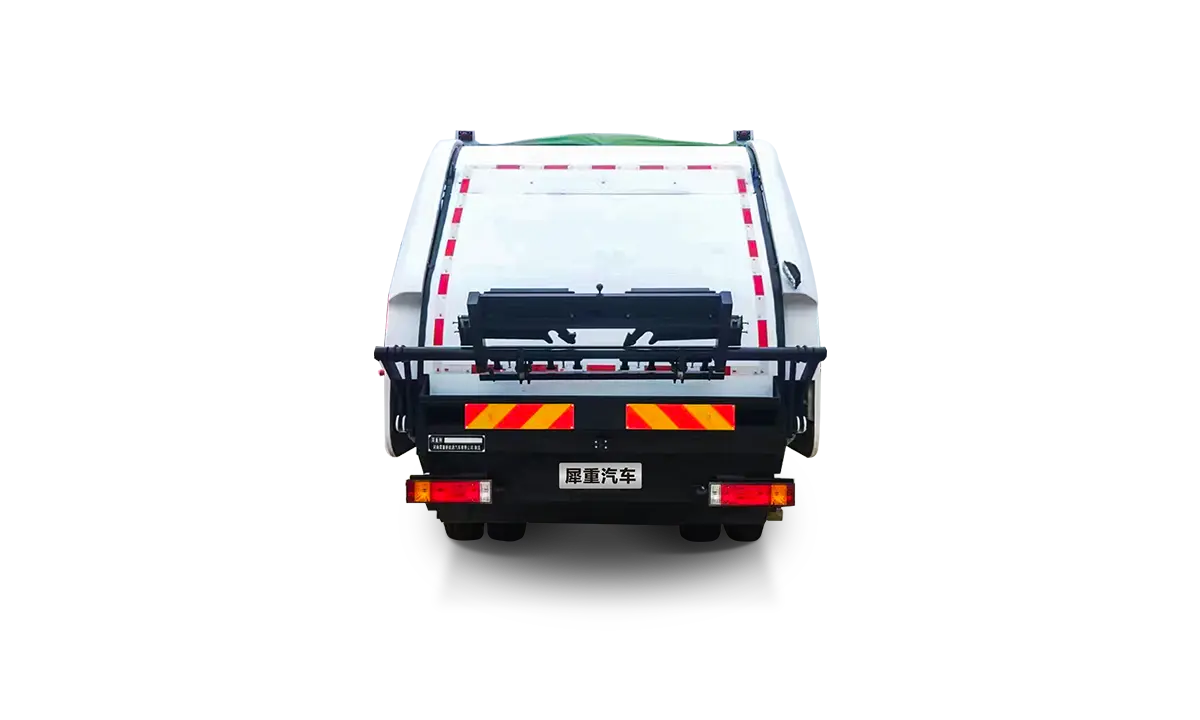

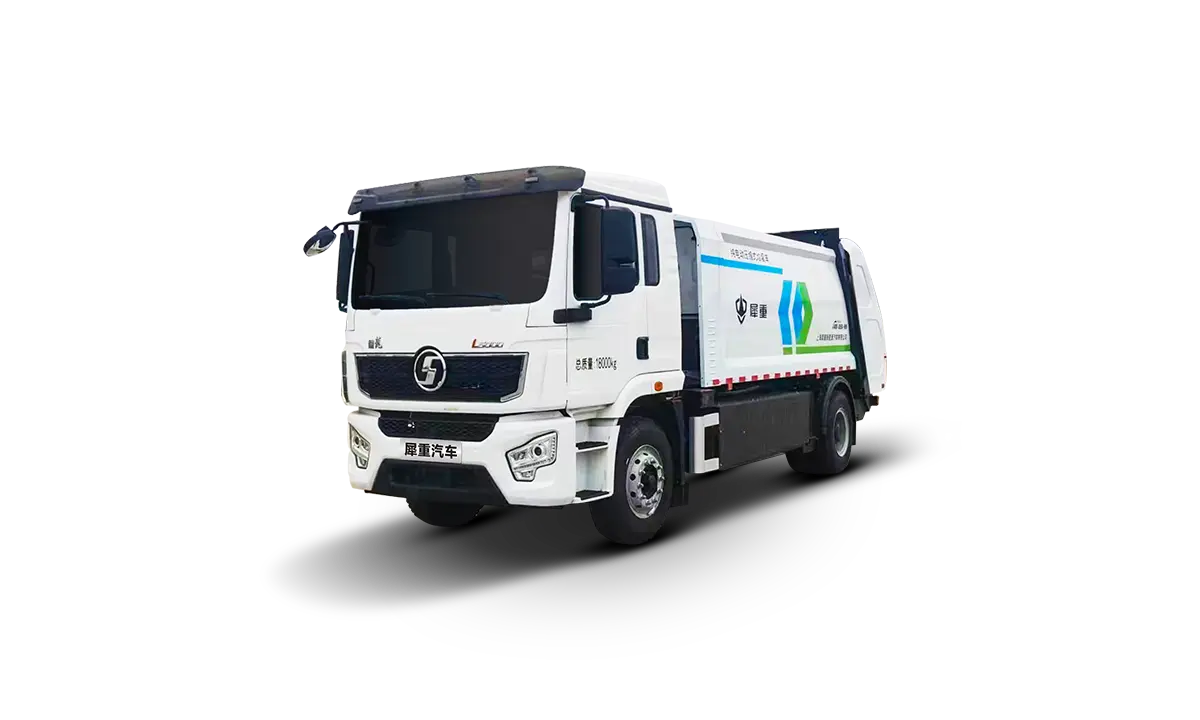

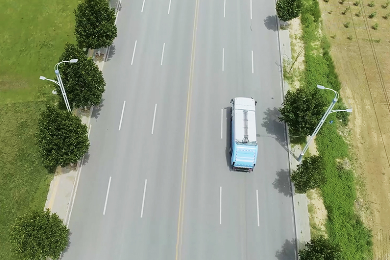

The compression garbage truck has the functions of garbage collection, compression and transfer. It is mainly suitable for the collection and transfer of bucketed, bagged, and bulk domestic garbage in urban residential areas, street communities, large factories and mines, and institutions and schools.
Effective volume of the container (m³)
Unloading cycle time (s)
Compression cycle time (s)
With an ultra-large container, it adopts two-way compression technology, with strong compression capacity, and can accommodate more domestic waste.
With the volume of the sewage tank far exceeding that of similar products, it has an advantage in compacting wet garbage with high moisture content.

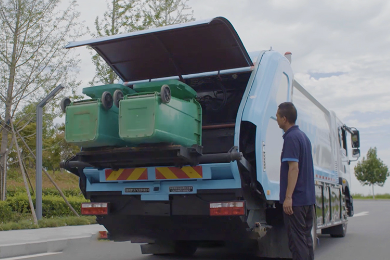

It uses double hydraulic pumps, allowing both the compression and feeding cycles to work simultaneously without interference to each other, resulting in a high feeding efficiency.

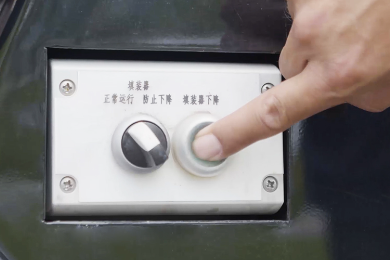

The vehicle is equipped with multiple safety features, including feeding voice prompts, emergency stop devices, circuit interlock, safety bars, and compactor up and down voice functions, ensuring the safety of operators.
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 120/200 |
| Motor rated/peak torque (N·m) | 1000/2400 |
| Battery brand/capacity (kWh) | Dongfeng/CATL:200.54, 255.48/Dongfeng/EVE:198.45, 242.88/Shaanxi Automobile/CATL:210.56 |
| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | Dongfeng:8615(tipping bin), 8405(tipping hopper)×2500×3050; Shaanxi Automobile：8895×2550×3030 |
| Maximum/curb weight (kg) | Dongfeng:18000/11000 (tipping bin) , 11140 (tipping hopper) ; Shaanxi Automobile：18000/11240 |

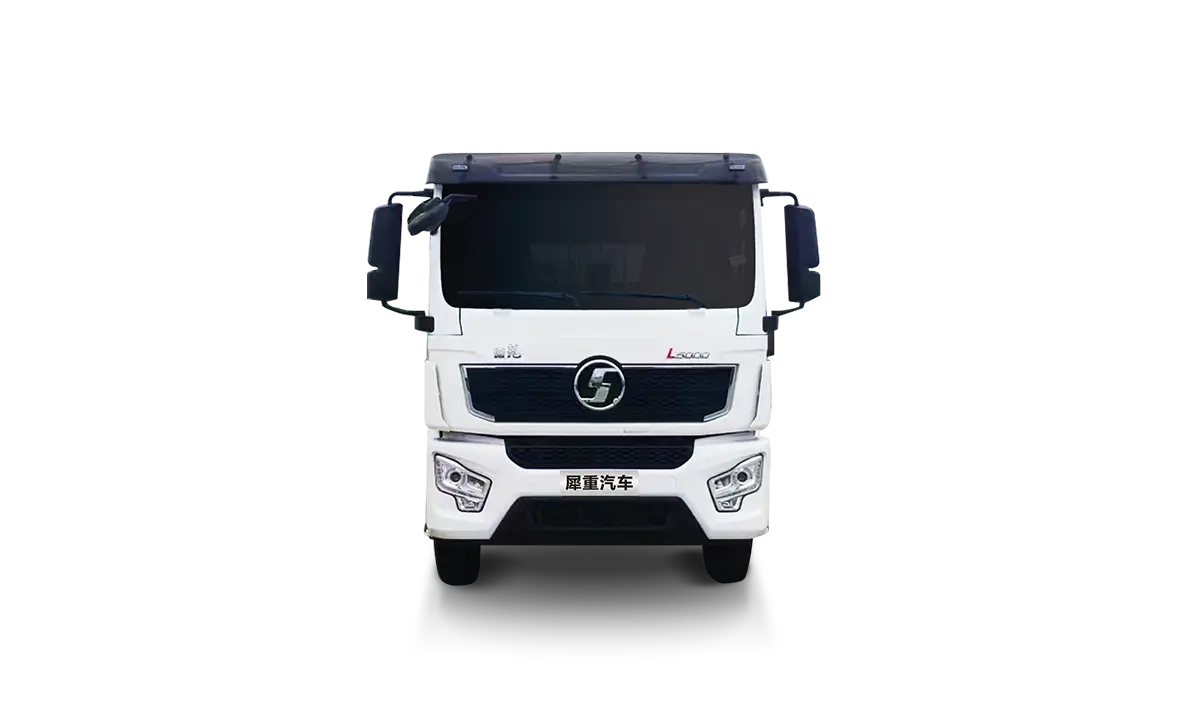

| Chassis brand | Dongfeng/Shaanxi Automobile |
| Operating ability | |
|---|---|
| Effective volume of the container (m³) | 13 |
| Unloading cycle time (s) | ≤55 |
| Compression cycle time (s) | ≤20 |
| Feeding cycle time (s) | ≤10 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | Dongfeng/CATL：280/385(equivalent speed method); Dongfeng/EVE：280/365(equivalent speed method); Shaanxi Automobile/CATL：210(equivalent speed method) |
